Power Door Lock System
>>
10A Automatic (Rolling) Door Locks
10A Automatic (Rolling) Door Locks
Related Images:

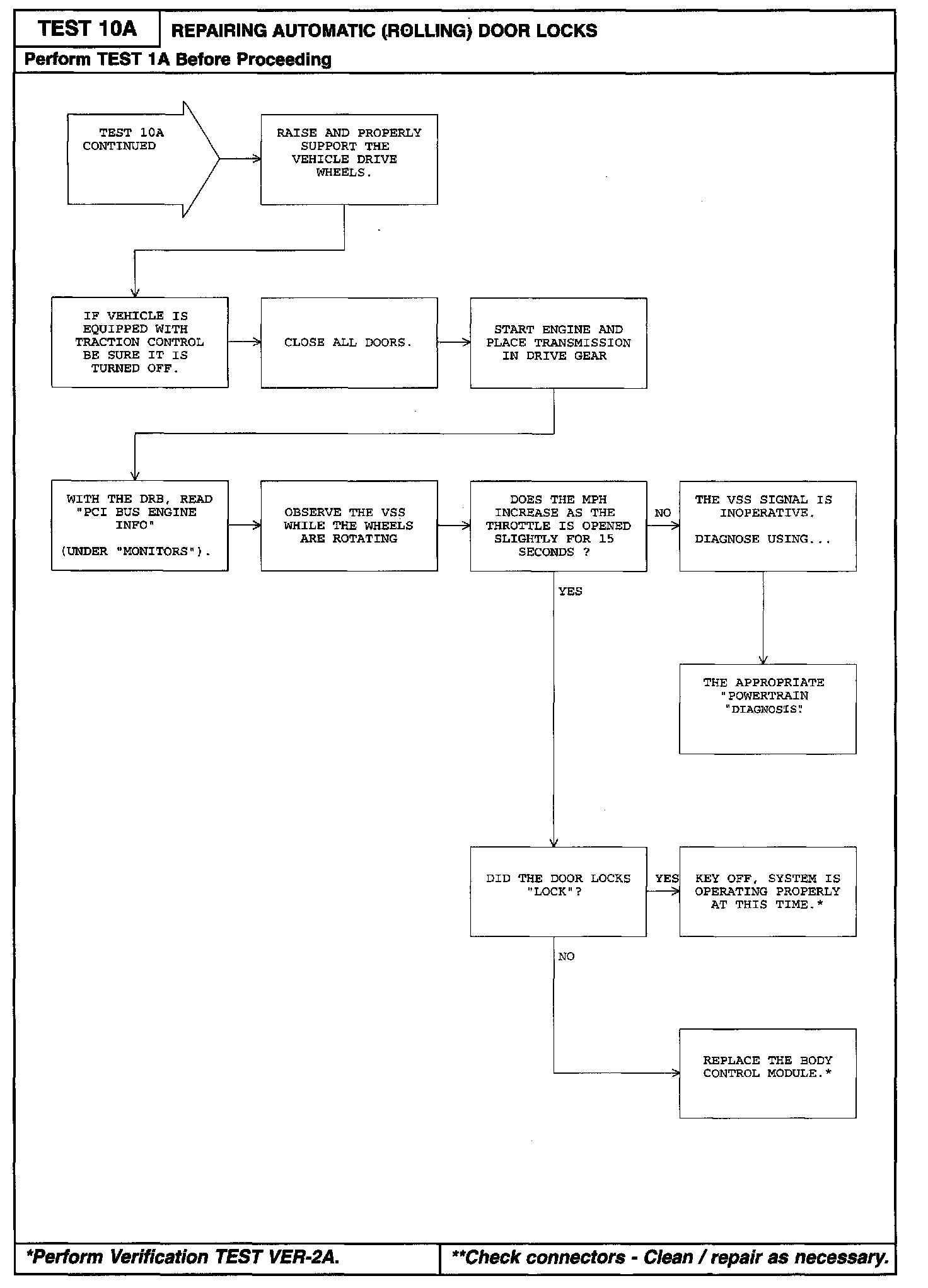

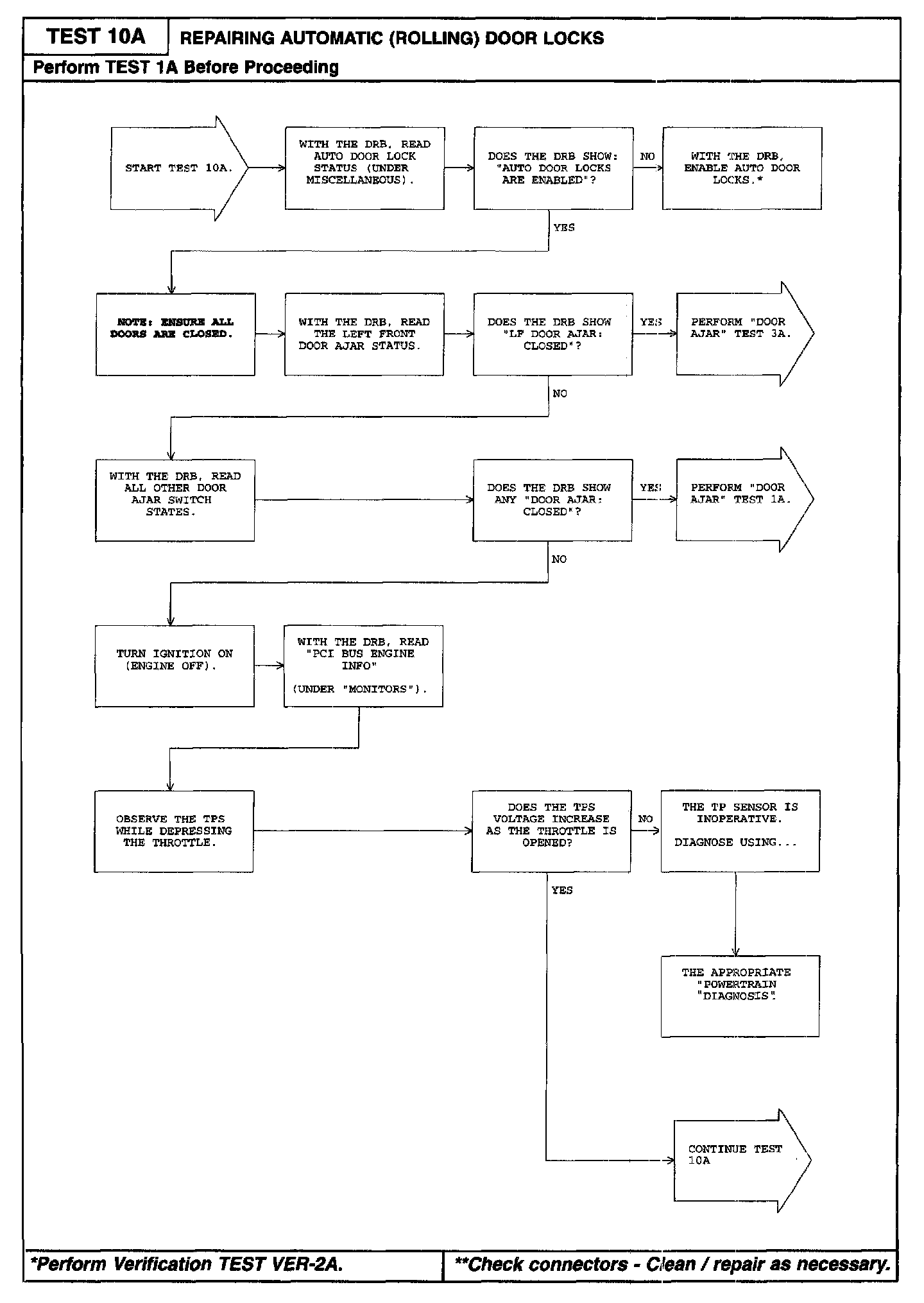

Diagnostic Chart:
