29A Right Seat Heat Output Shorted to Ground Trouble Code
29A Right Seat Heat Output Shorted to Ground Trouble Code
Related Images:

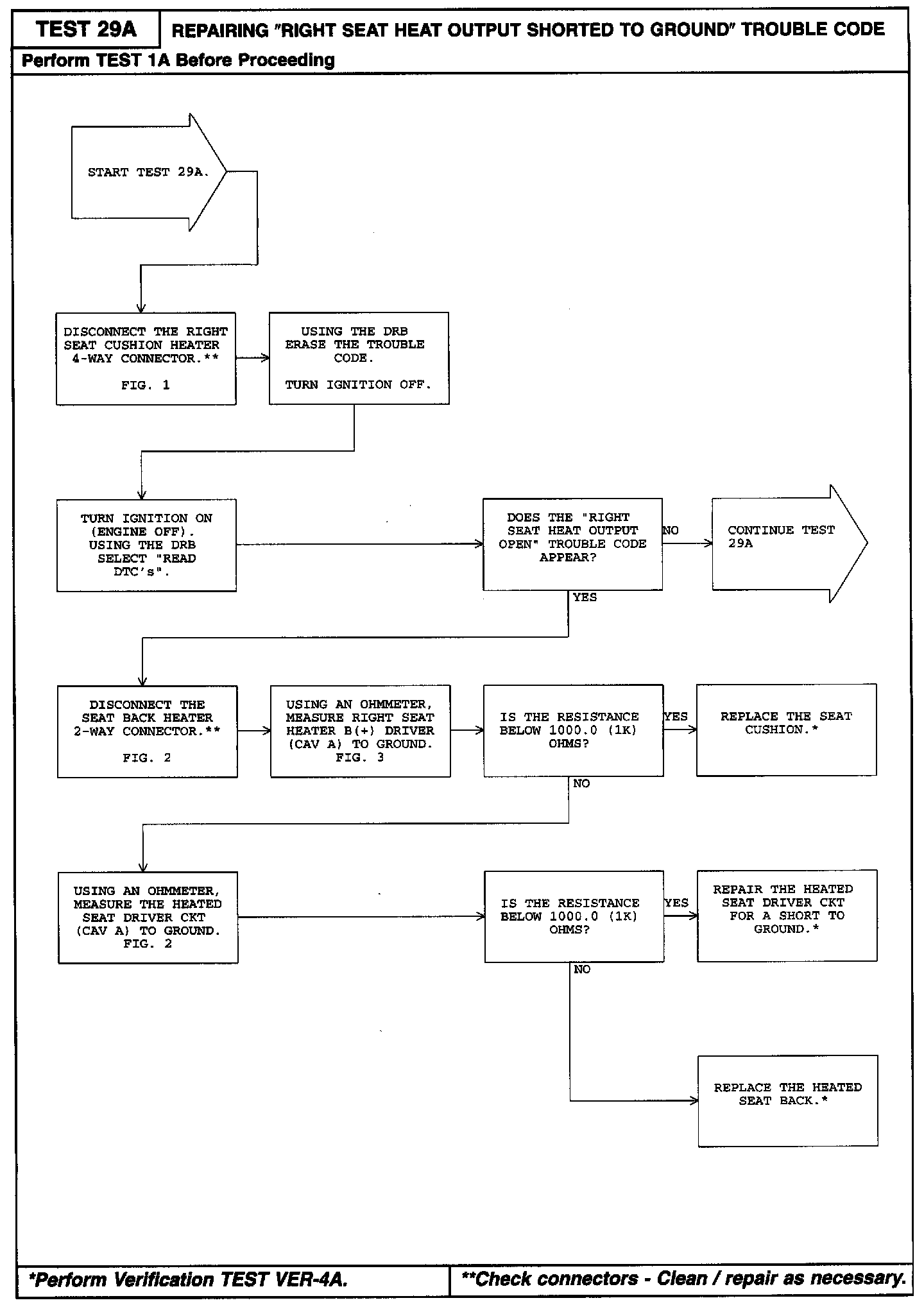

Diagnostic Chart:
Related Images:

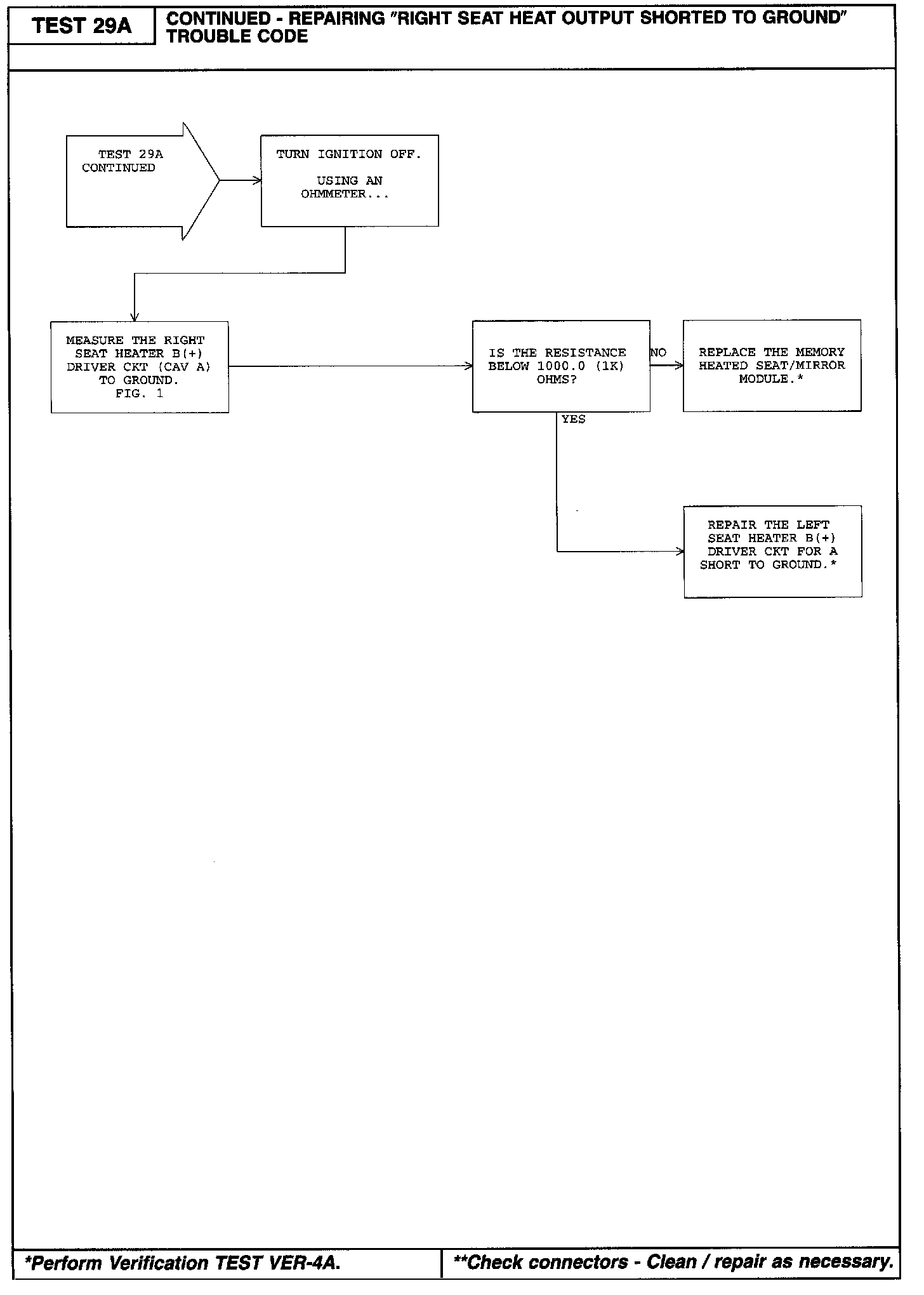

Diagnostic Chart:
