Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Memory System >> 16A Recliner Sensor Out of Range Low Trouble Code

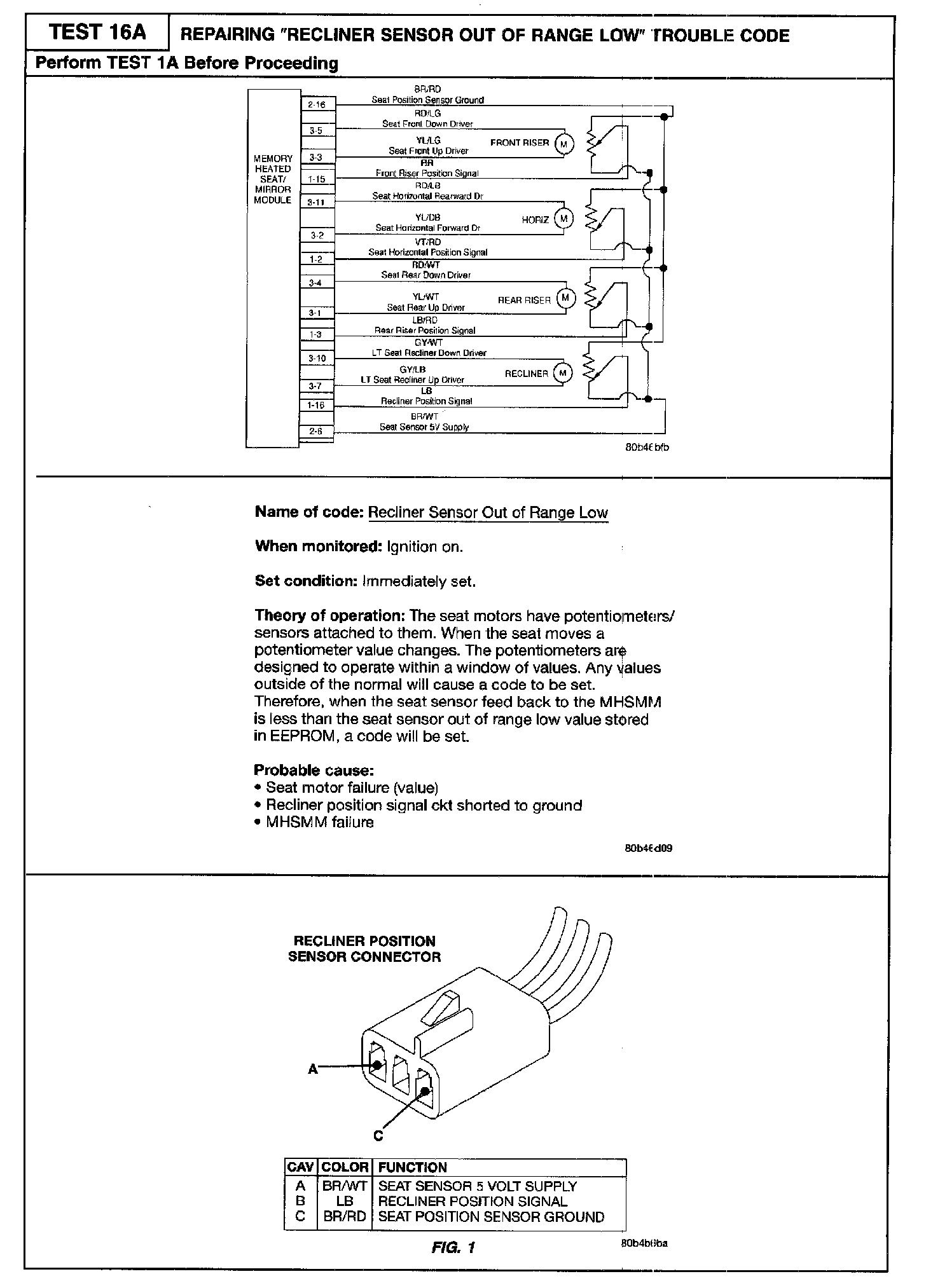

16A Recliner Sensor Out of Range Low Trouble Code

Related Images:

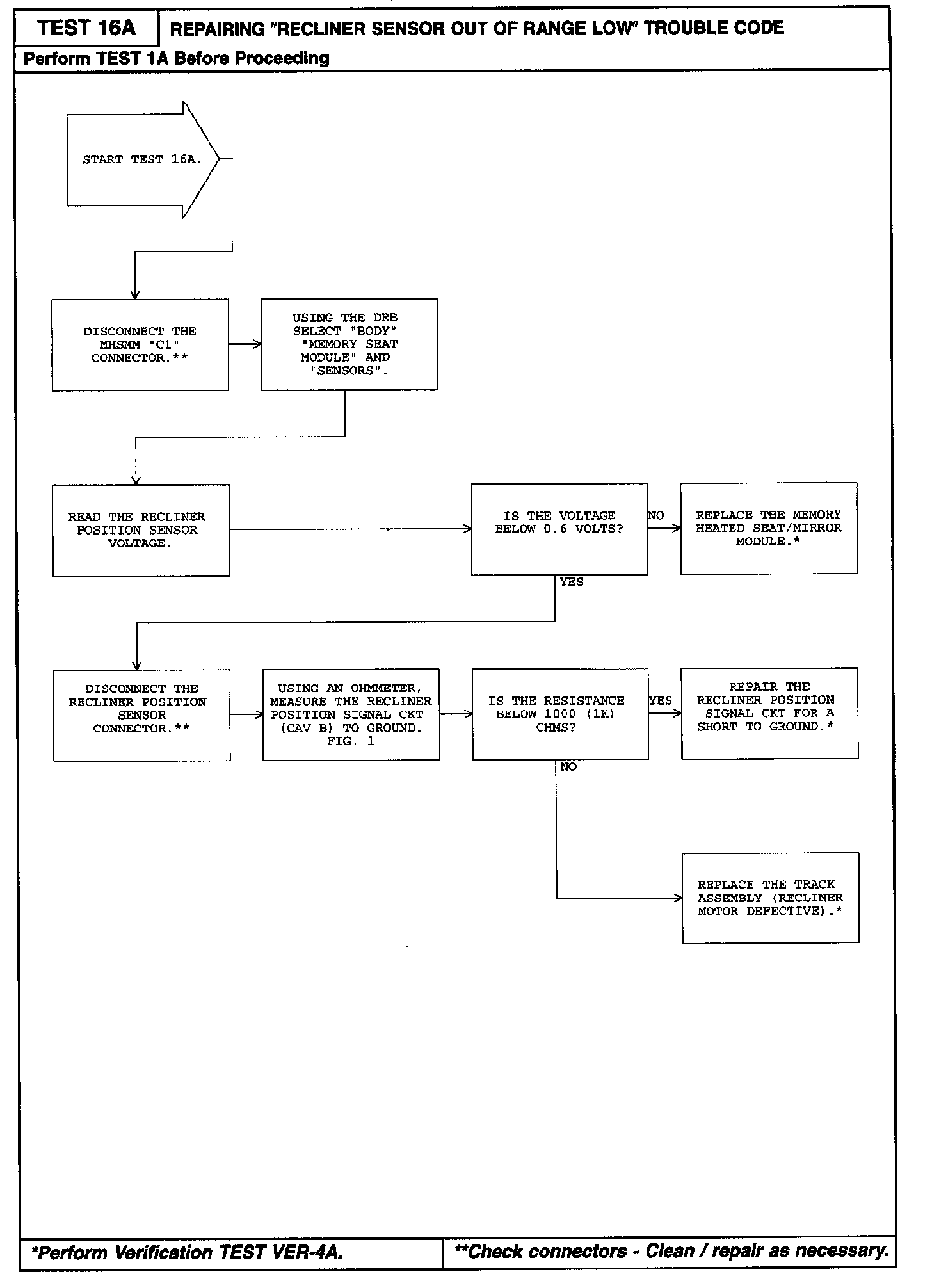

Diagnostic Chart:
