Chrysler
>>
1999
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Interior Lighting System
>>

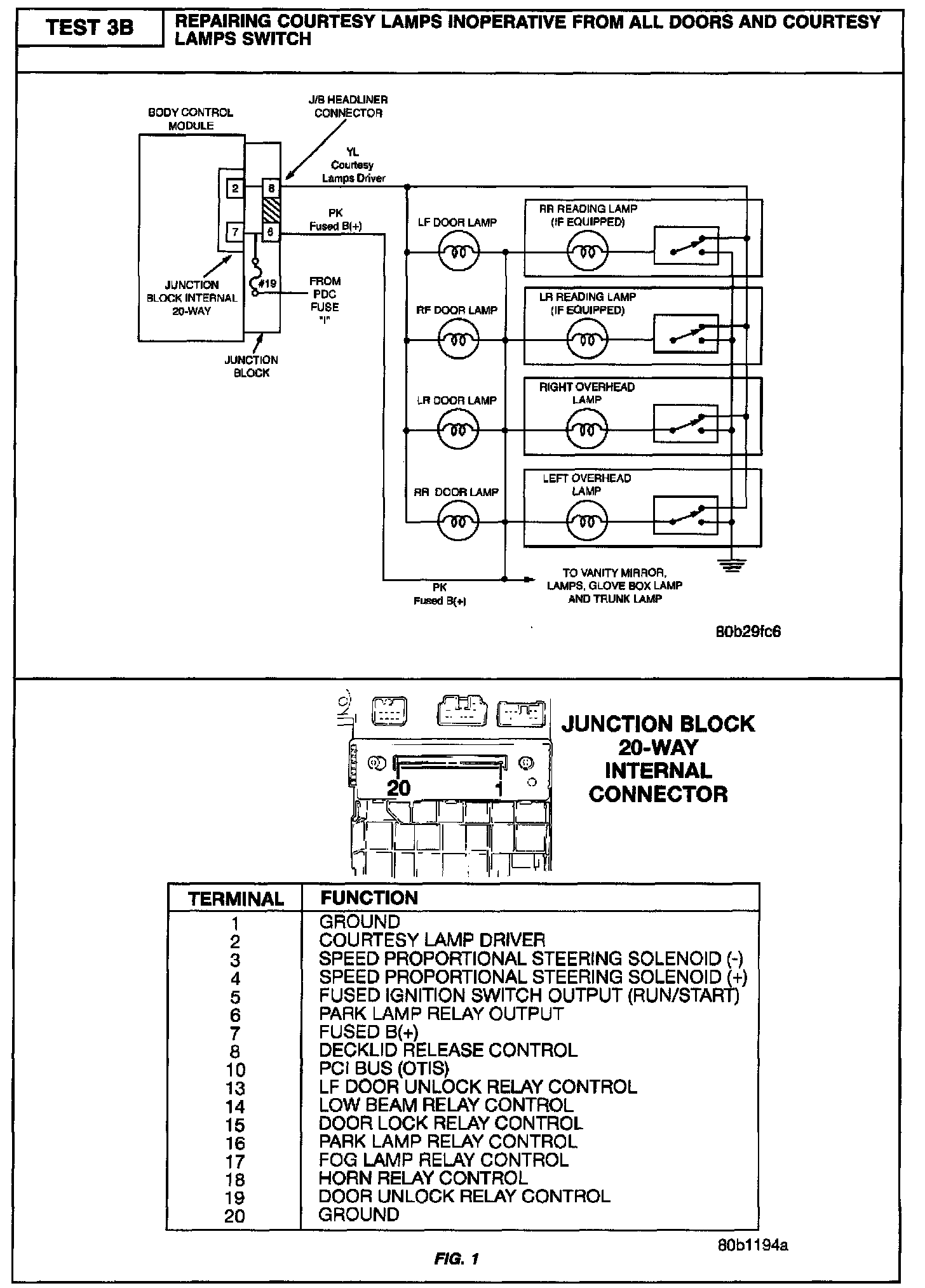

3B Courtesy Lamps Inop From All Doors and Courtesy Lamp Switch
3B Courtesy Lamps Inop From All Doors and Courtesy Lamp Switch
Related Images:

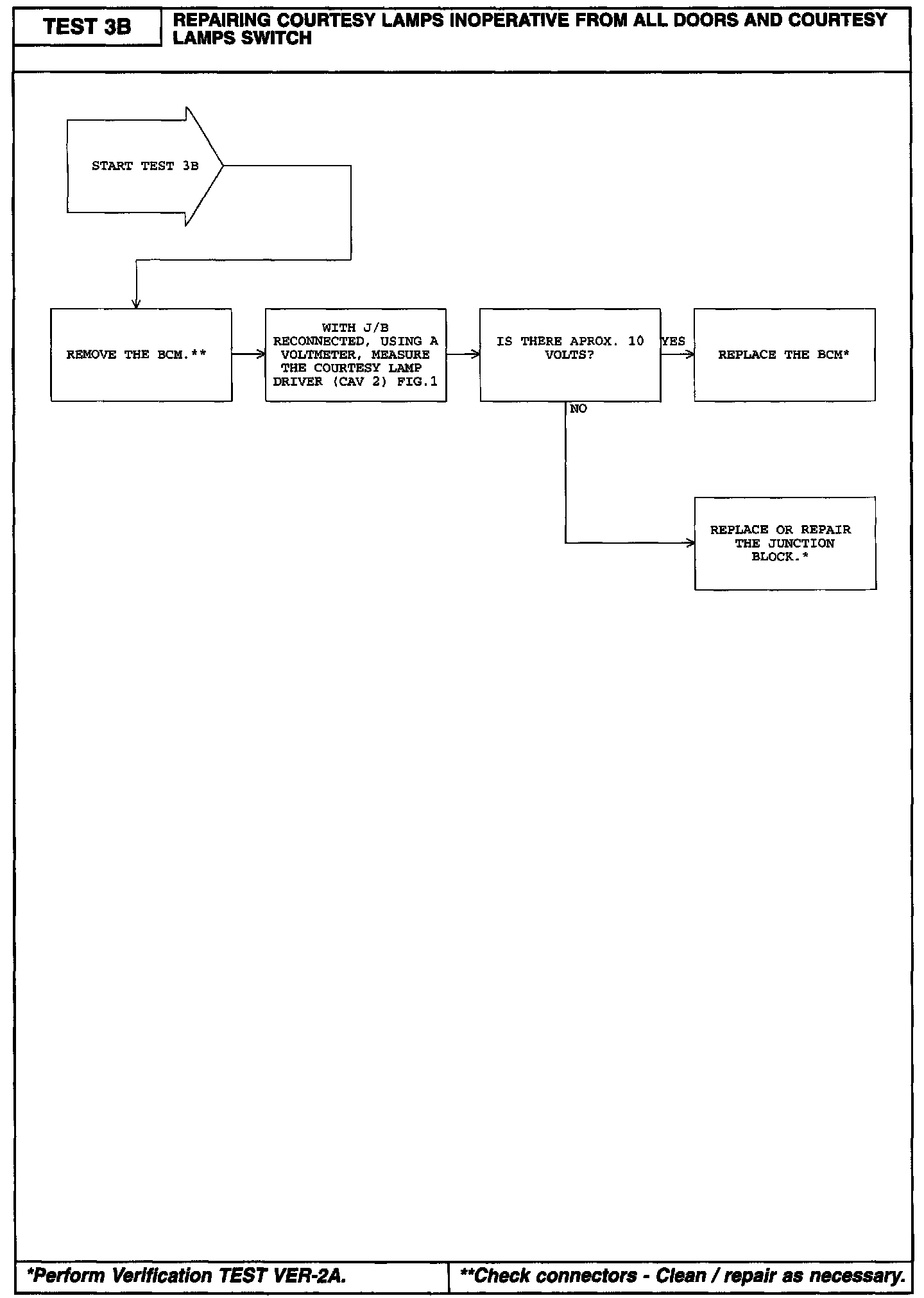

Diagnostic Chart:
