A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Interior Lighting System
>>

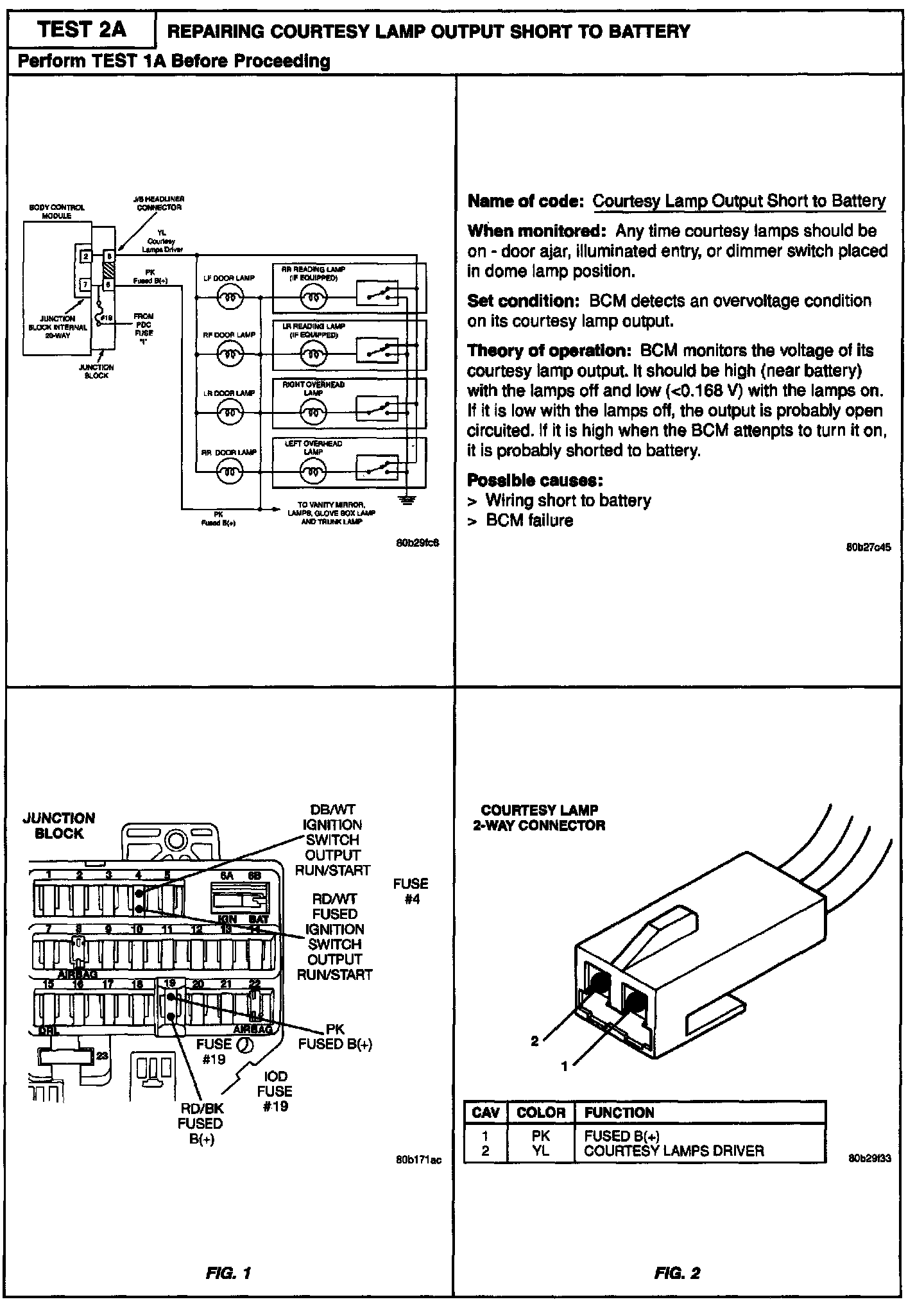

2A Courtesy Lamp Output Short to Battery
2A Courtesy Lamp Output Short to Battery
Related Images:

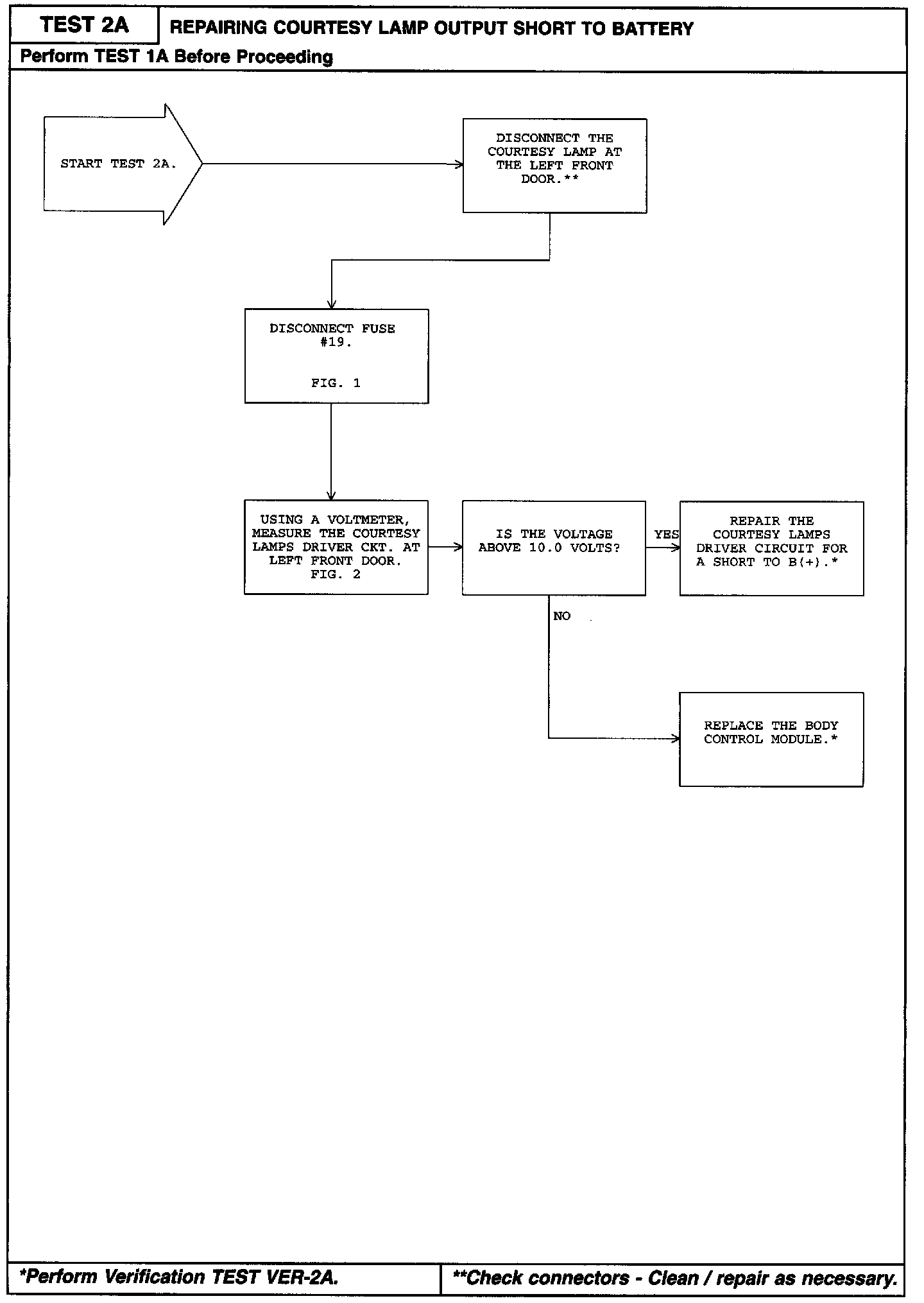

Diagnostic Chart:
