Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Interior Lighting System
>>

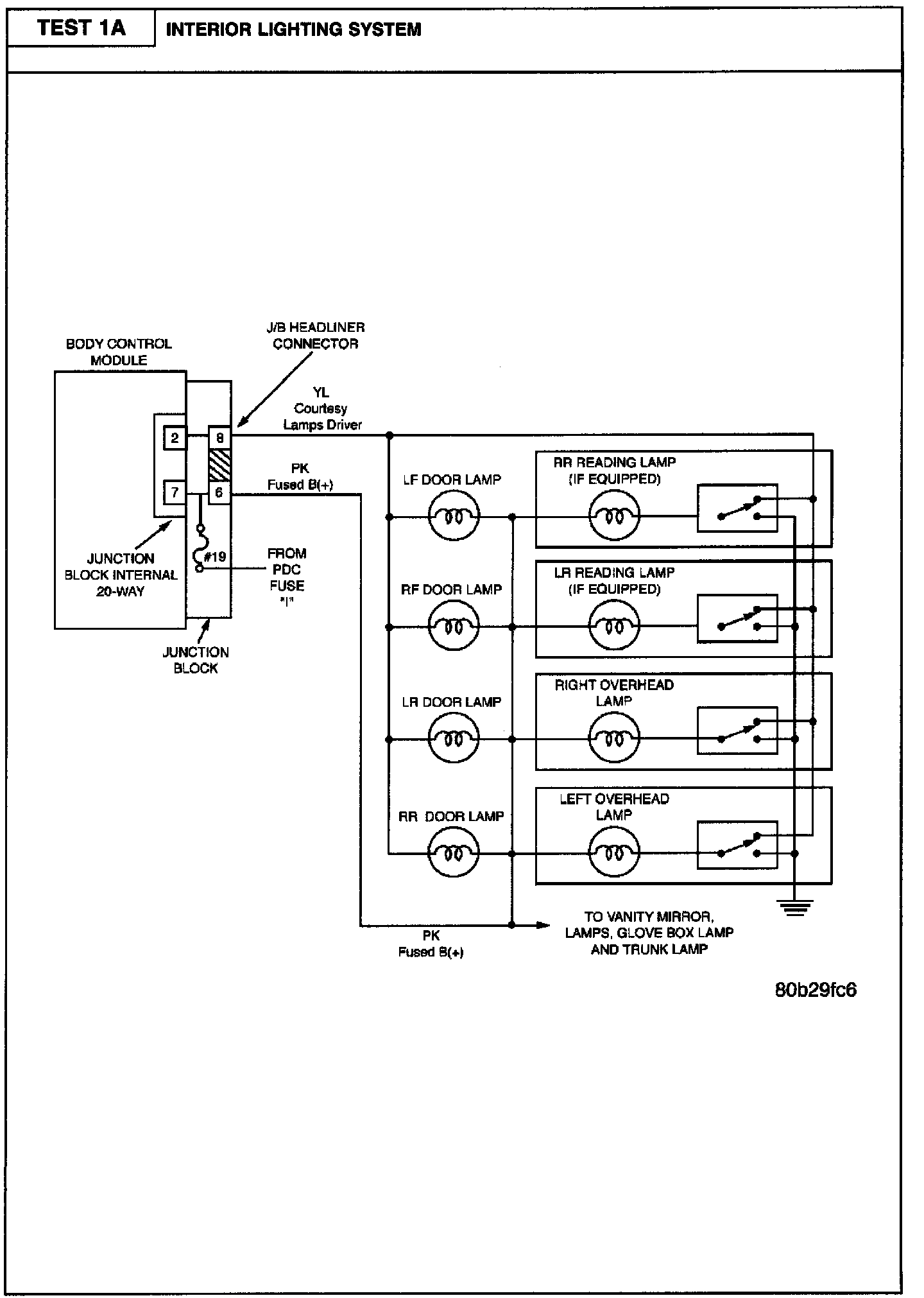

1A Interior Lighting System
1A Interior Lighting System
Related Images:

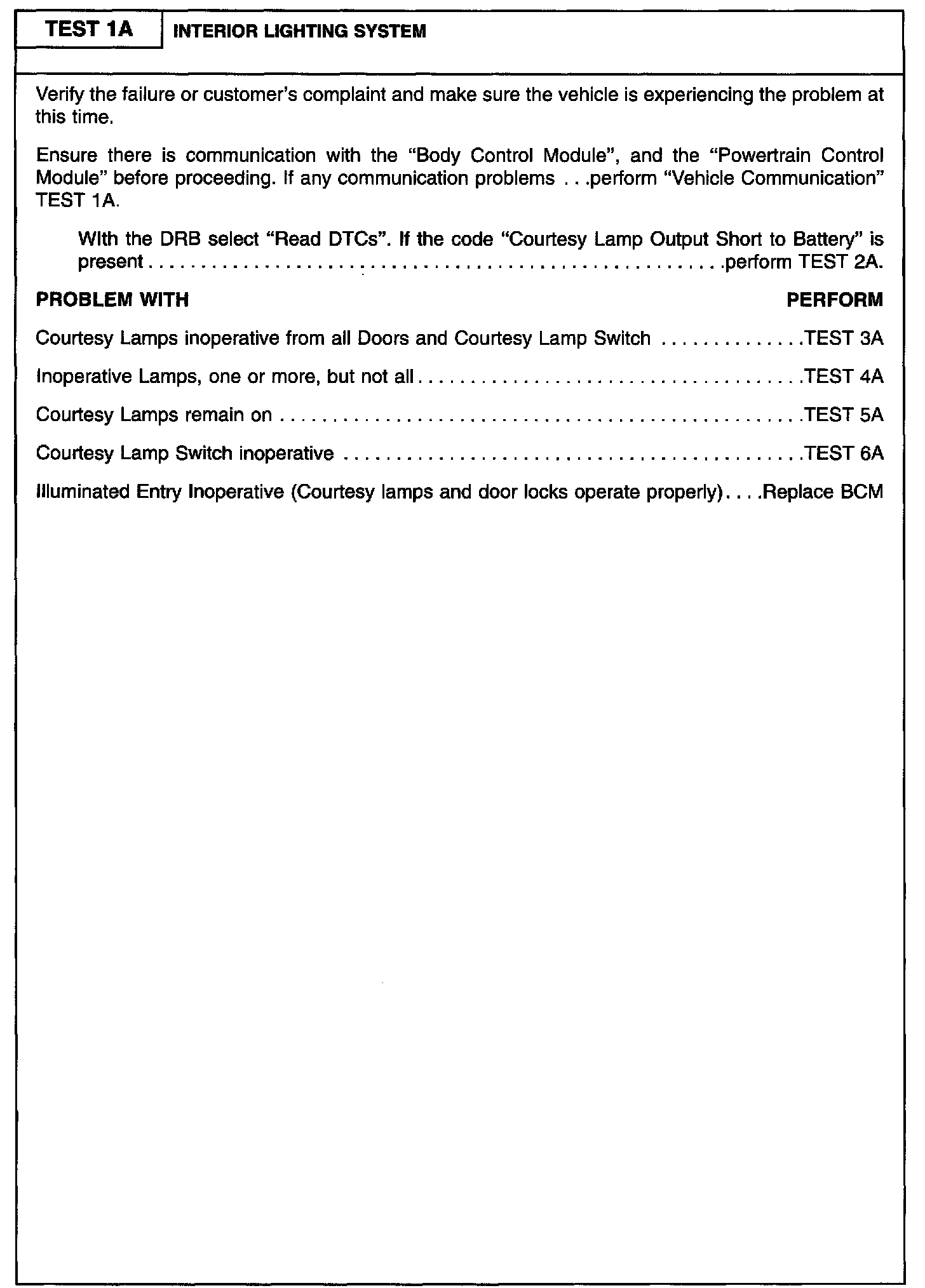

Diagnostic Chart:
