Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Instrument Cluster
>>
20A Trunk Ajar Indicator Circuit
20A Trunk Ajar Indicator Circuit
Related Images:

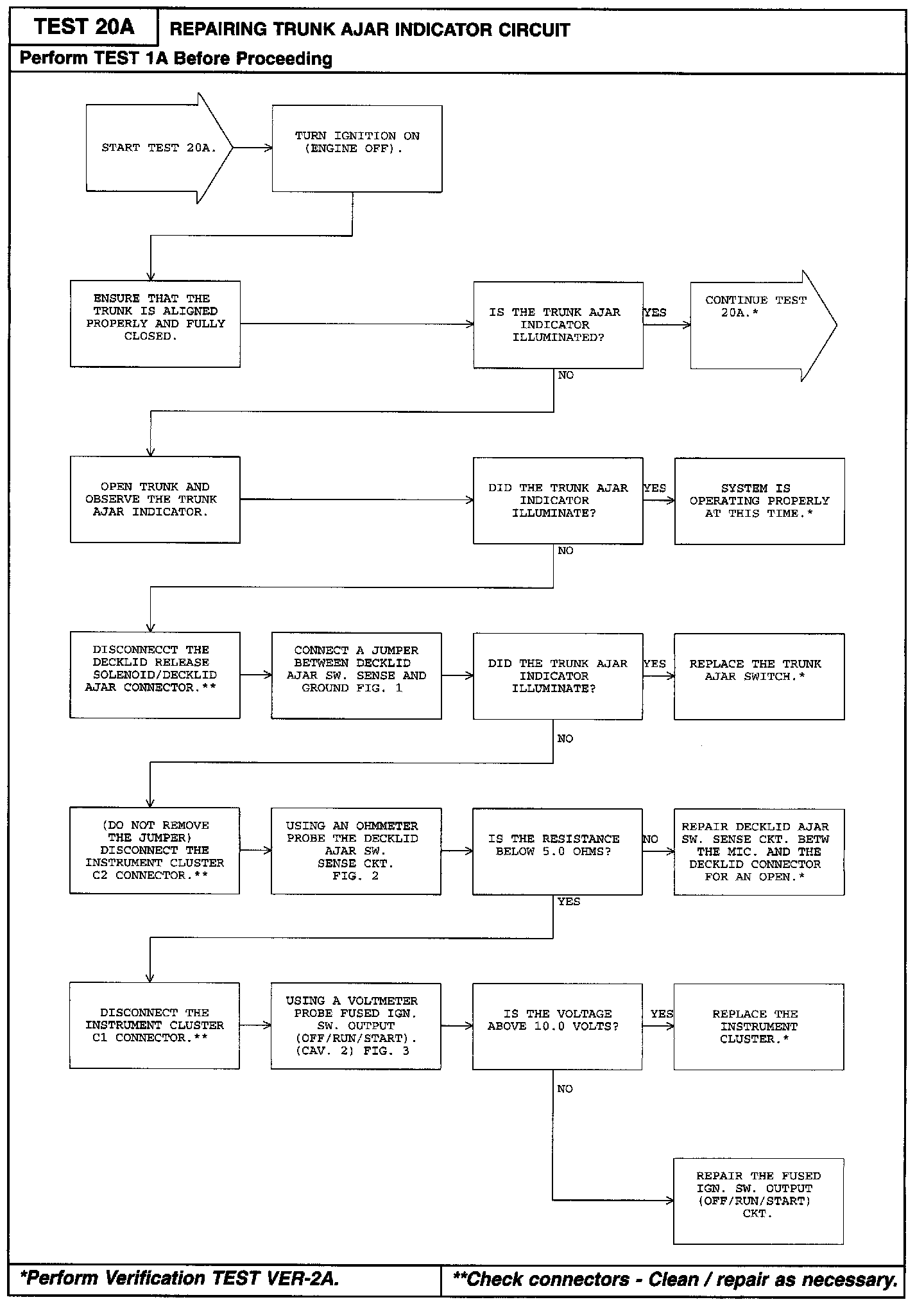

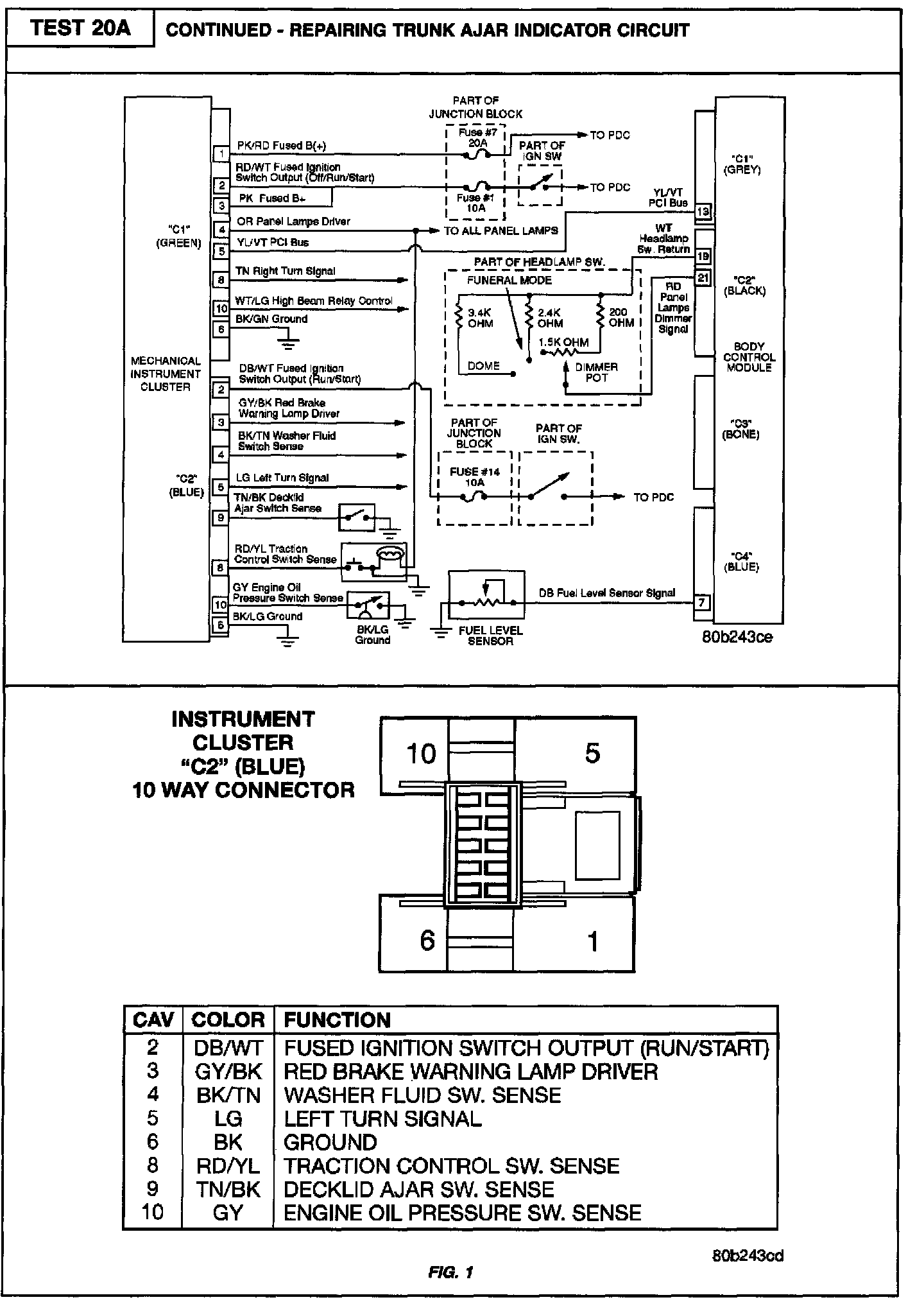

Diagnostic Chart:
Related Images:

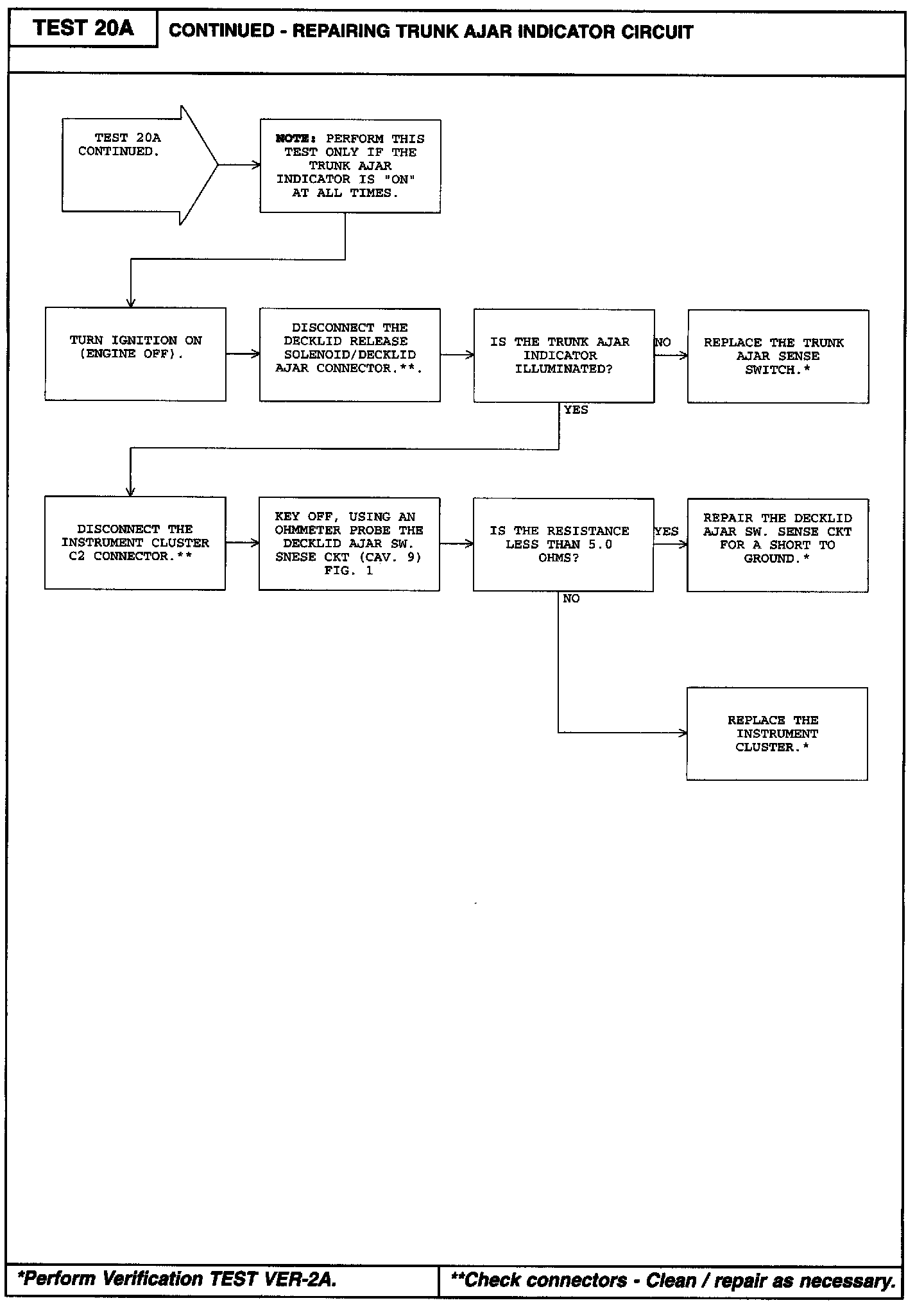

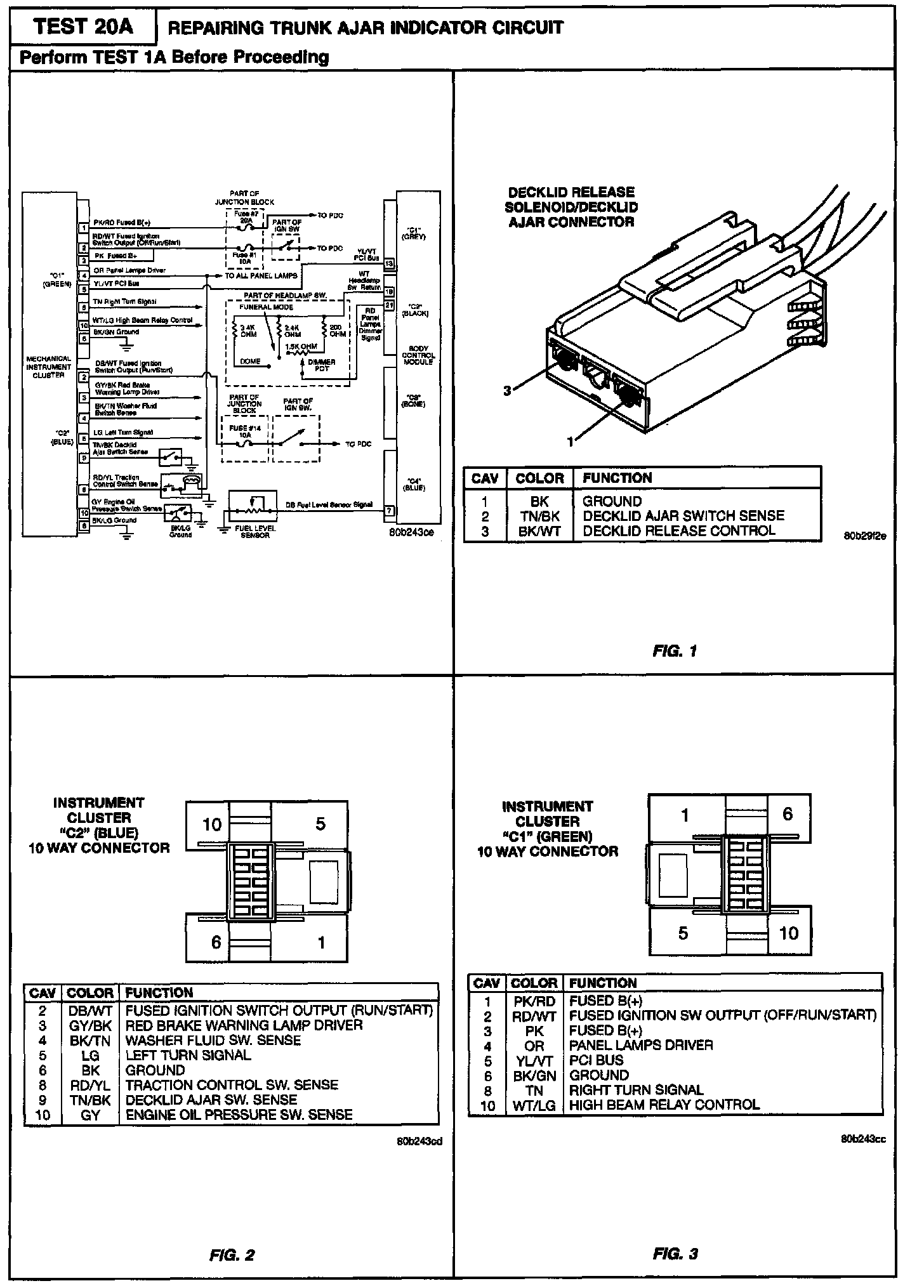

Diagnostic Chart:
