A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Instrument Cluster
>>

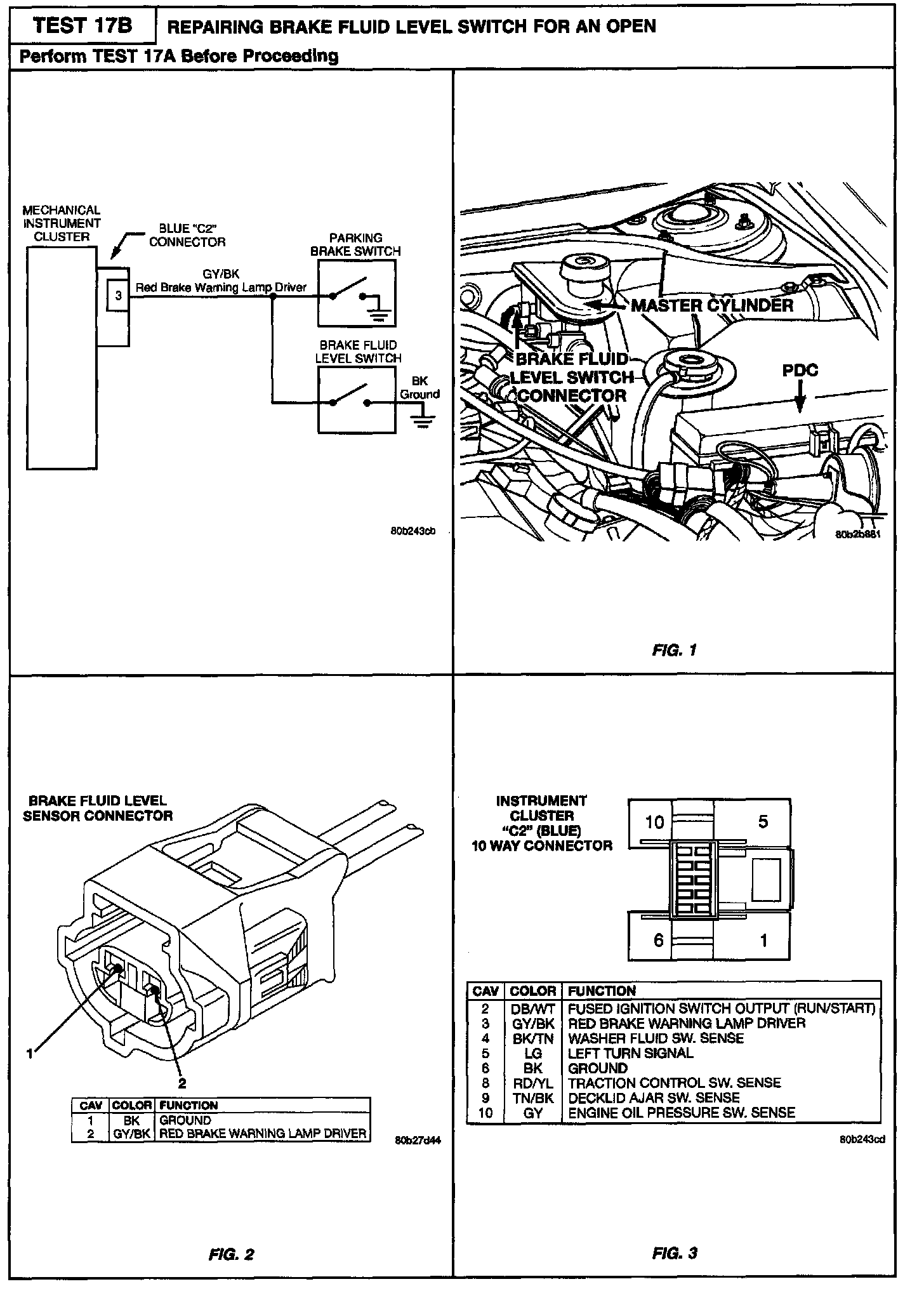

17B Brake Fluid Level Switch For an Open
17B Brake Fluid Level Switch For an Open
Related Images:

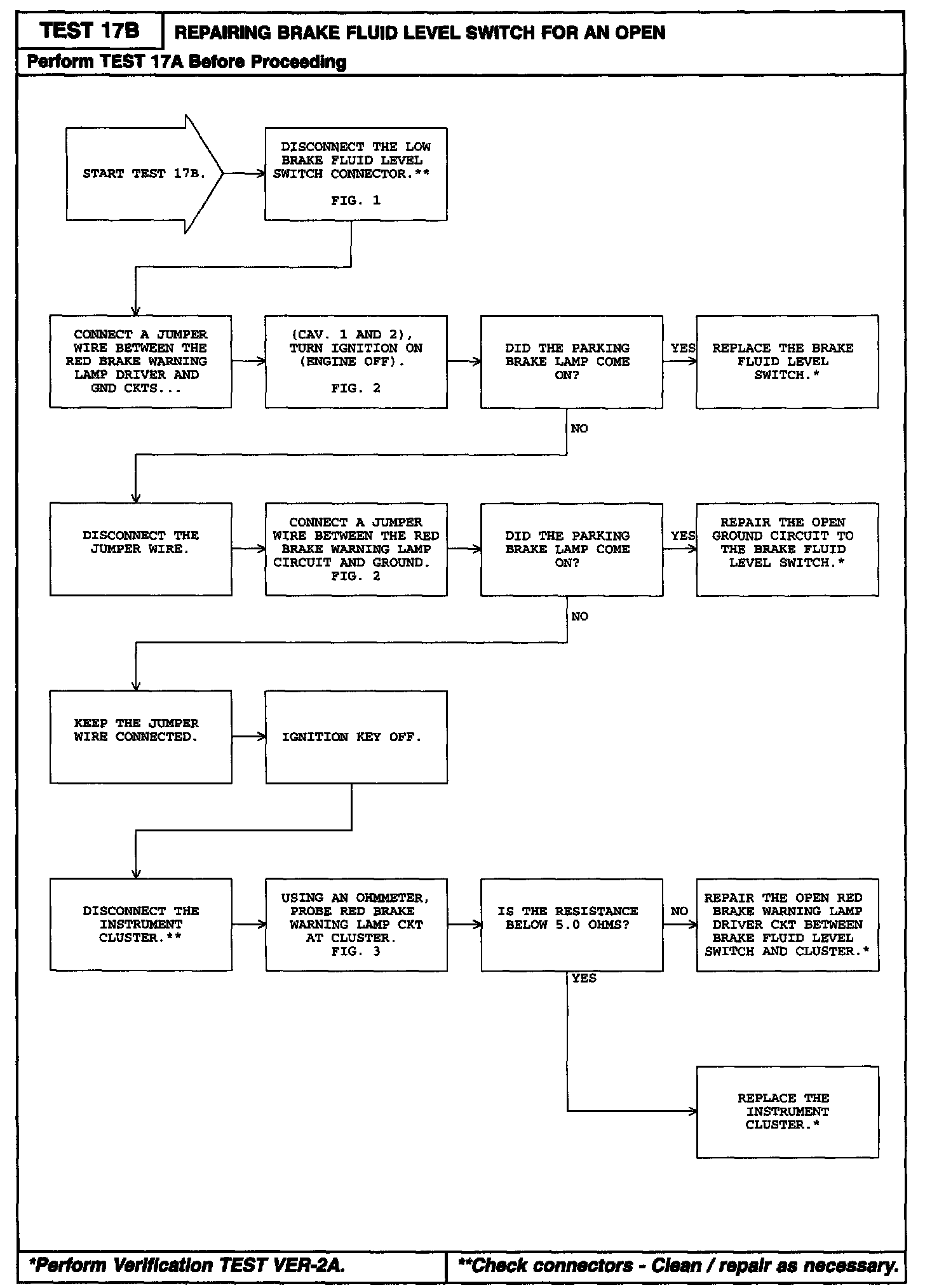

Diagnostic Chart:
