15A Oil Pressure Switch Sense Circuit For A Short to Ground
15A Oil Pressure Switch Sense Circuit For A Short to Ground

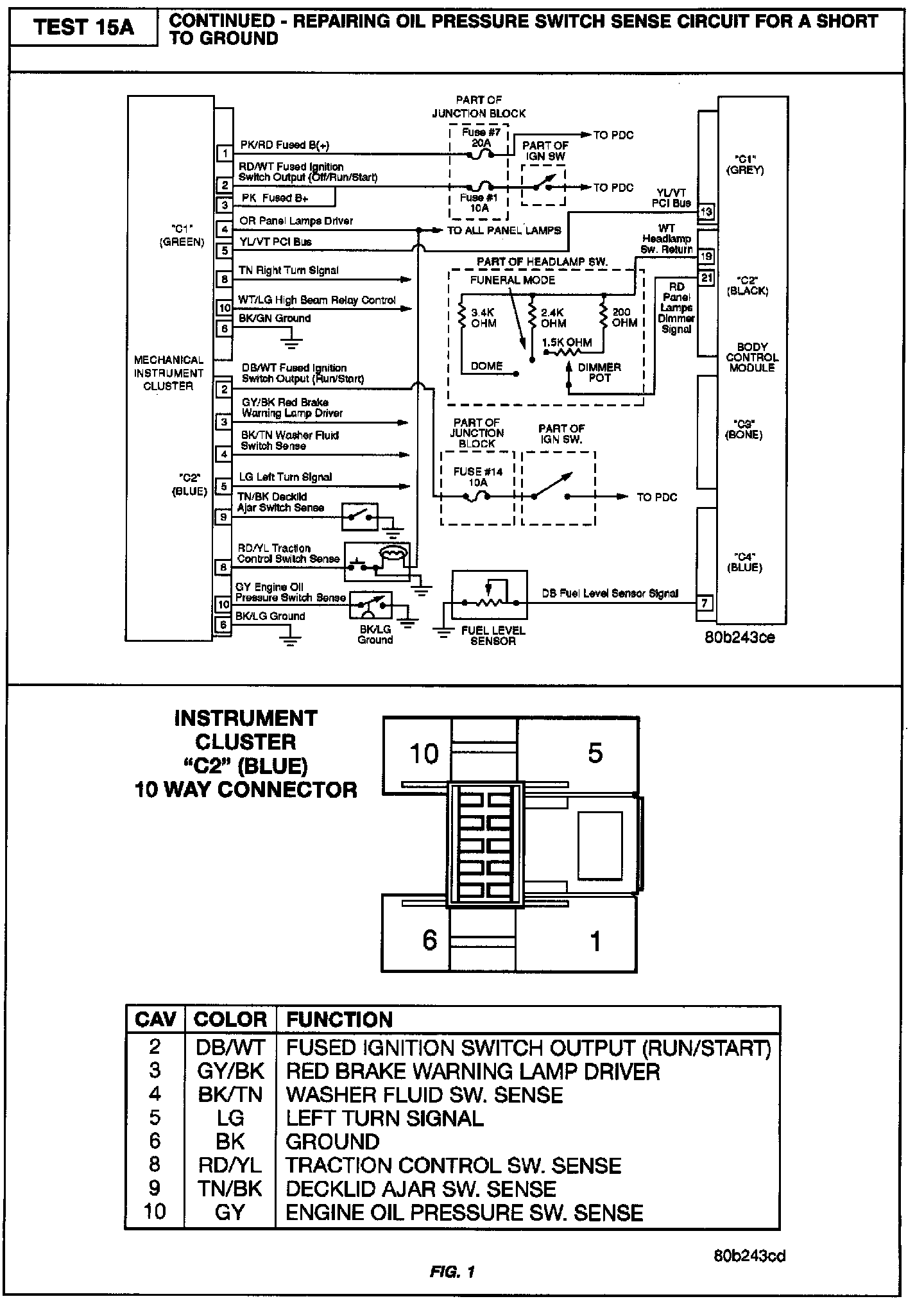

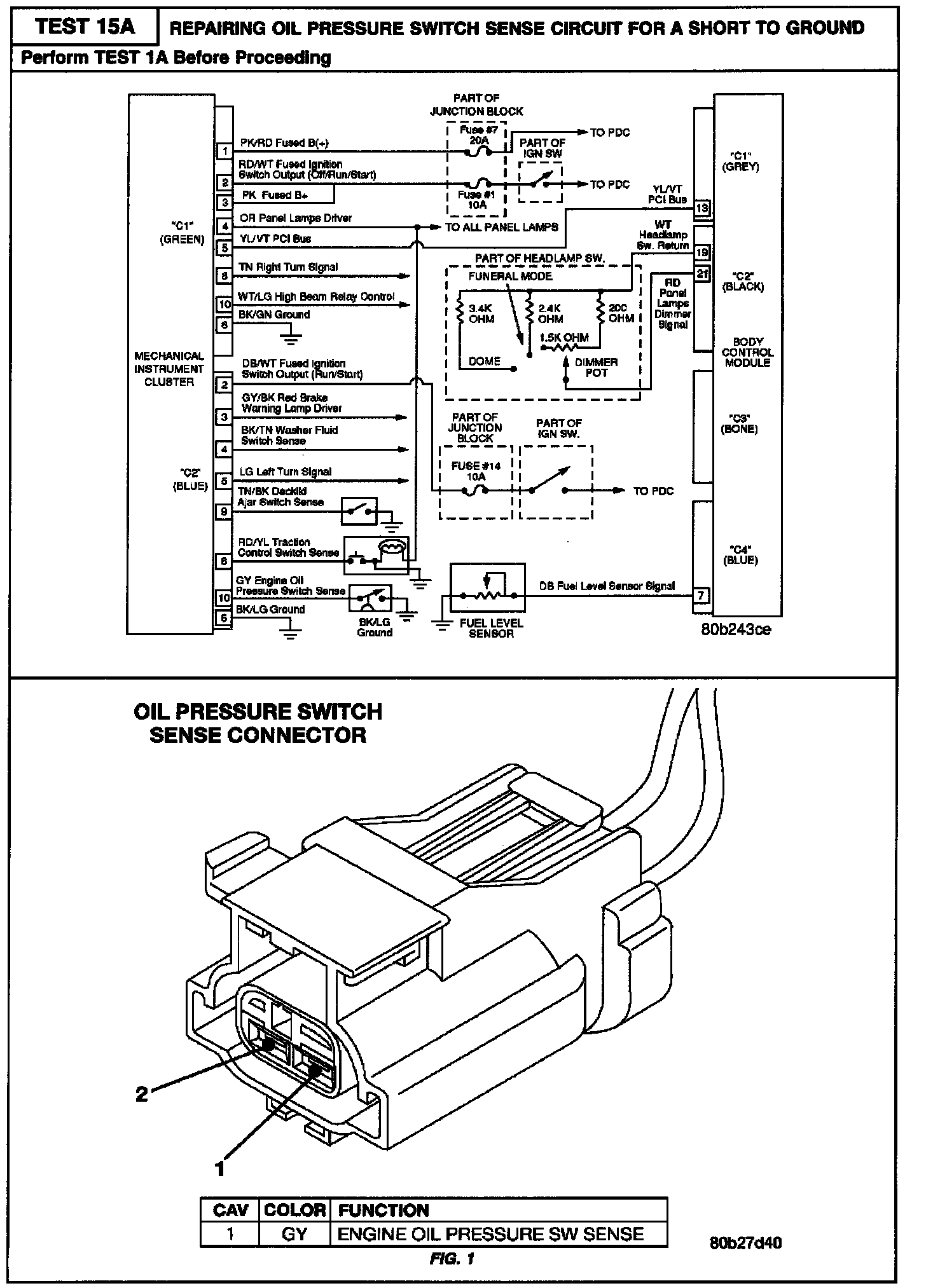

Related Images:

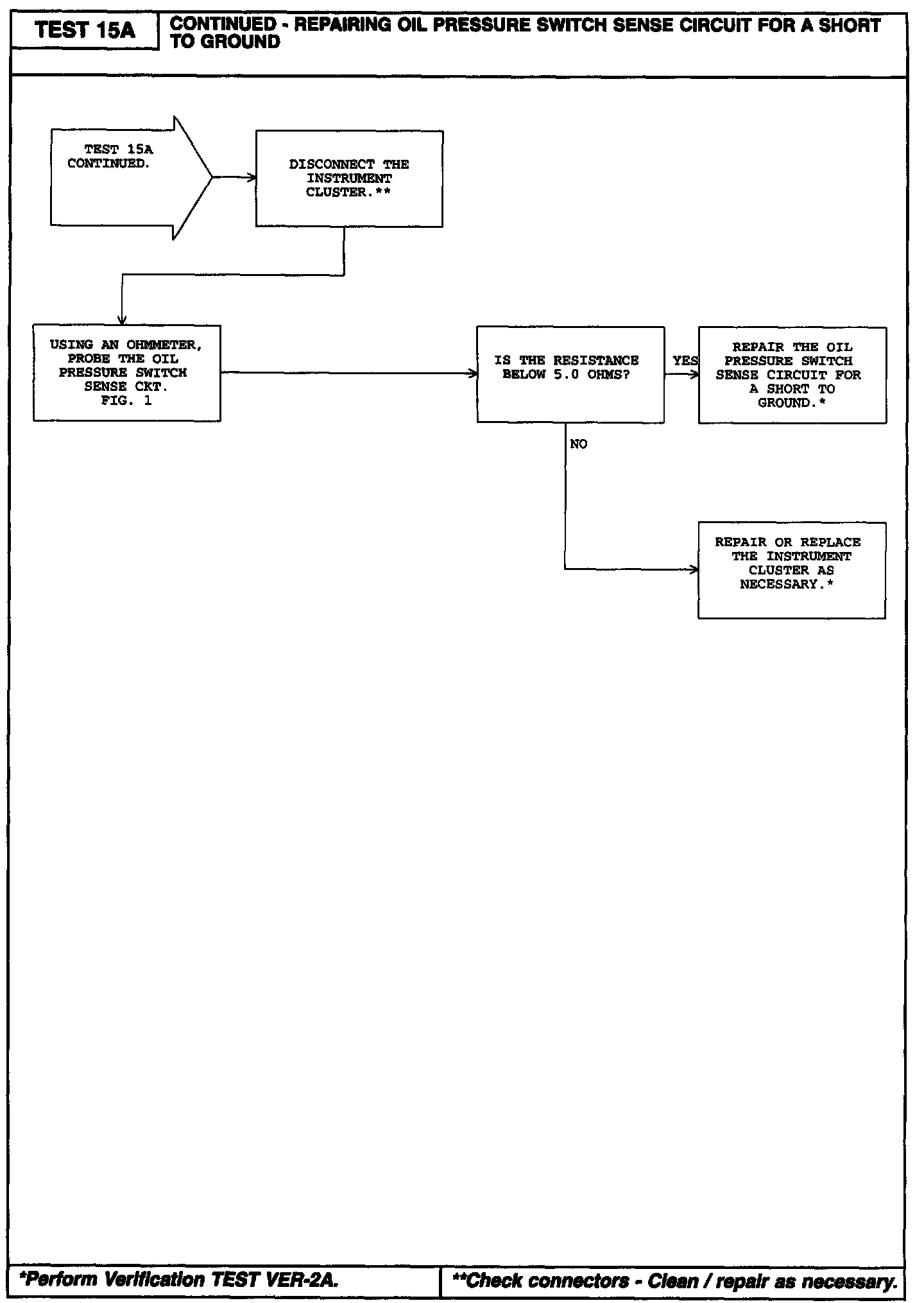

Diagnostic Chart:
Related Images:
Diagnostic Chart:
