Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Heating and Air Conditioning >> Manual HVAC System >> 3A A/C Control EBL Switch Failure Trouble Code

3A A/C Control EBL Switch Failure Trouble Code

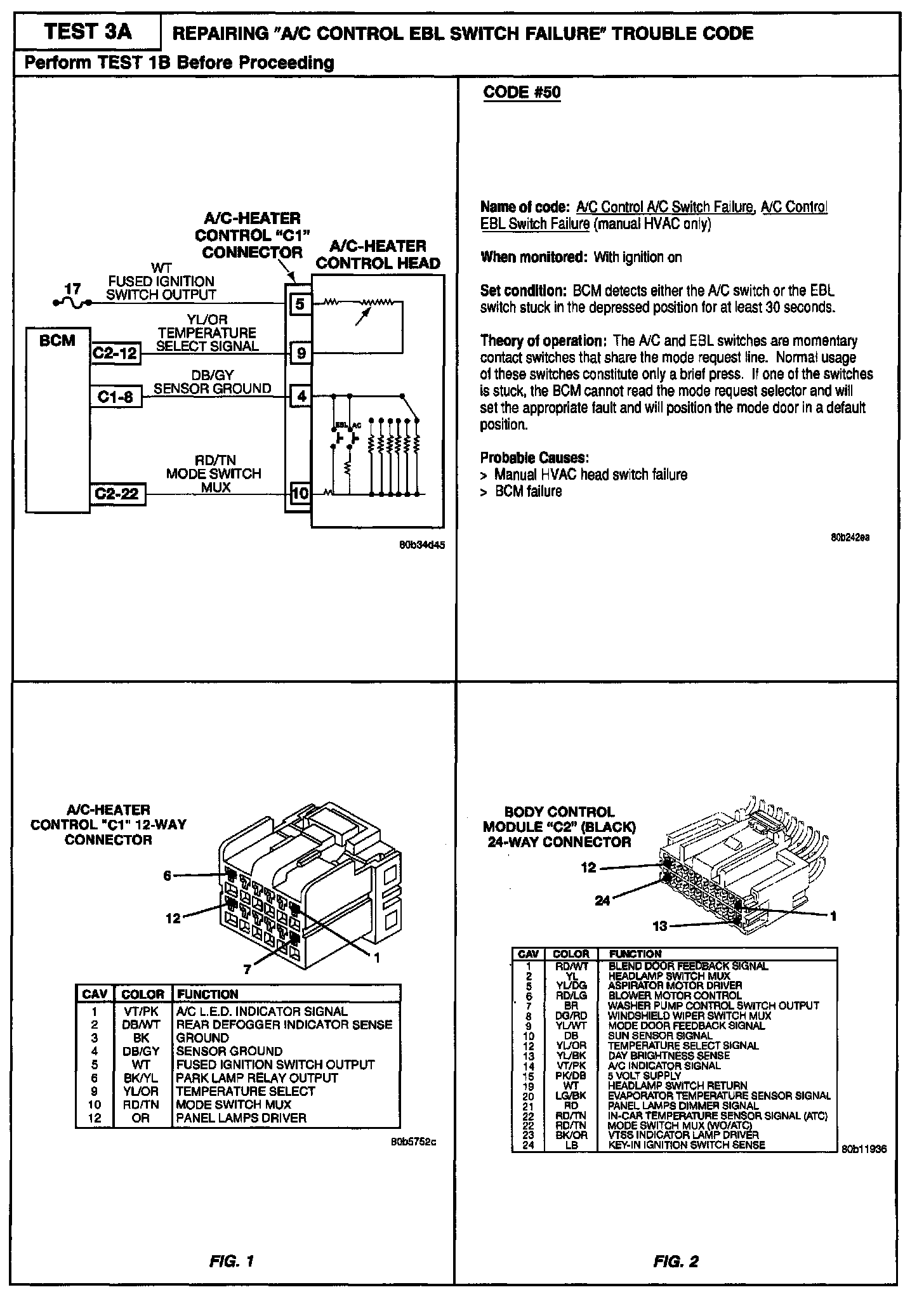

Related Images:

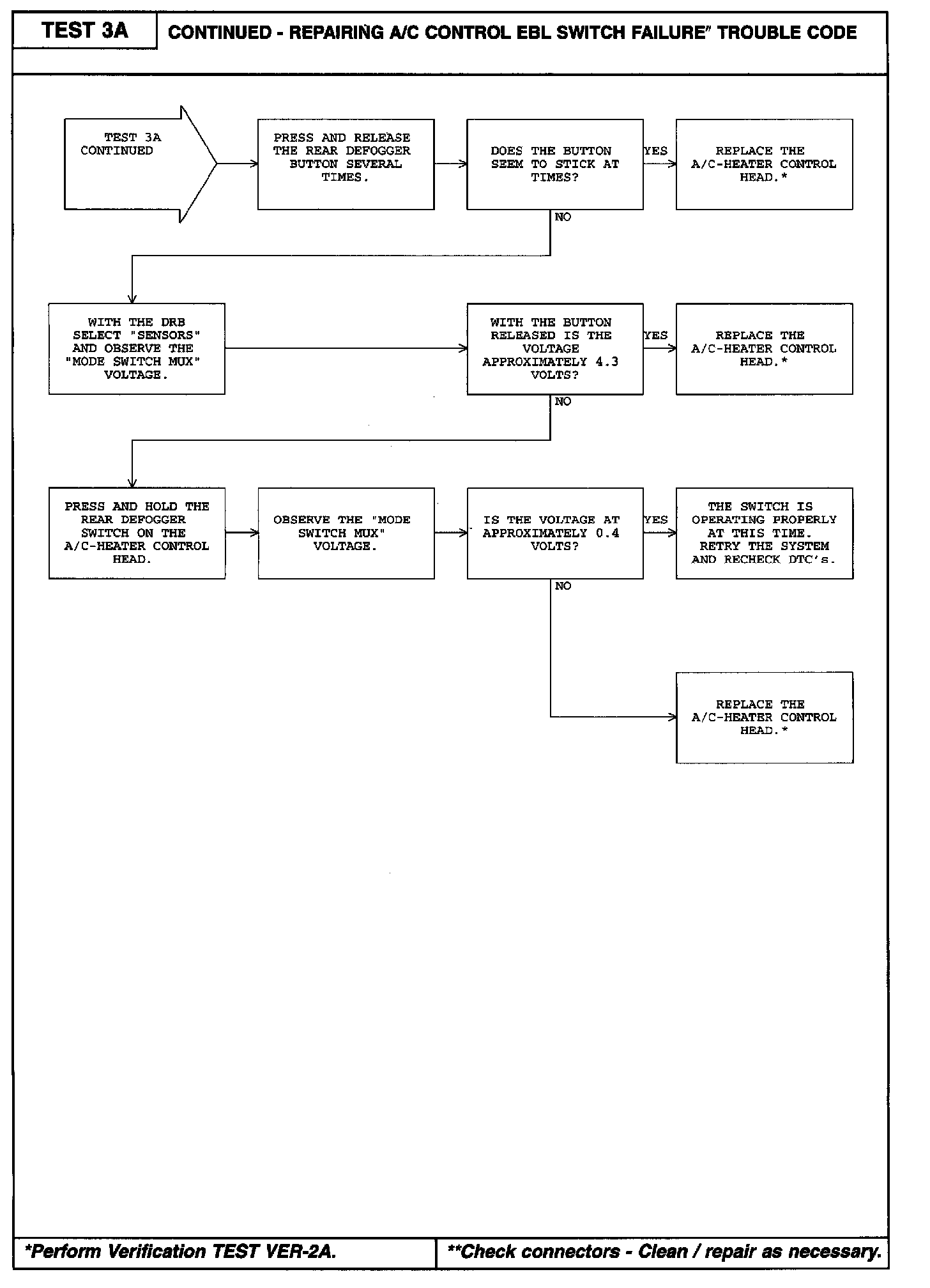

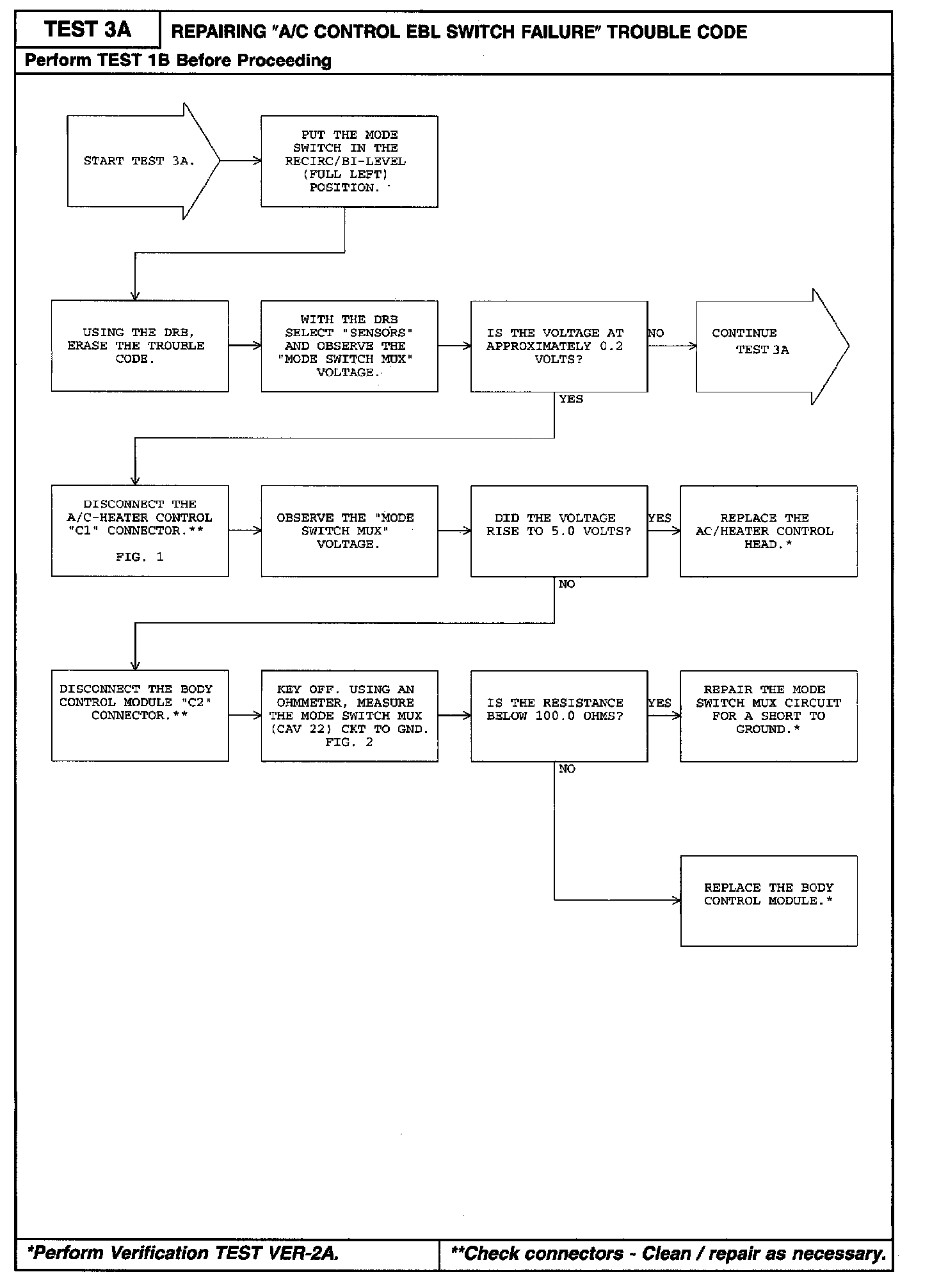

Diagnostic Chart:



Related Images:



Diagnostic Chart:
