Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Heating and Air Conditioning >> Manual HVAC System >> 2A A/C Control A/C Switch Failure Trouble Code

2A A/C Control A/C Switch Failure Trouble Code

Related Images:

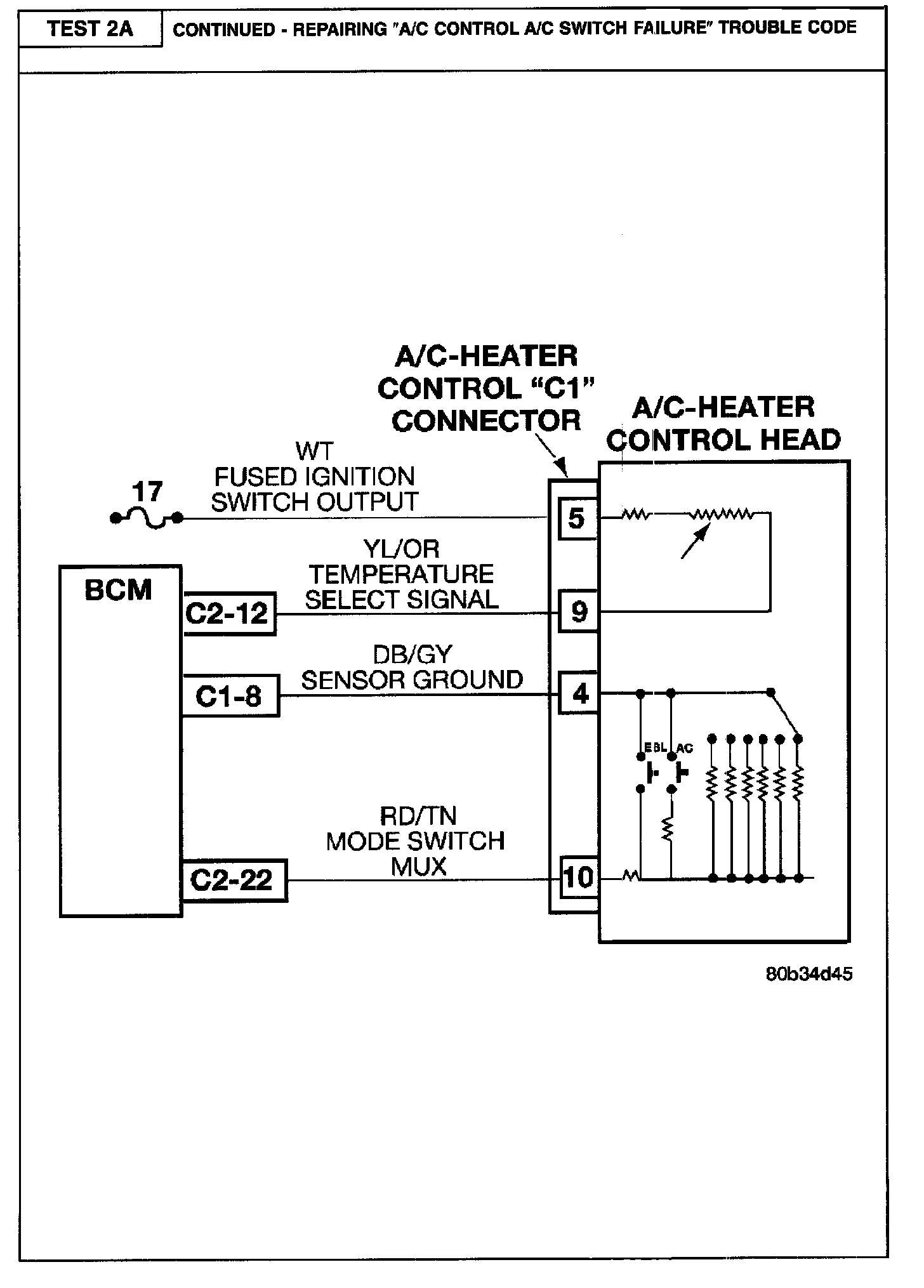

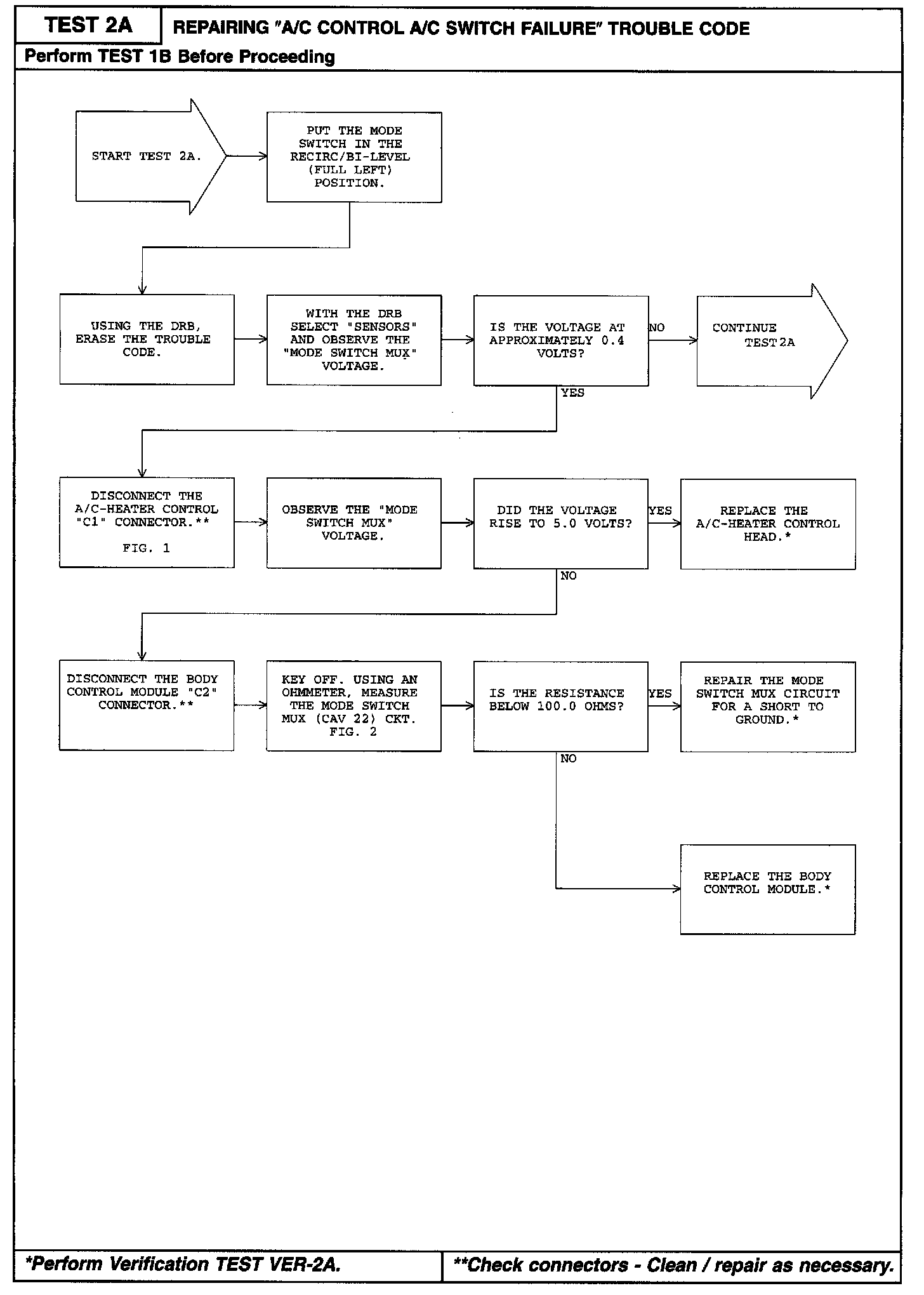

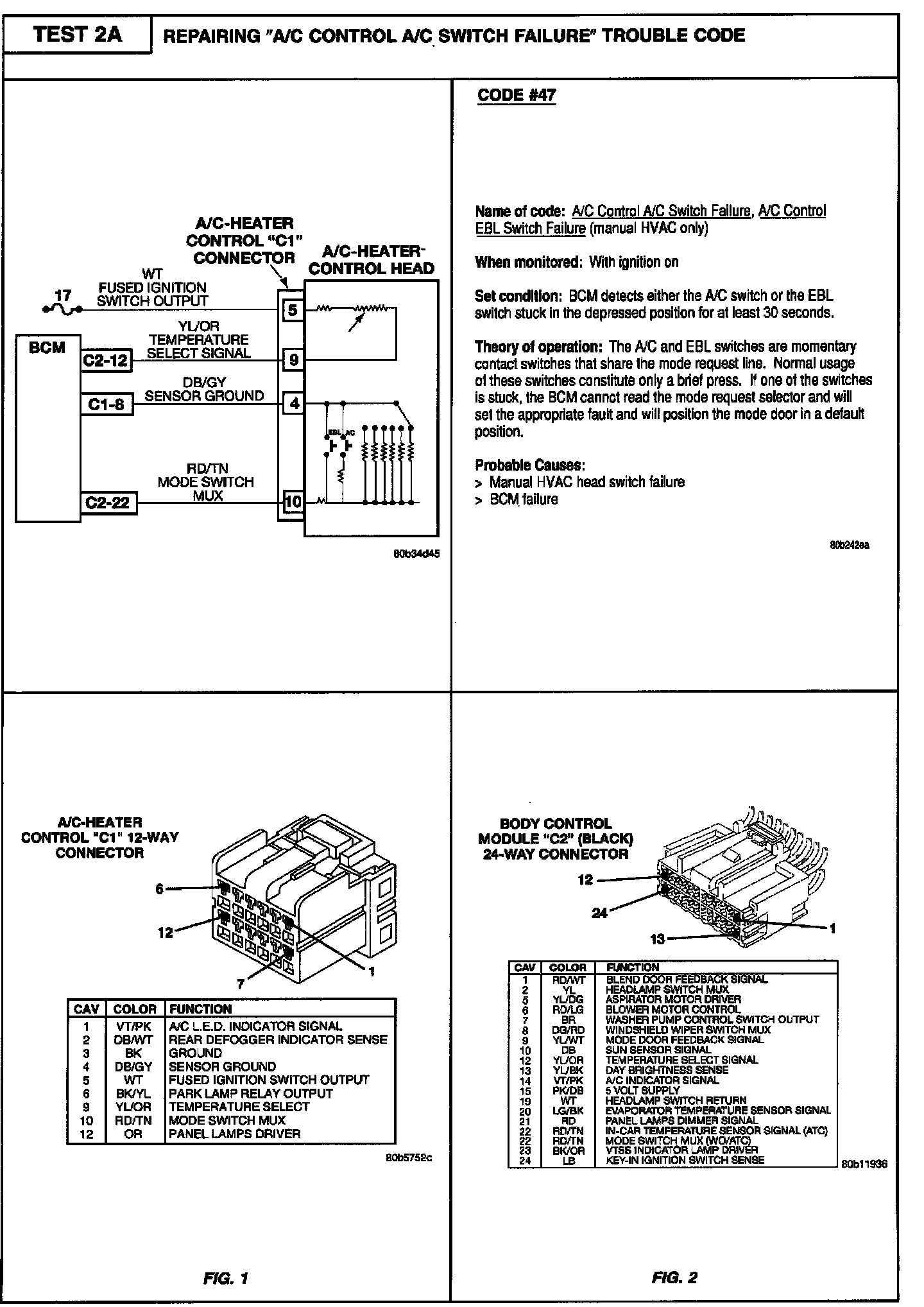

Diagnostic Chart:

Related Images:

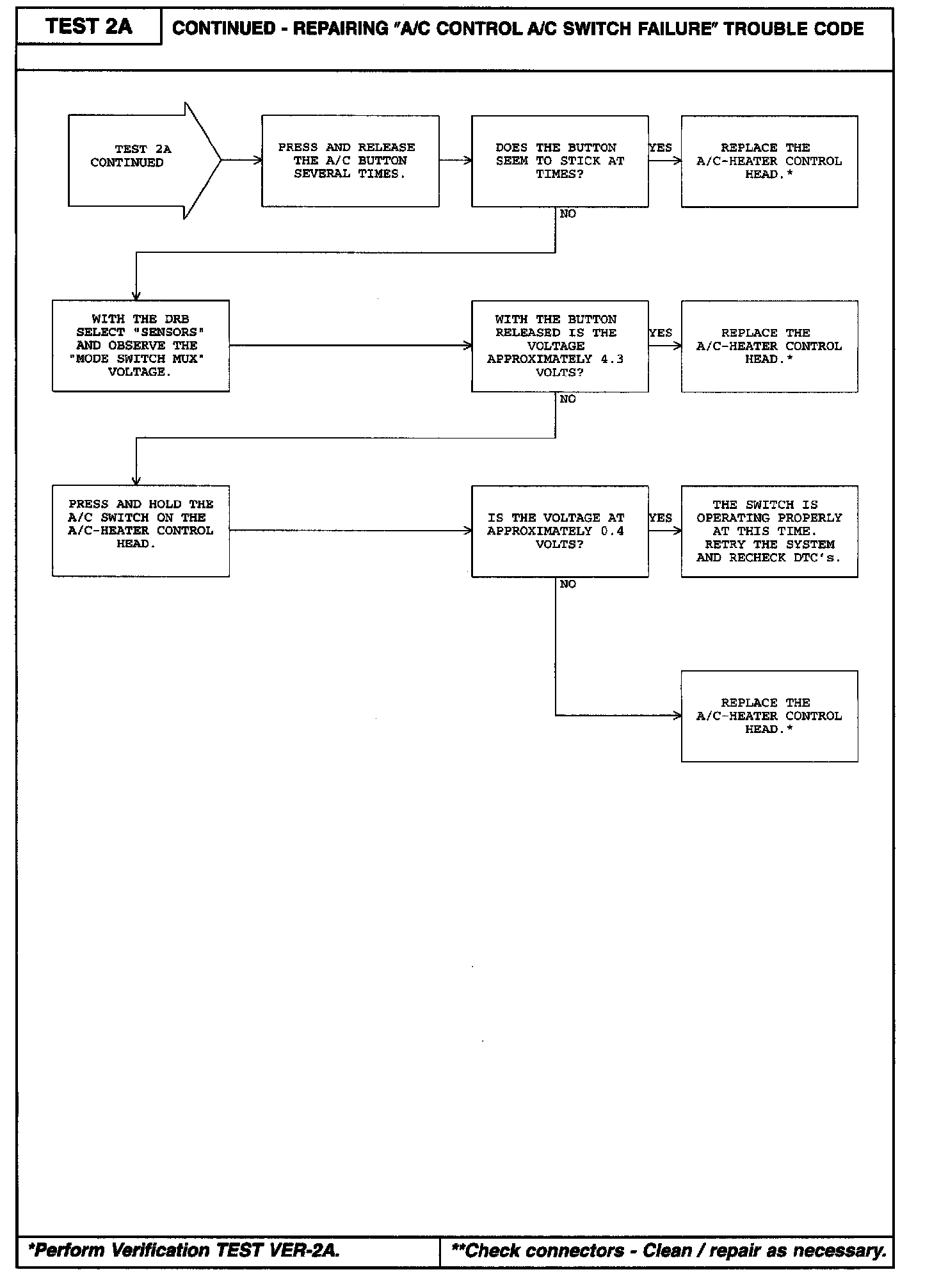

Diagnostic Chart:
