Home
>>
Chrysler
>>
1999
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Heating and Air Conditioning
>>
Automatic Temperature Control (ATC) HVAC System
>>

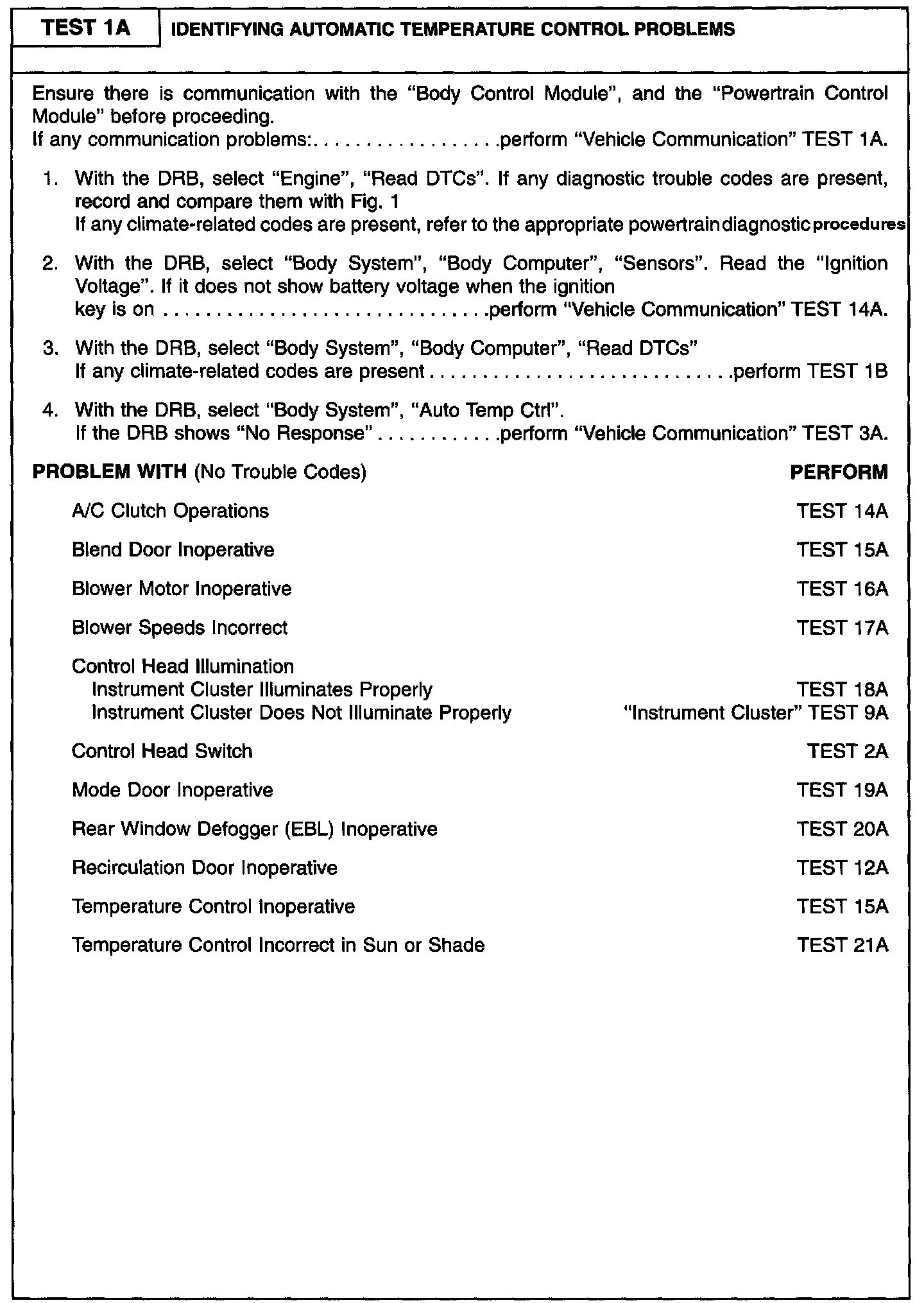

1A Identifying Automatic Temperature Control (ATC) Problems
1A Identifying Automatic Temperature Control (ATC) Problems
Related Images:

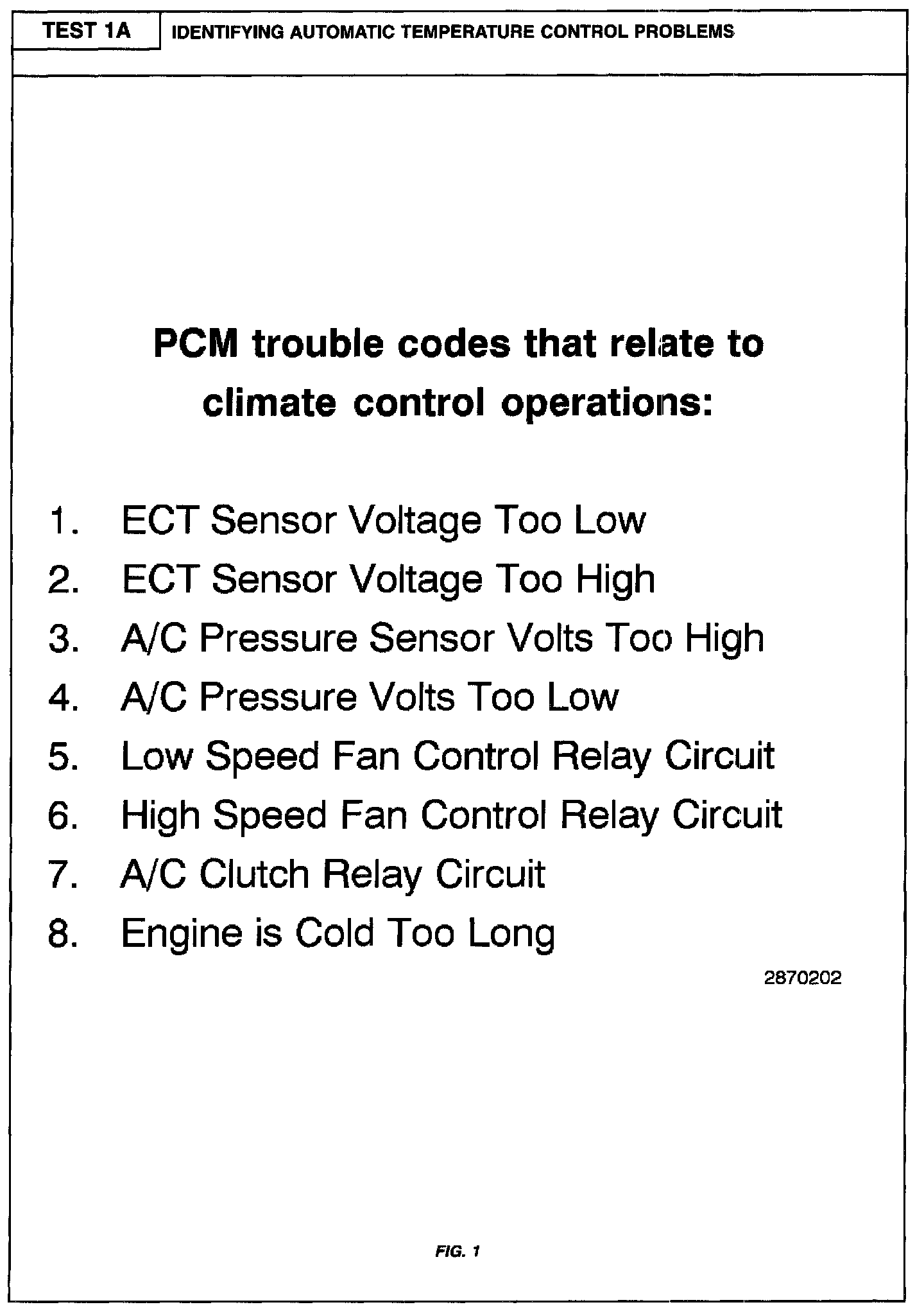

Diagnostic Chart:
