Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Heating and Air Conditioning >> Automatic Temperature Control (ATC) HVAC System >> 19A Inoperative Mode Door

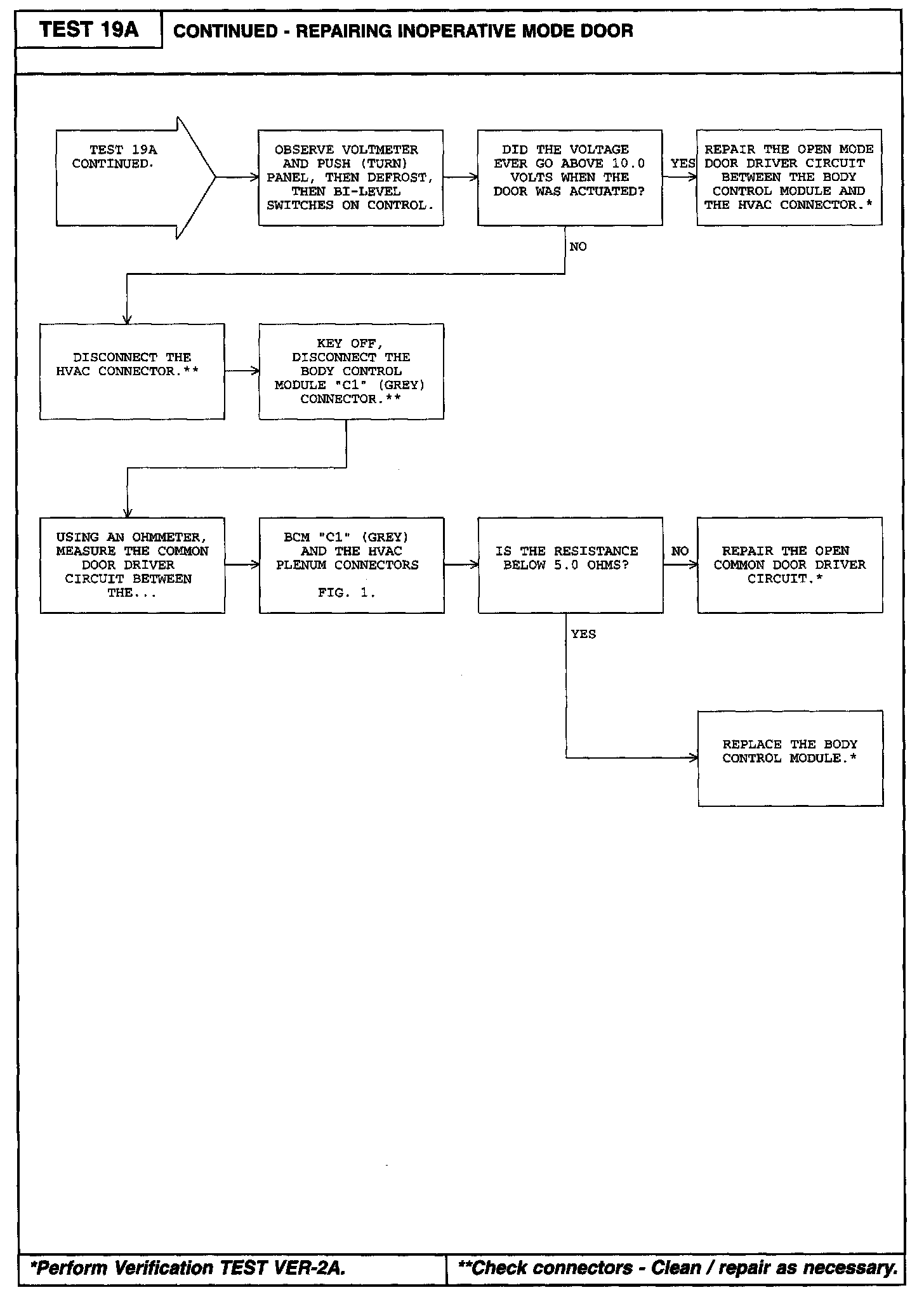

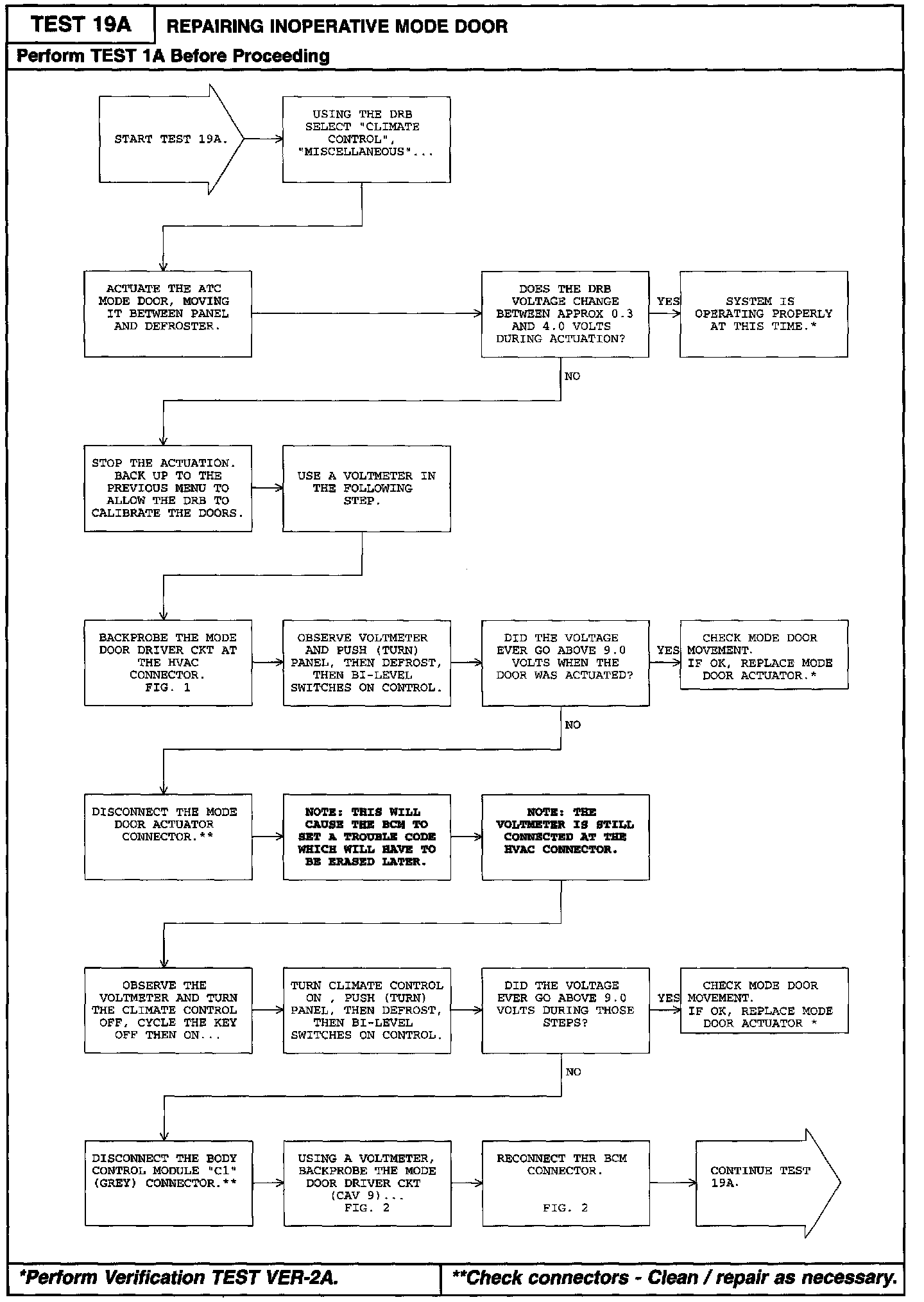

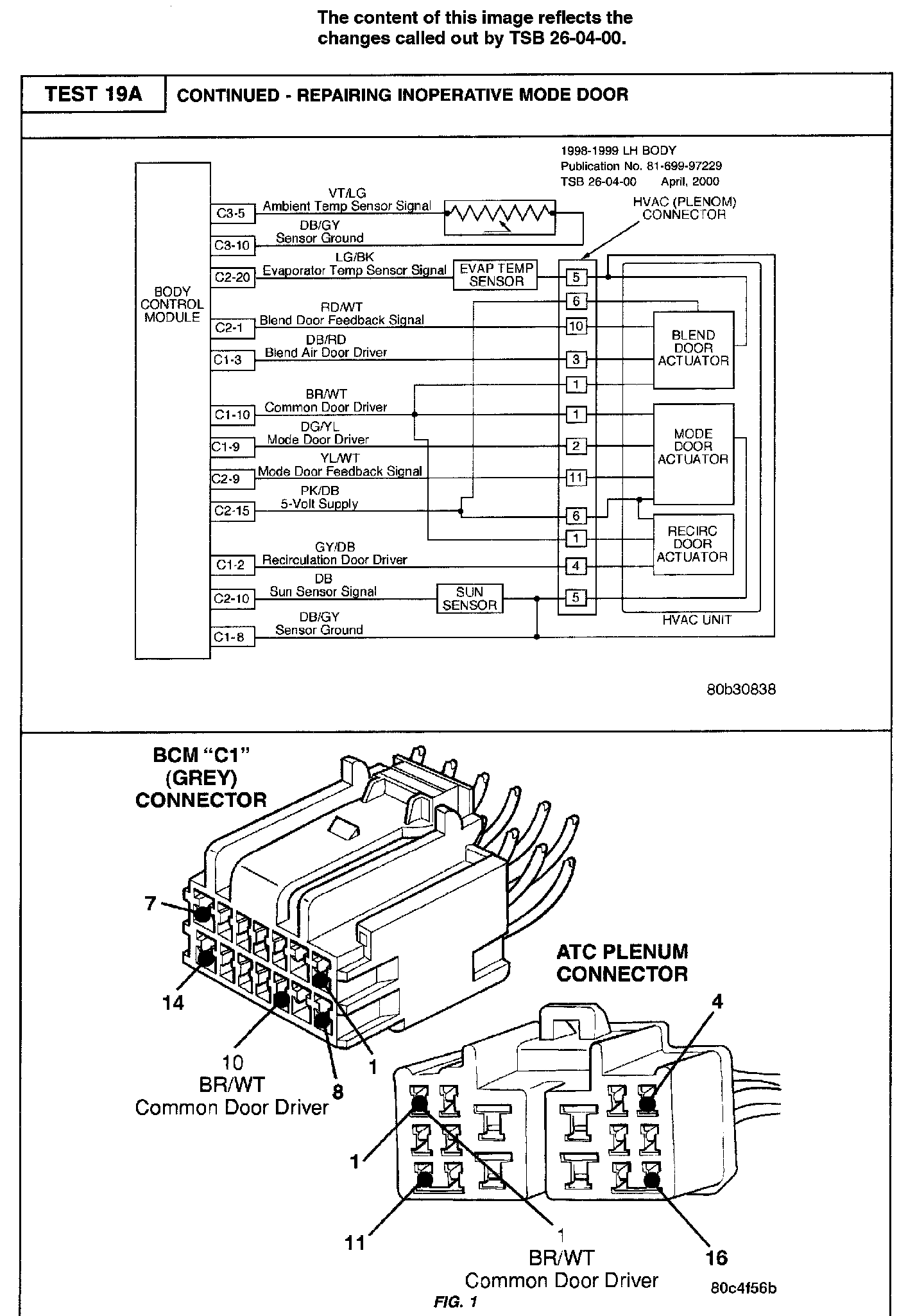

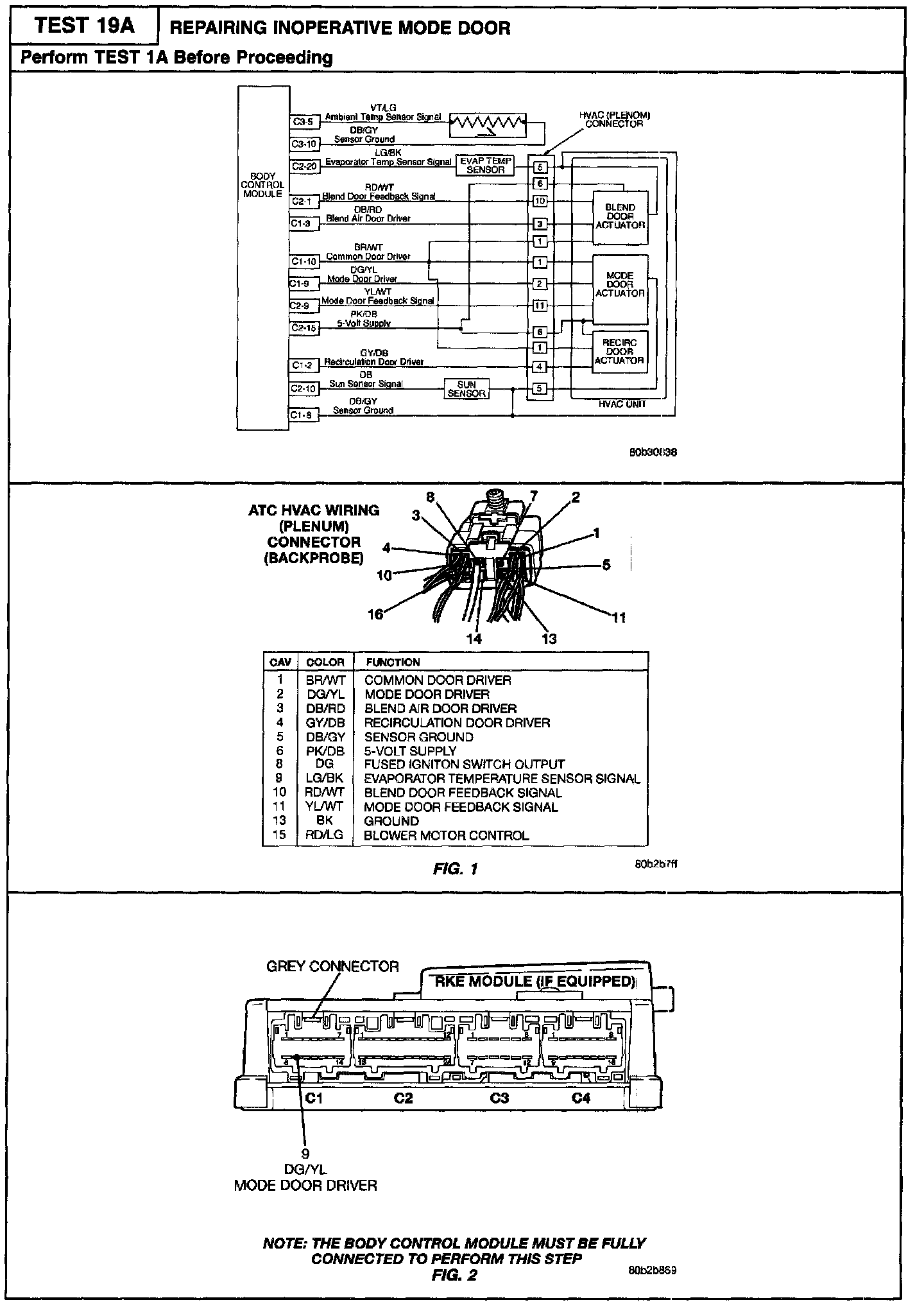

19A Inoperative Mode Door

Related Images:



Diagnostic Chart:



��Related Images:



Diagnostic Chart:
