Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Heating and Air Conditioning >> Automatic Temperature Control (ATC) HVAC System >> 15A Inoperative Temp/Blend Air Door

15A Inoperative Temp/Blend Air Door

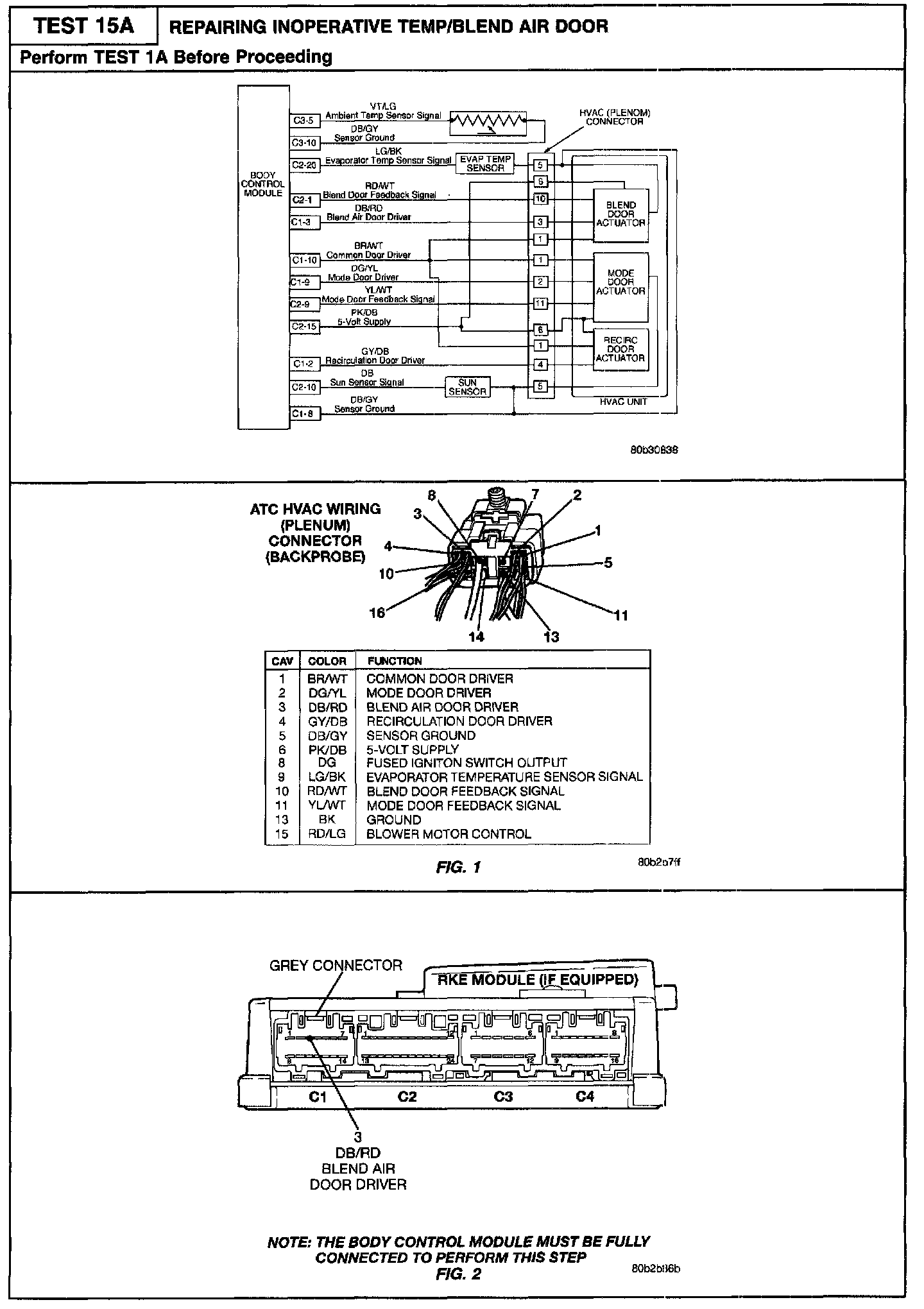

Related Images:

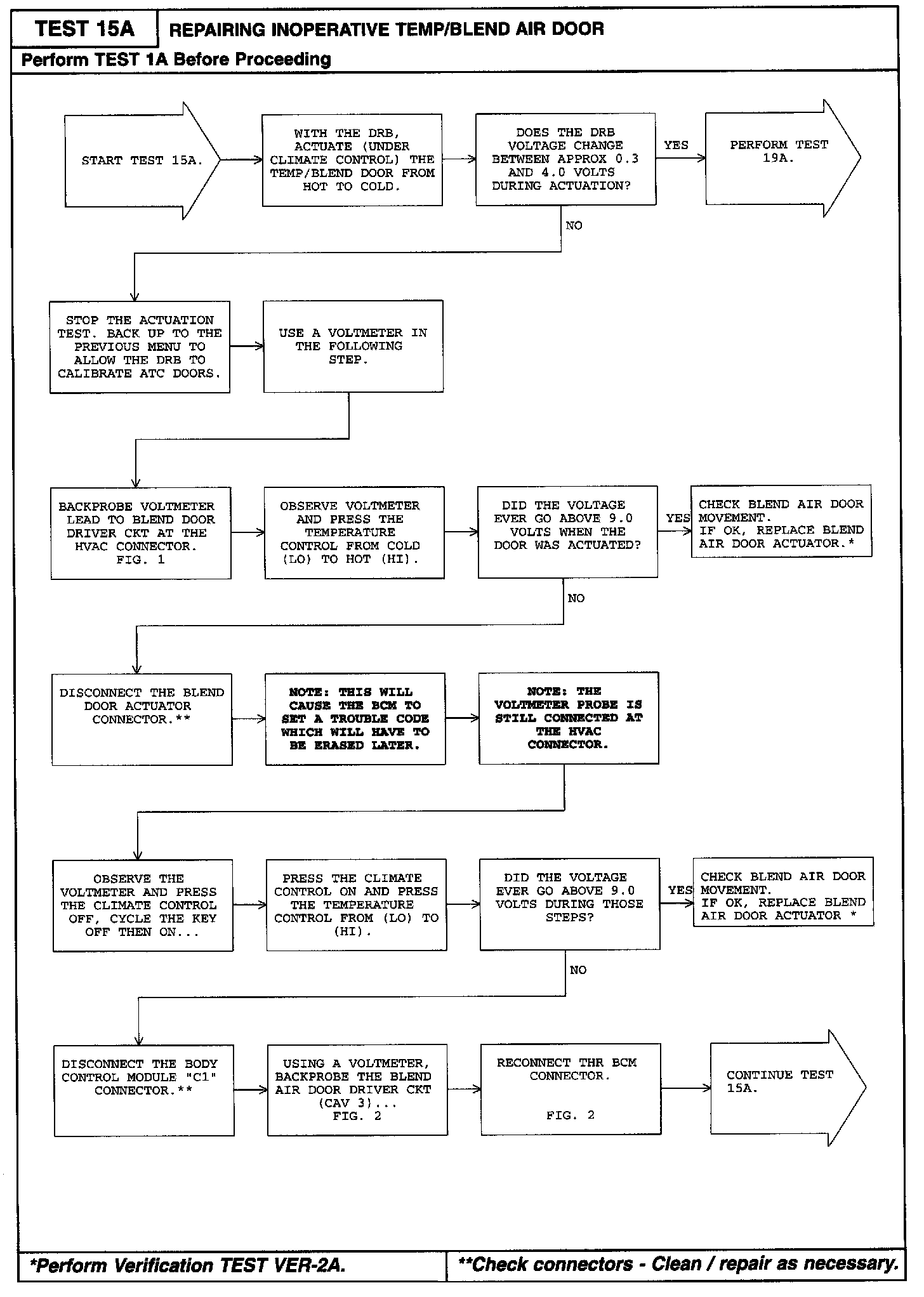

Diagnostic Chart:

�(�Related Images:

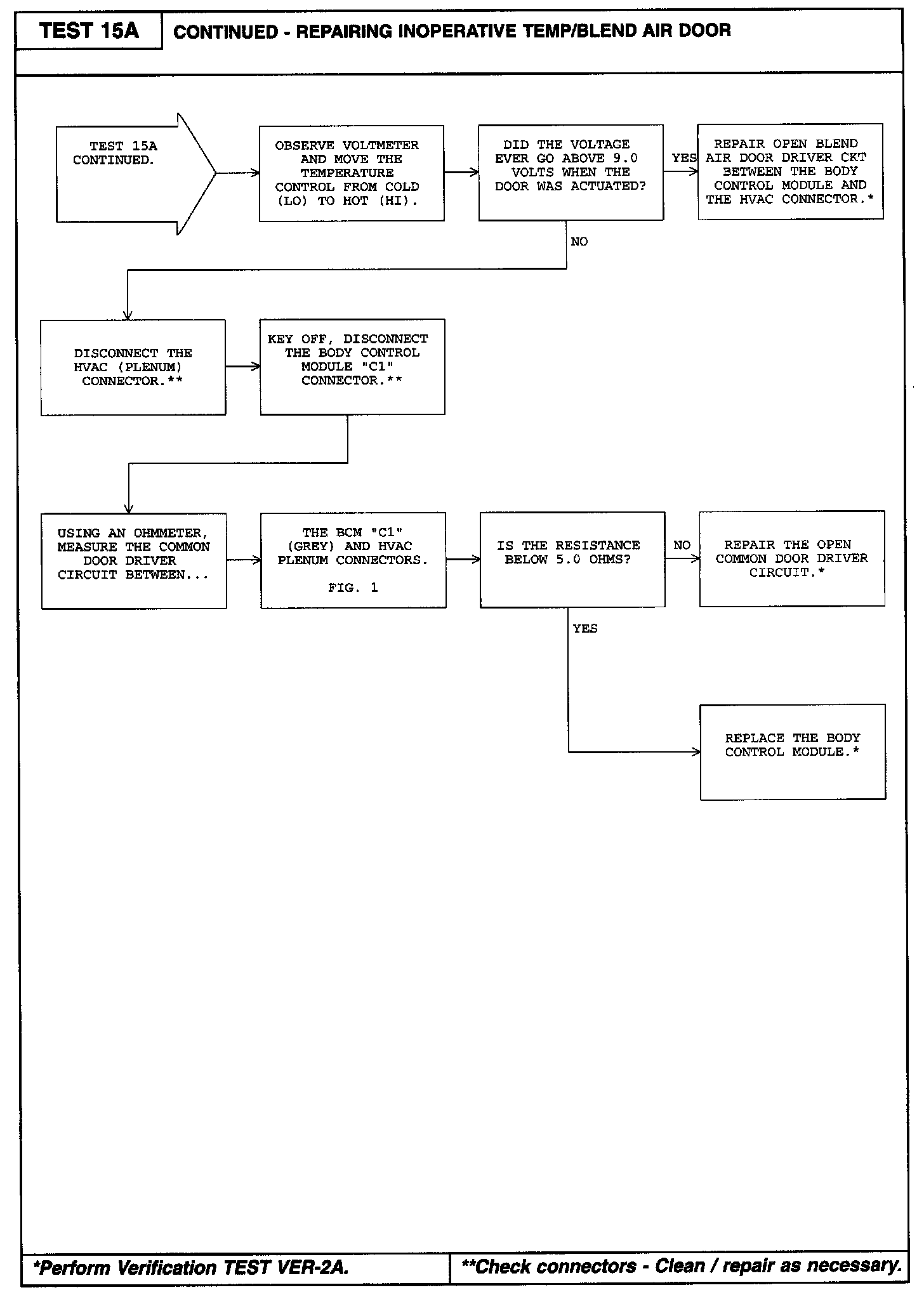

Diagnostic Chart:
