A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Audio System
>>
1E Shorted Left Channel
1E Shorted Left Channel
Related Images:

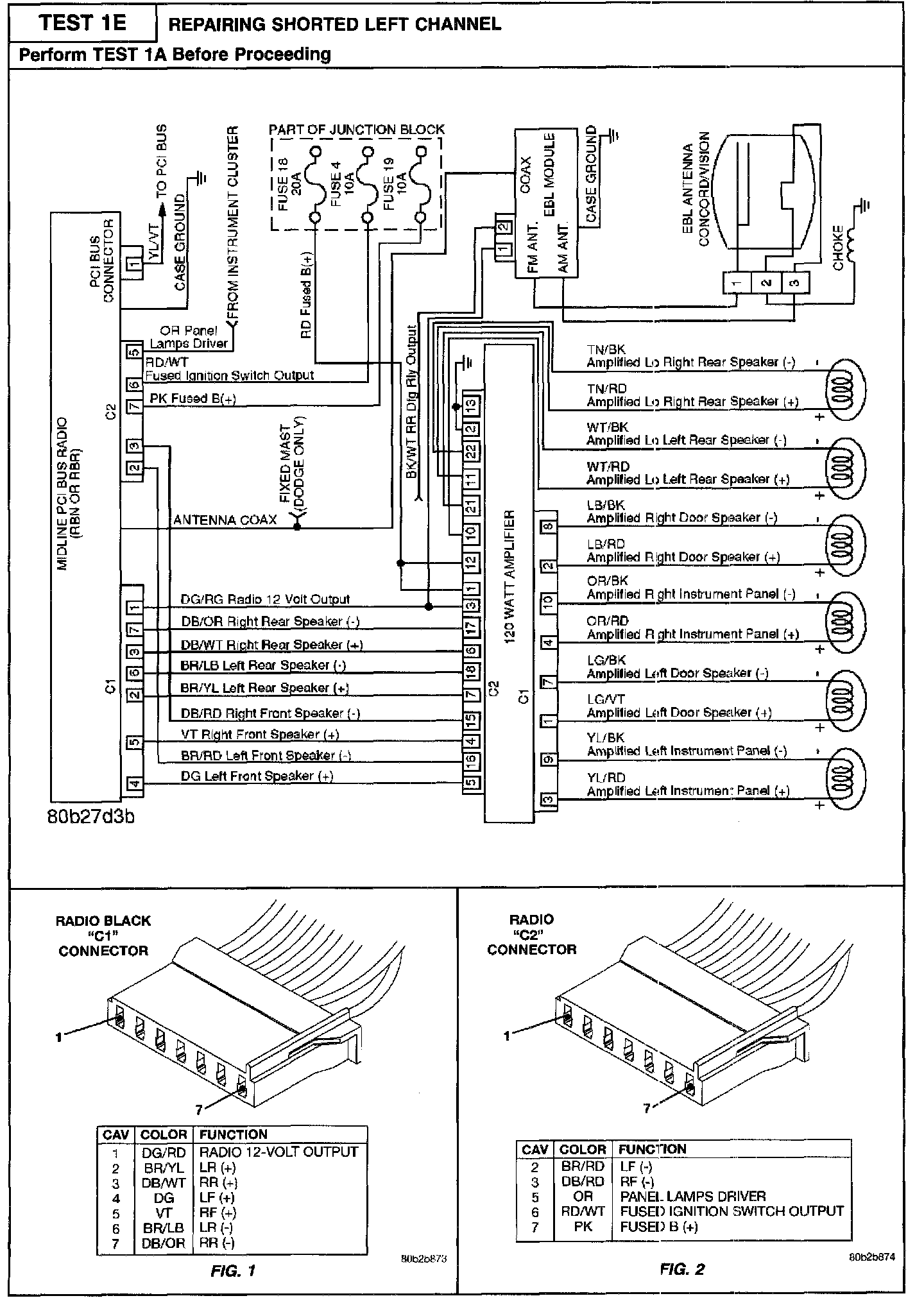

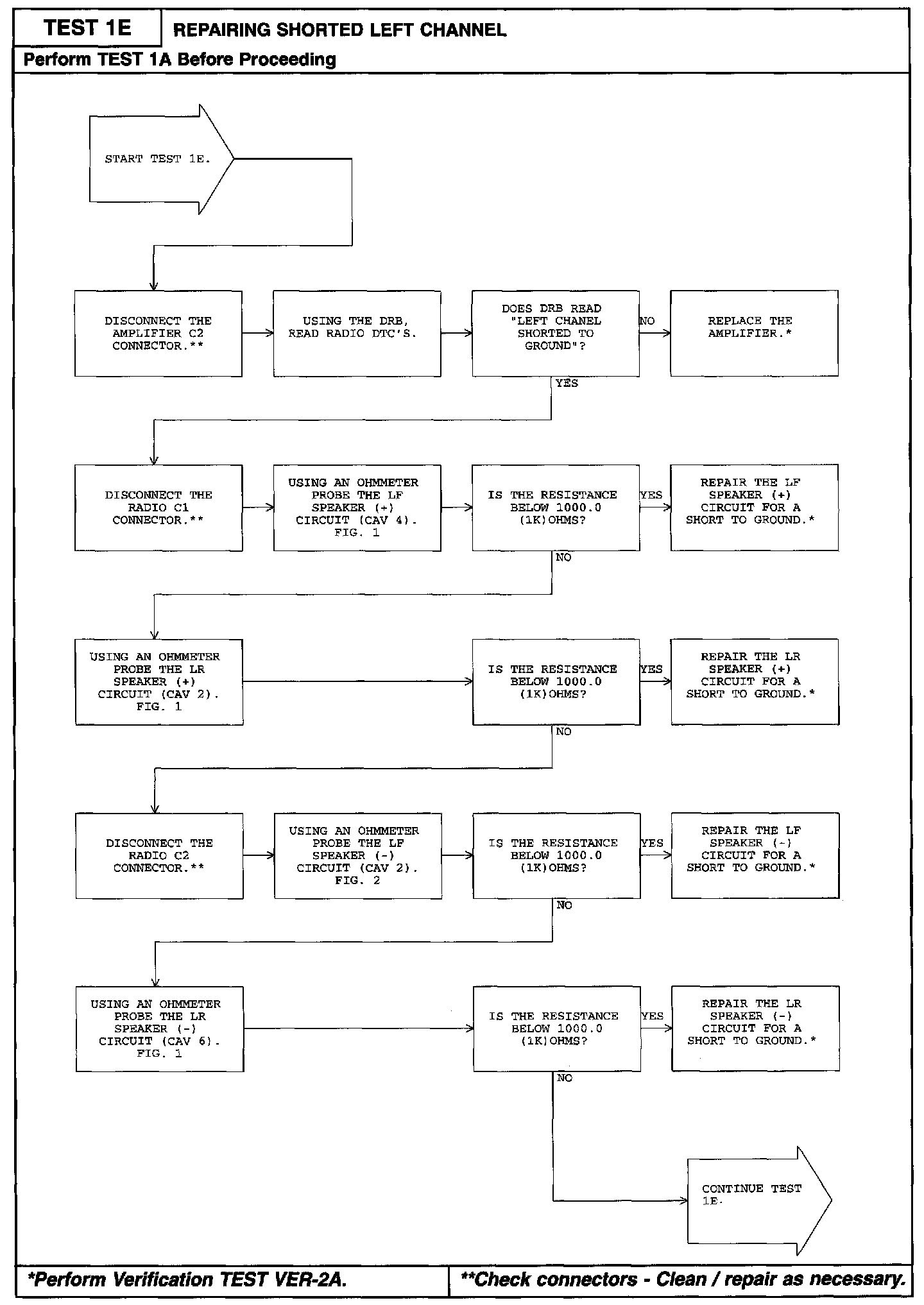

Test 1E Part 1 Of 2:
Related Images:

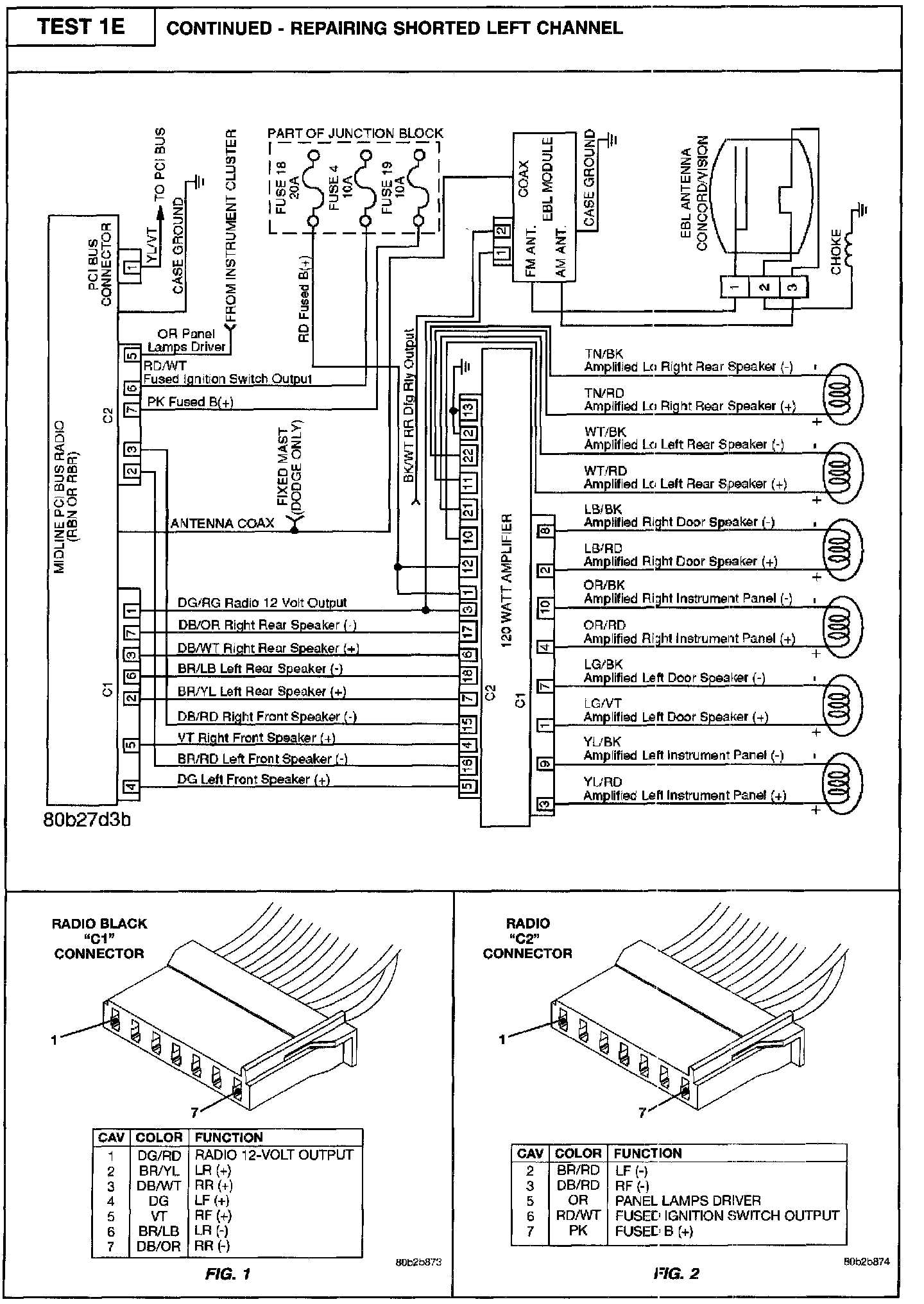

Test 1E Part 2 Of 2:
