FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1999
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Audio System
>>
1D Shorted Rear Channel
1D Shorted Rear Channel
Related Images:

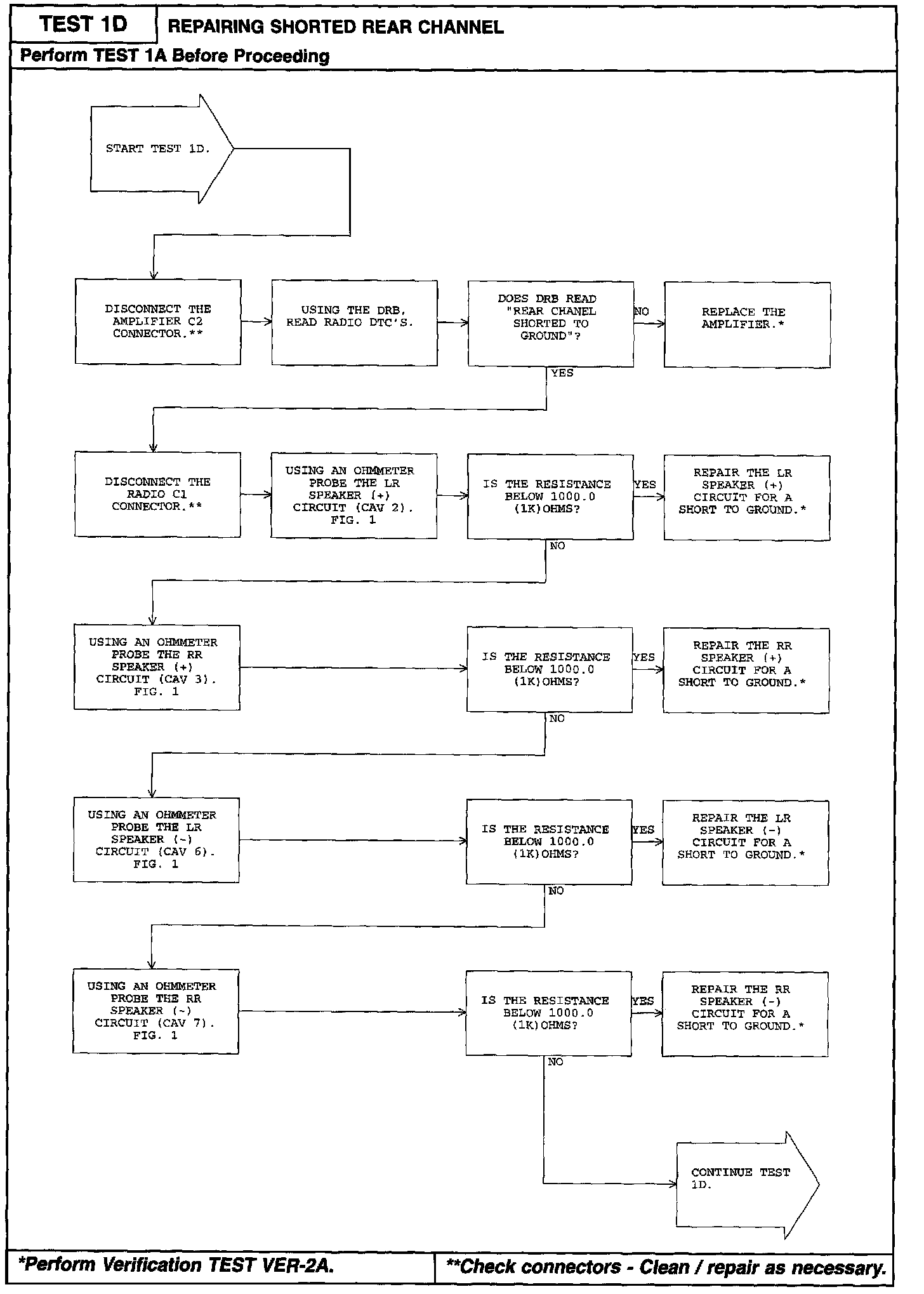

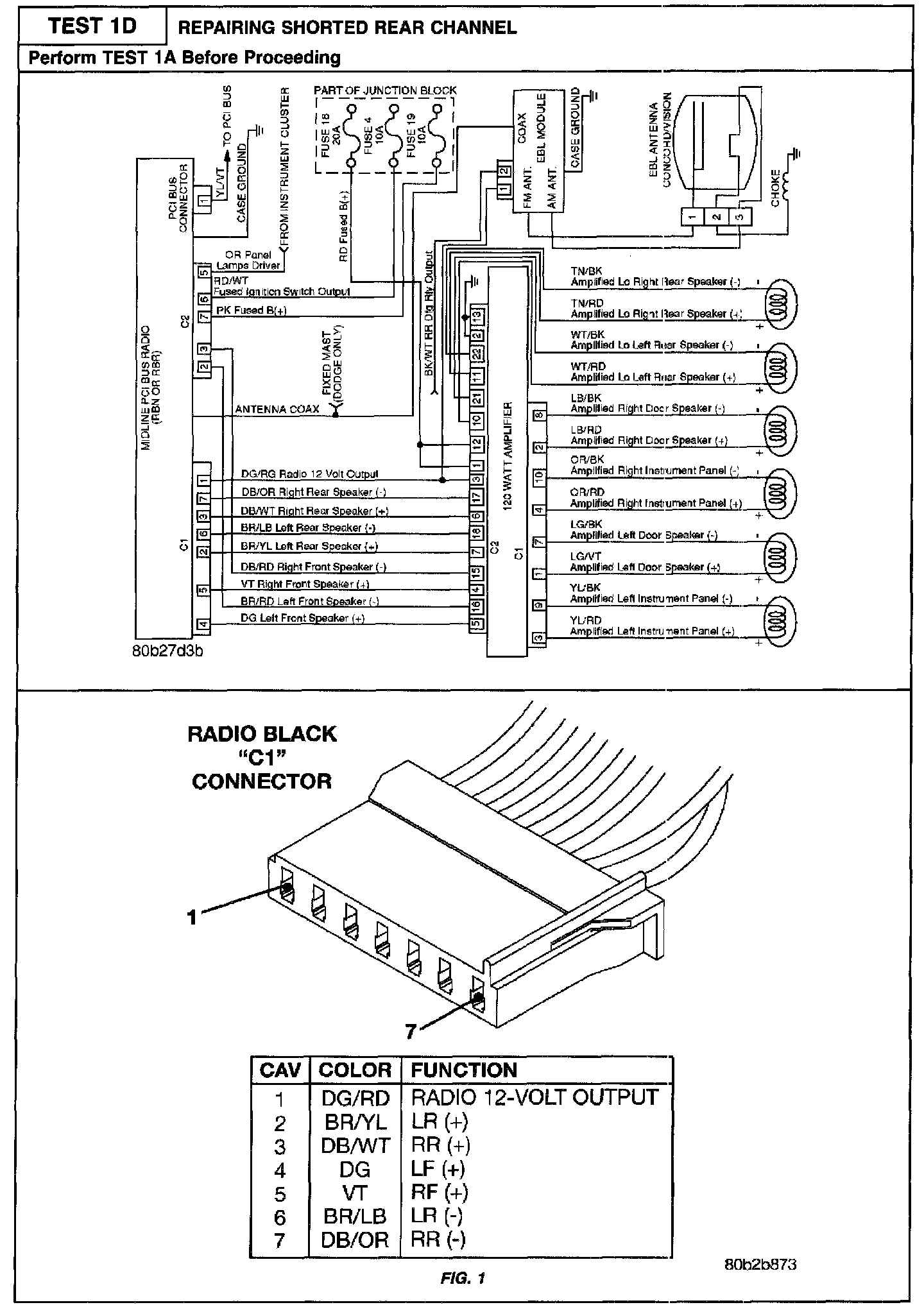

Test 1D Part 1 Of 2:
Related Images:

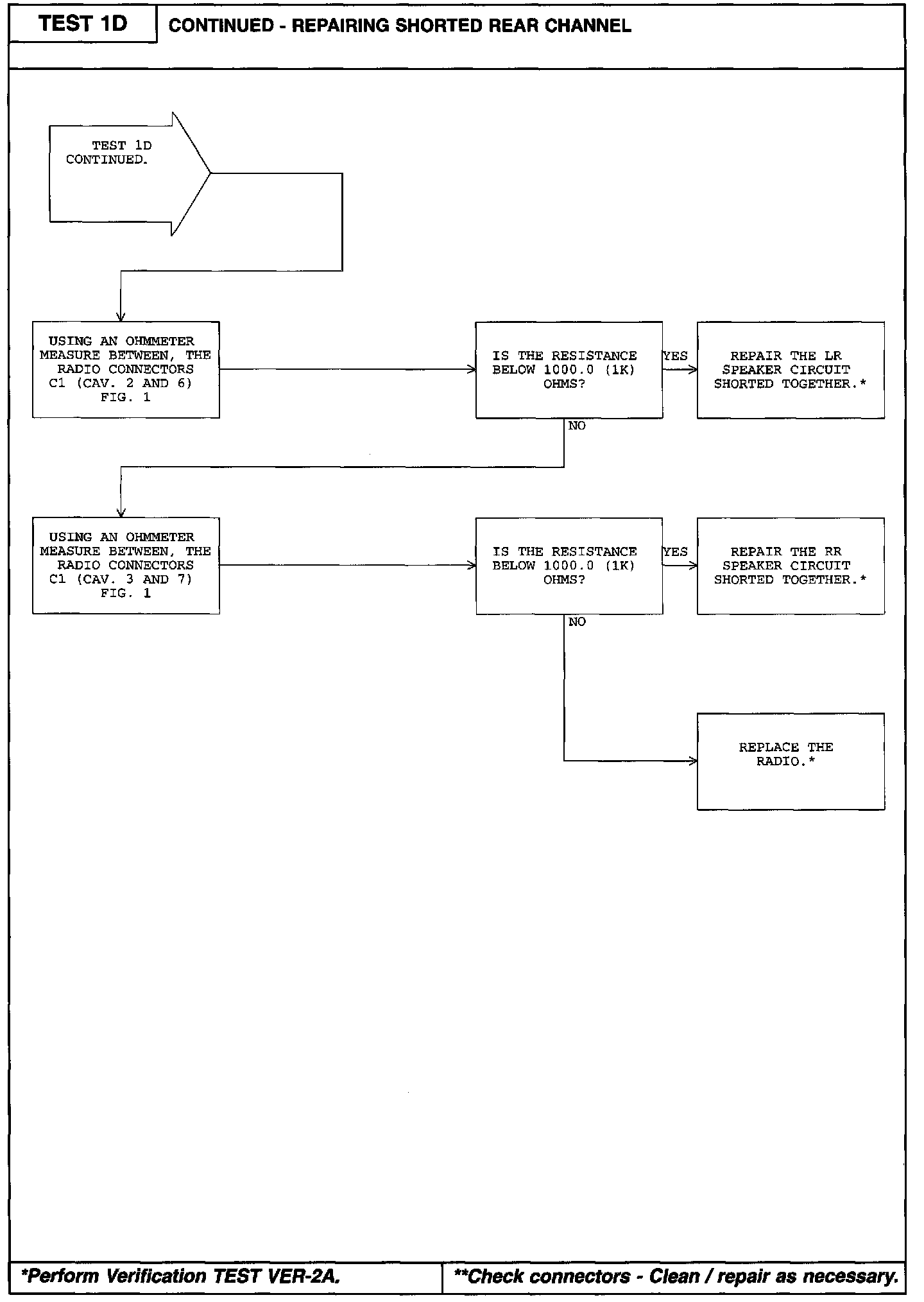

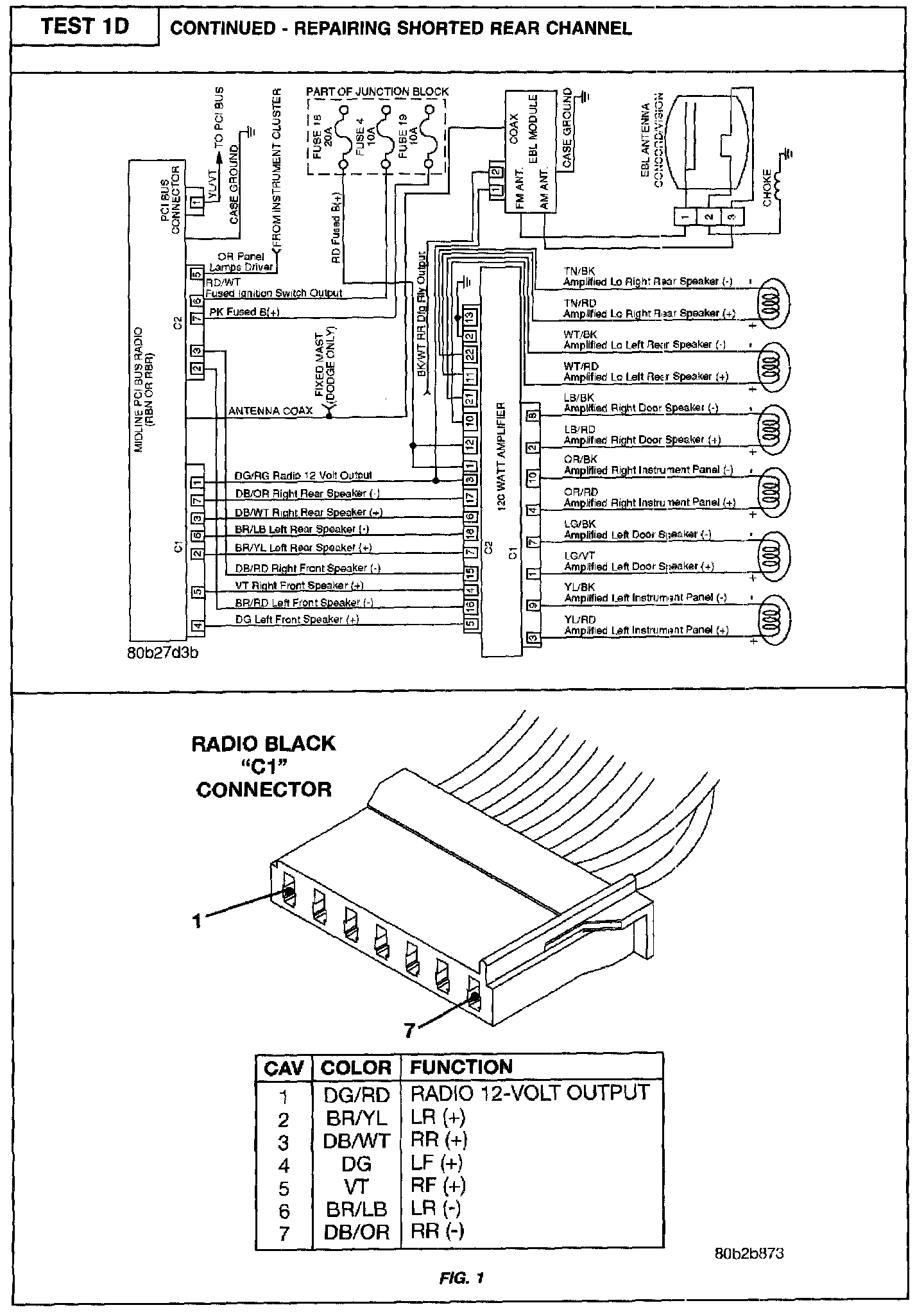

Test 1D Part 2 Of 2:
