Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Audio System >> 1B Identifying Radio (PCI Bus) Diagnostic Trouble Codes

1B Identifying Radio (PCI Bus) Diagnostic Trouble Codes

Related Images:

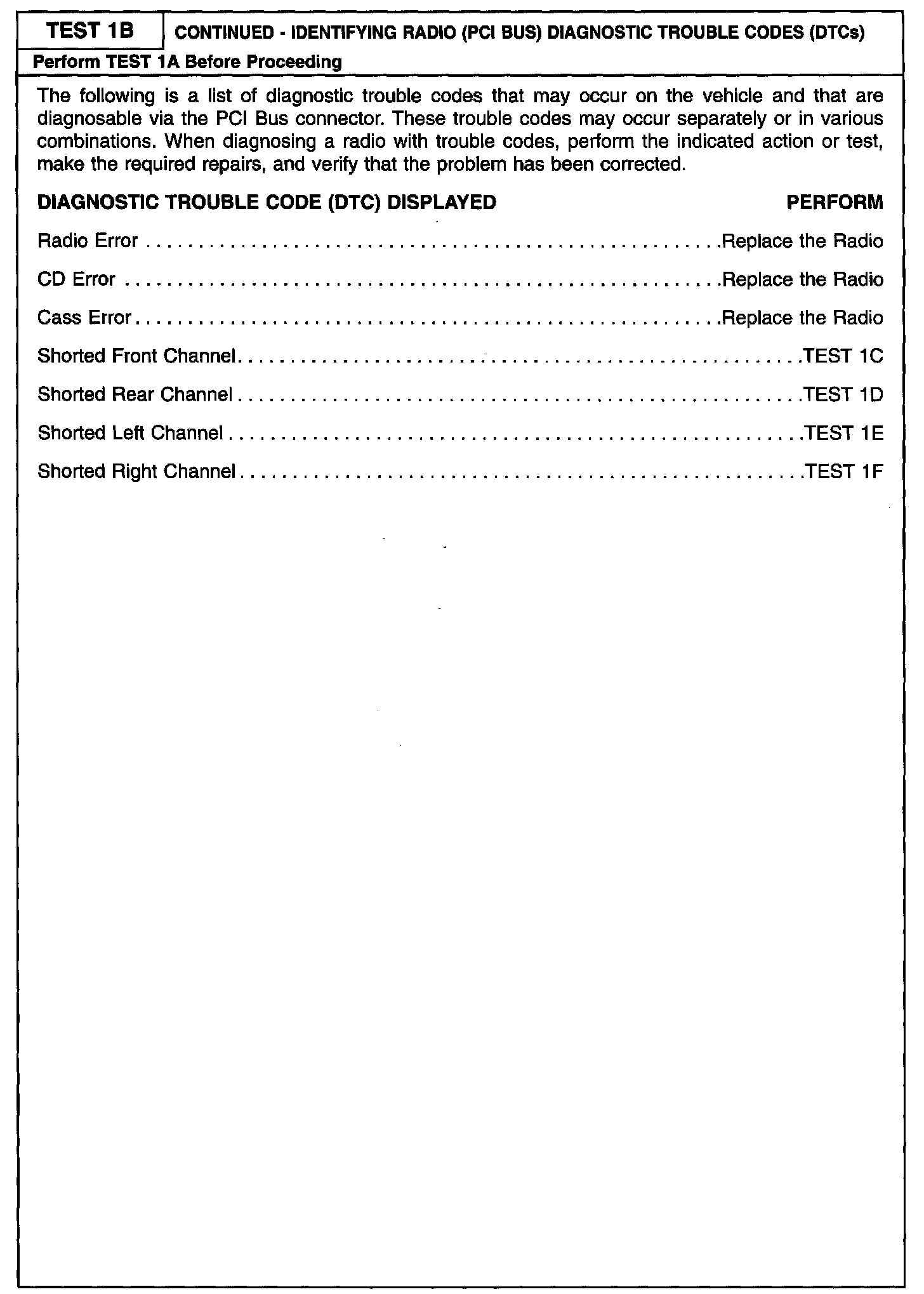

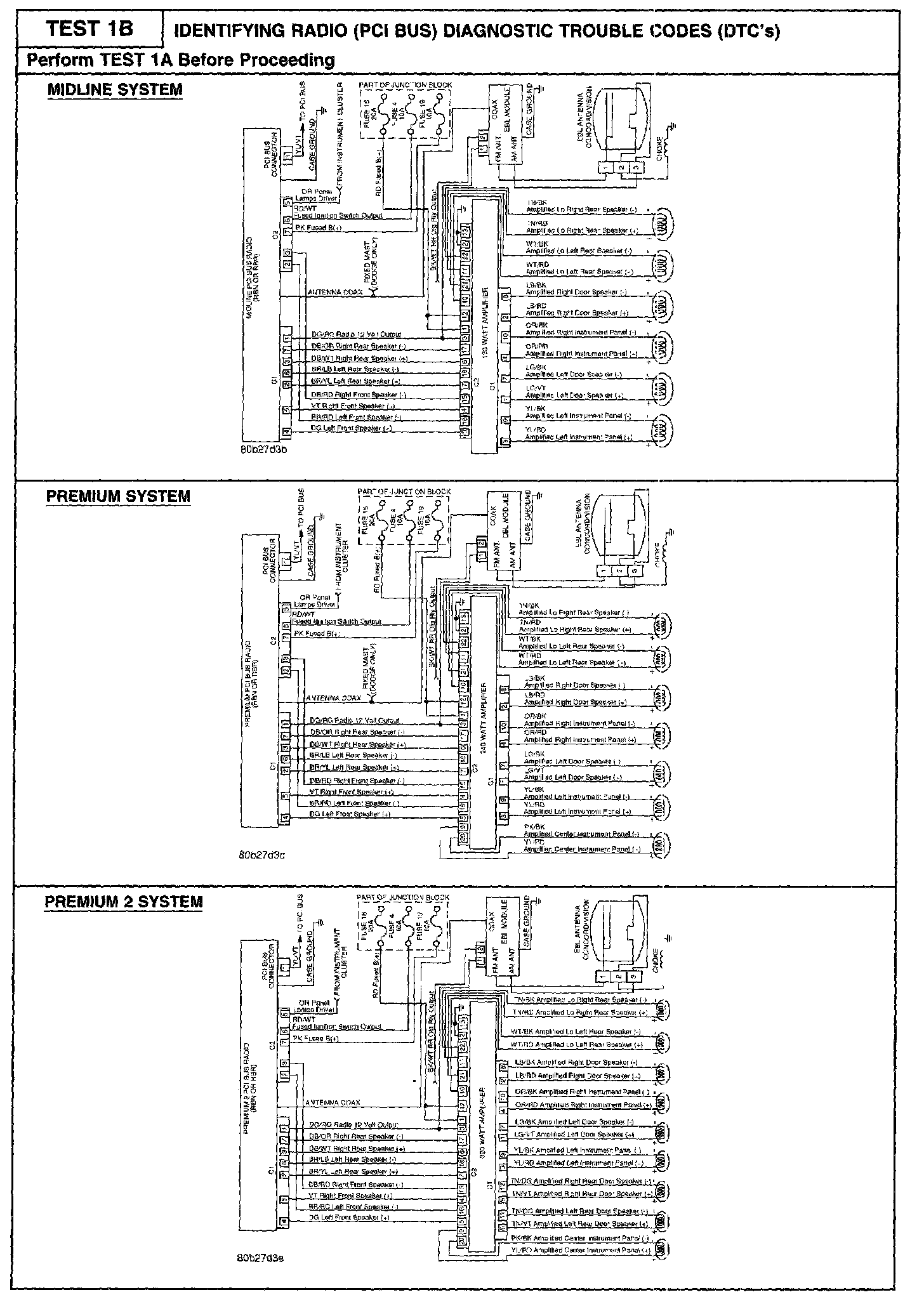

Test 1B:
