Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 4A - Right Front Sensor Circuit Failure

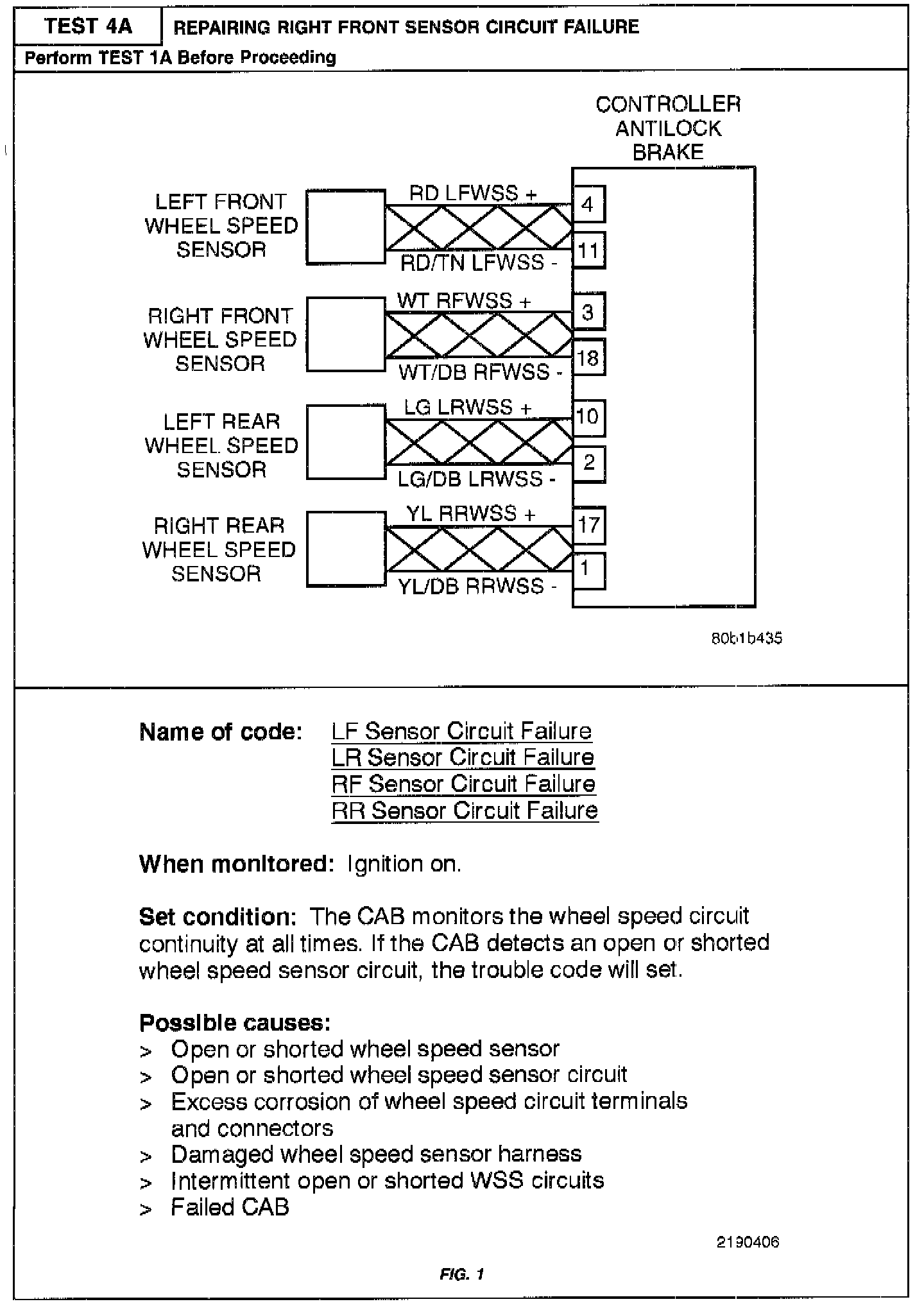

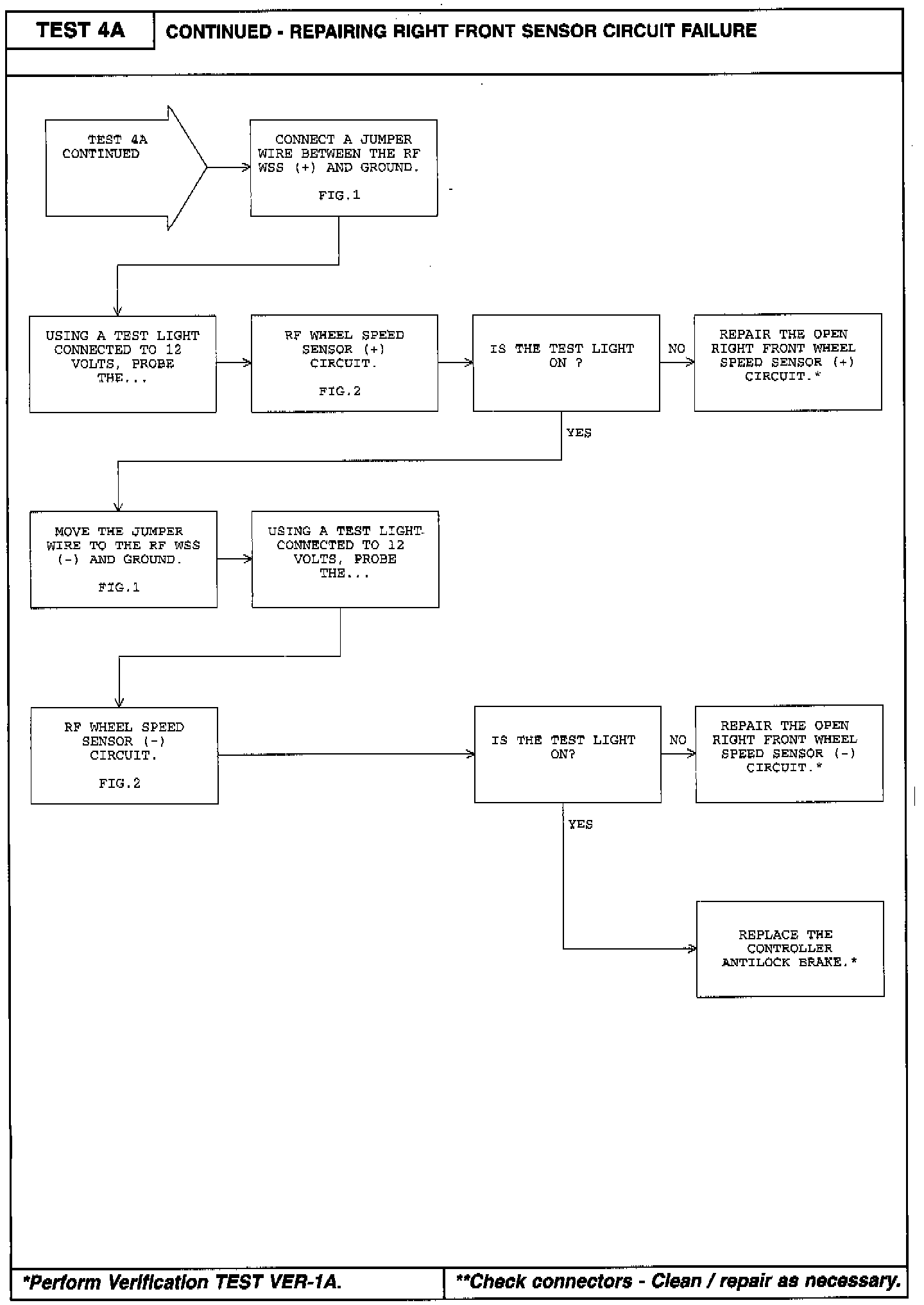

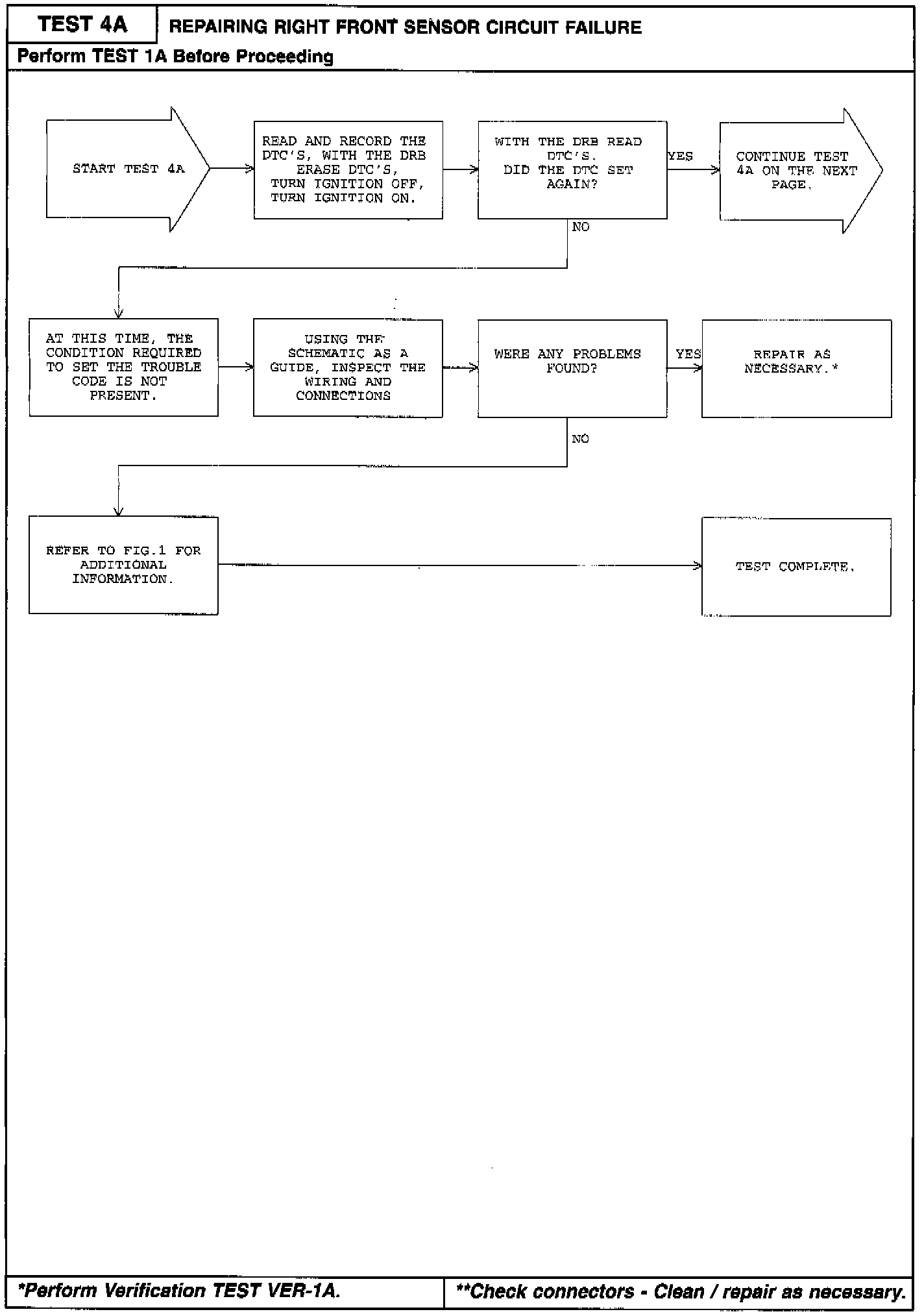

Test 4A - Right Front Sensor Circuit Failure

Part 1 Of 6:



Part 2 Of 6:



Part 3 Of 6:



Part 4 Of 6:



Part 5 Of 6:



Part 6 Of 6:
