Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 10A - Pump Motor Circuit Not Working Properly

Test 10A - Pump Motor Circuit Not Working Properly

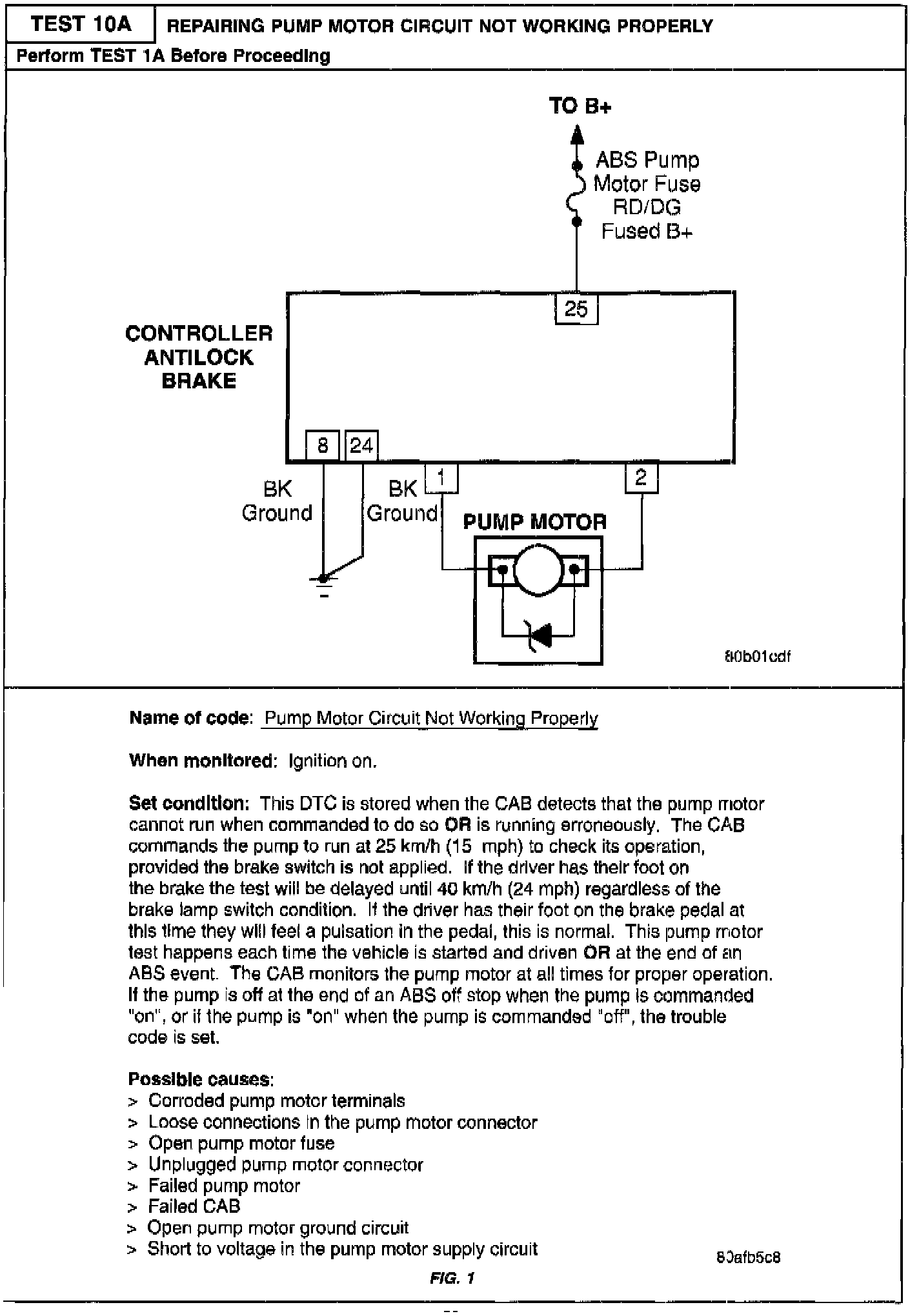

Part 1 Of 4:

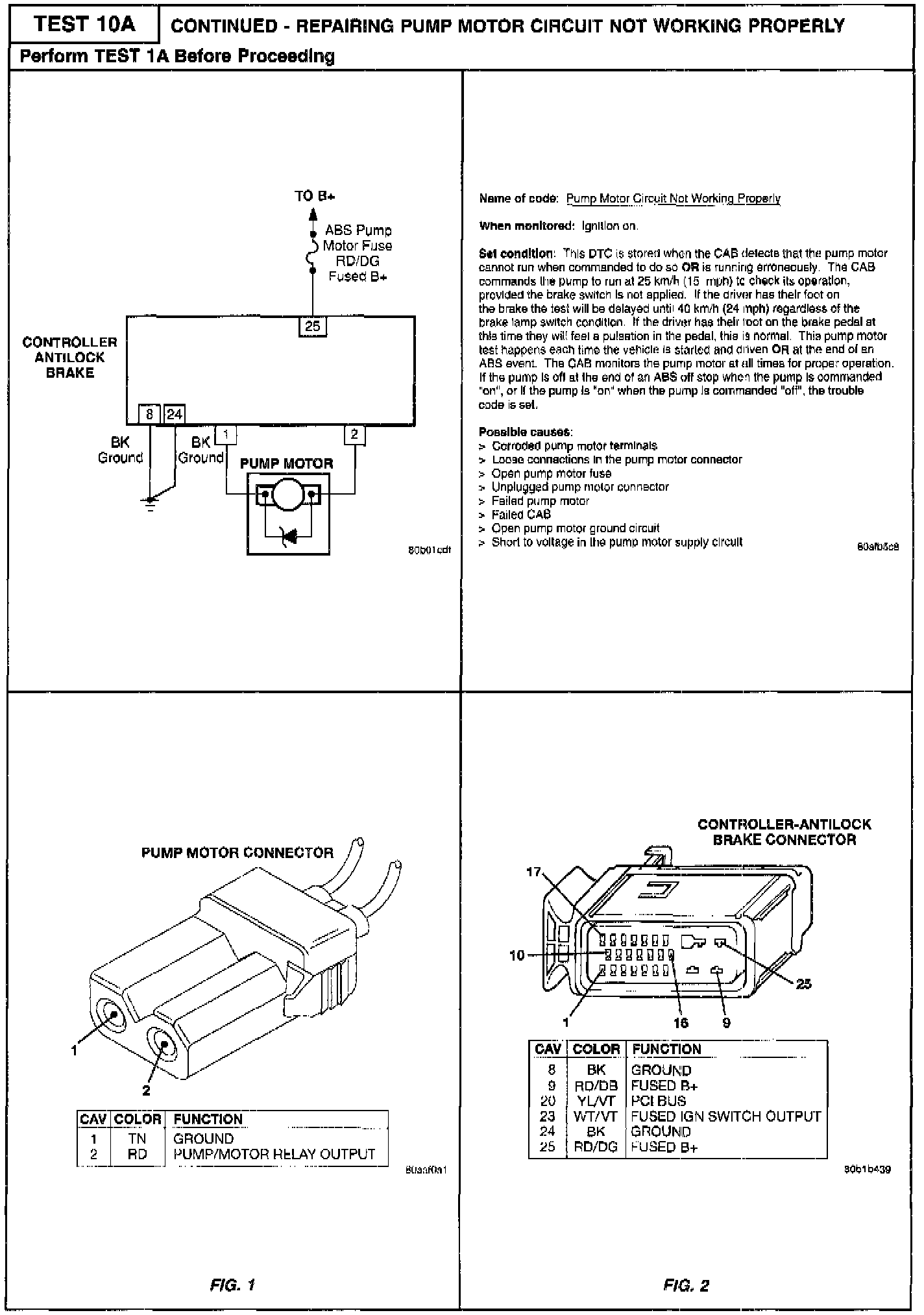

Part 2 Of 4:

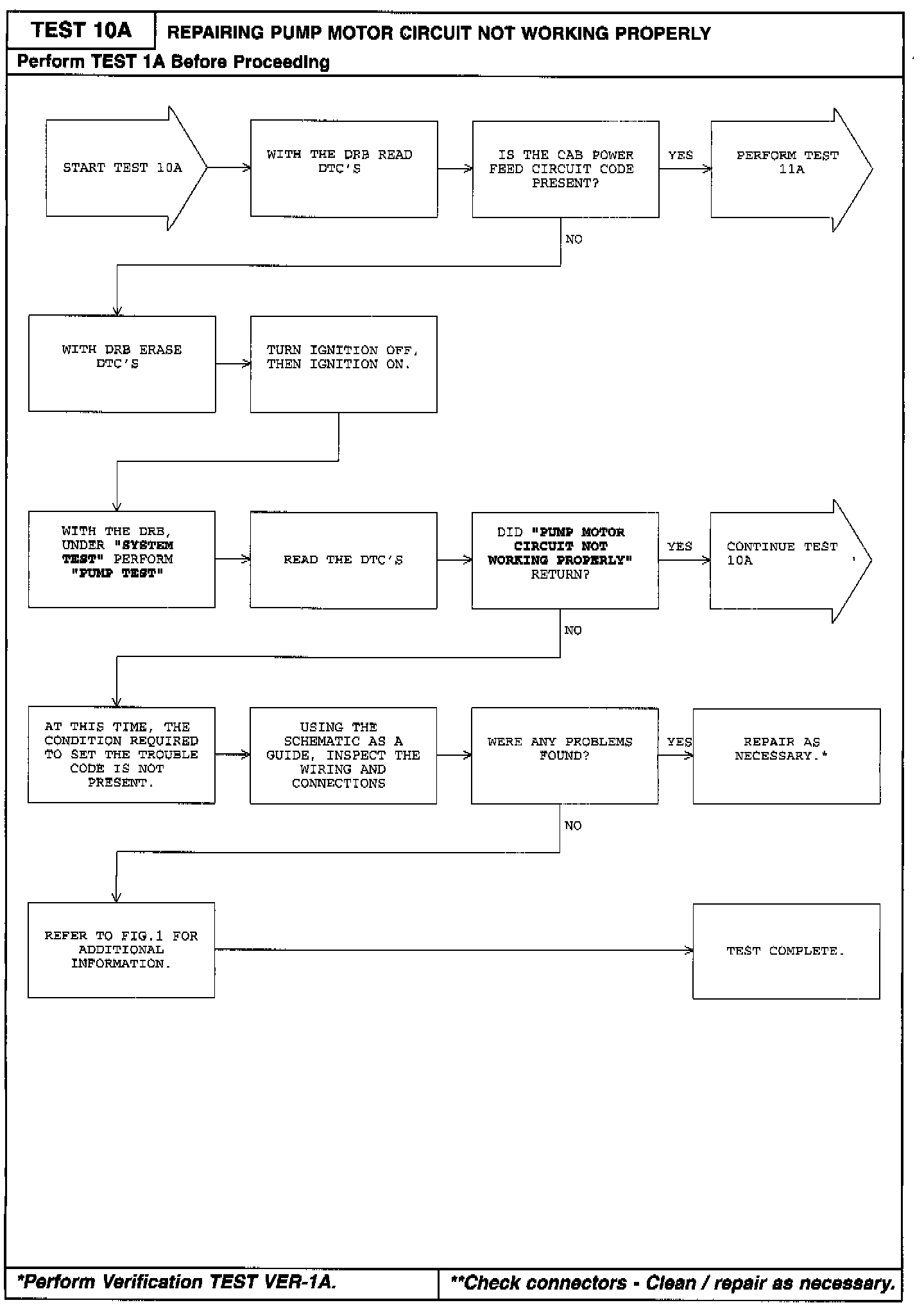

Part 3 Of 4:



Part 4 Of 4:
