Airbag System
>>
8A Loss of Ignition Run/Start
8A Loss of Ignition Run/Start
Related Images:

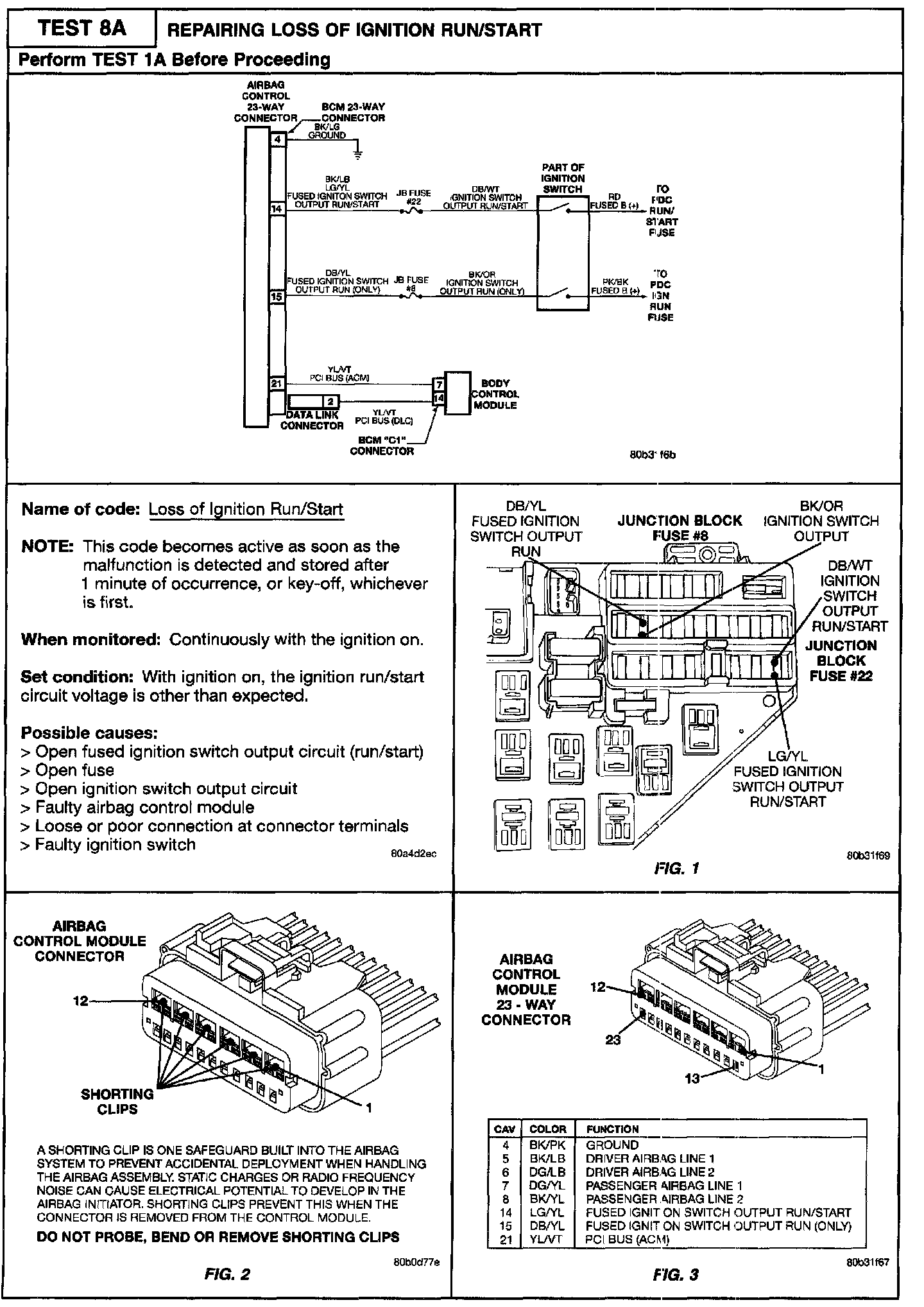

Test 8A Part 1 Of 2:
Related Images:

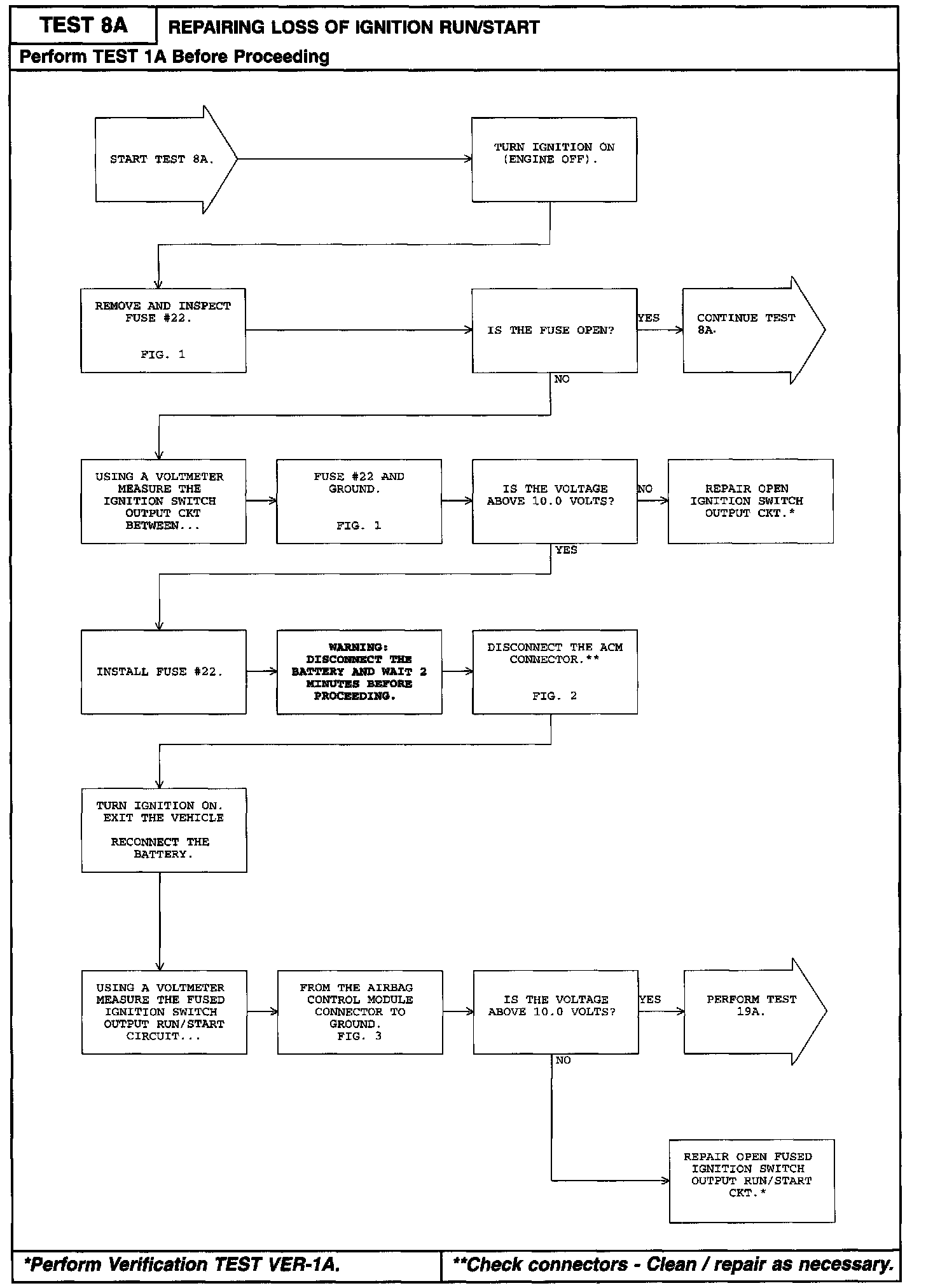

Test 8A Part 2 Of 2:
