Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 19A Airbag Control Module Replacement Procedure

19A Airbag Control Module Replacement Procedure

Related Images:

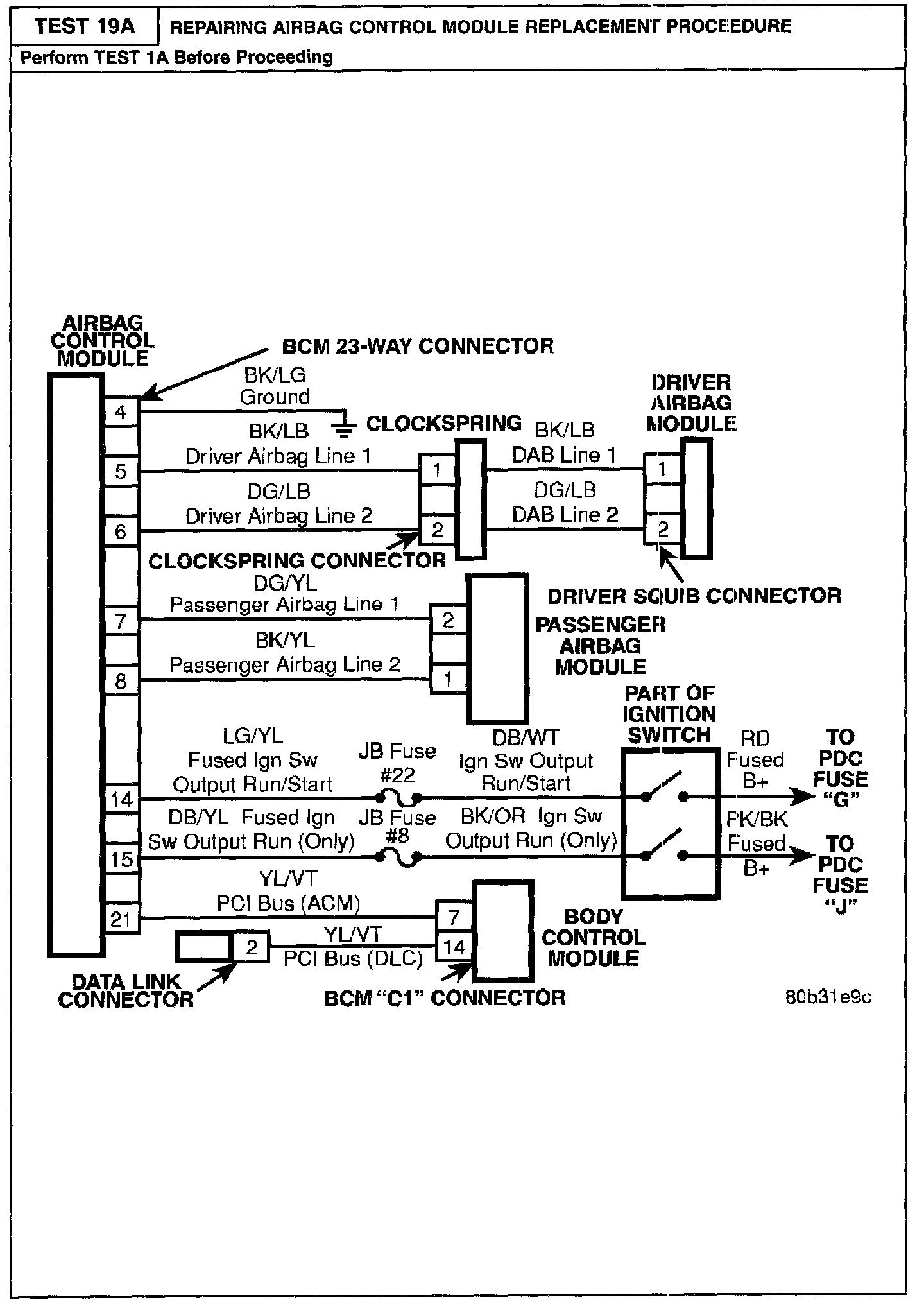

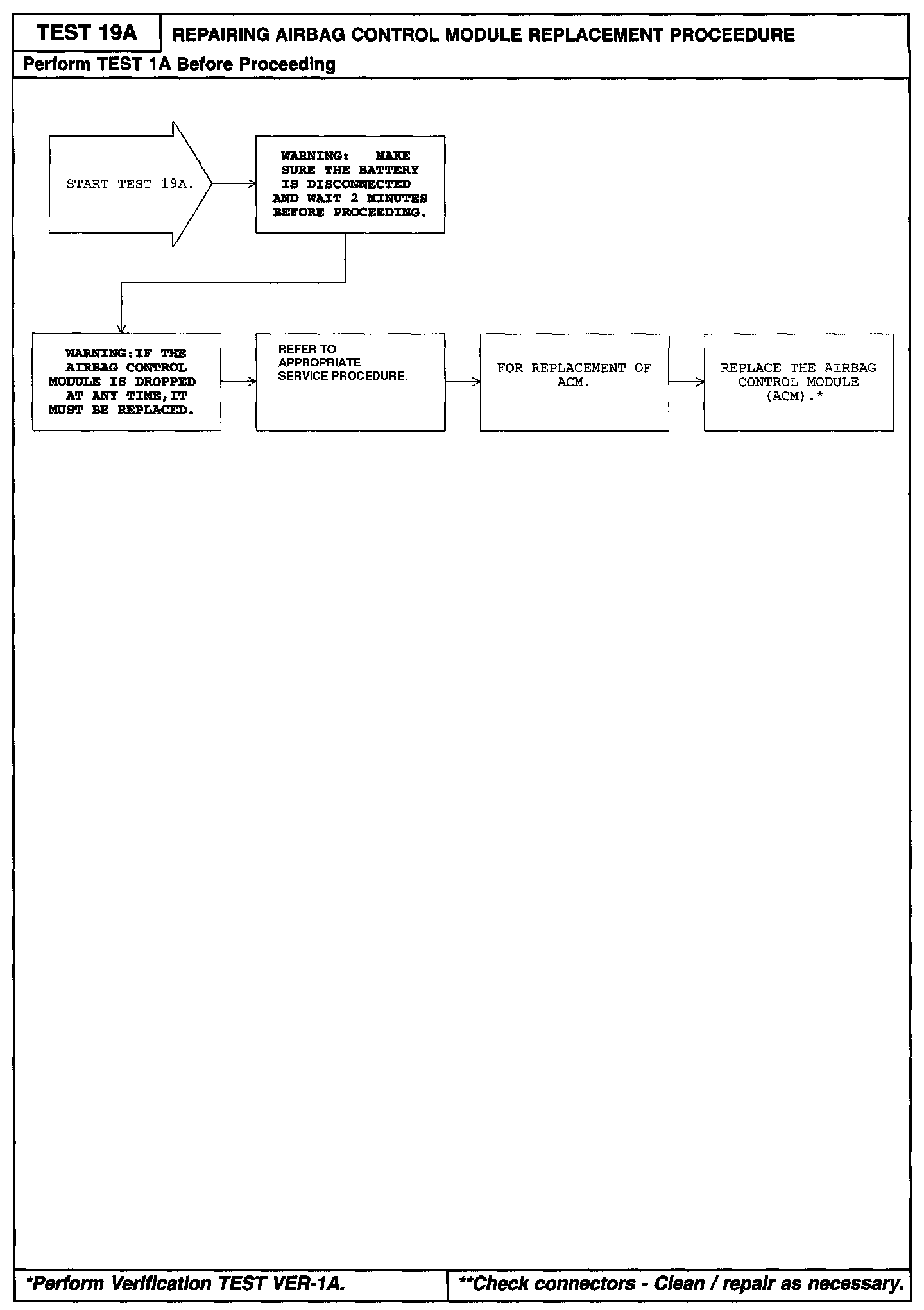

Test 19A:
