A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>

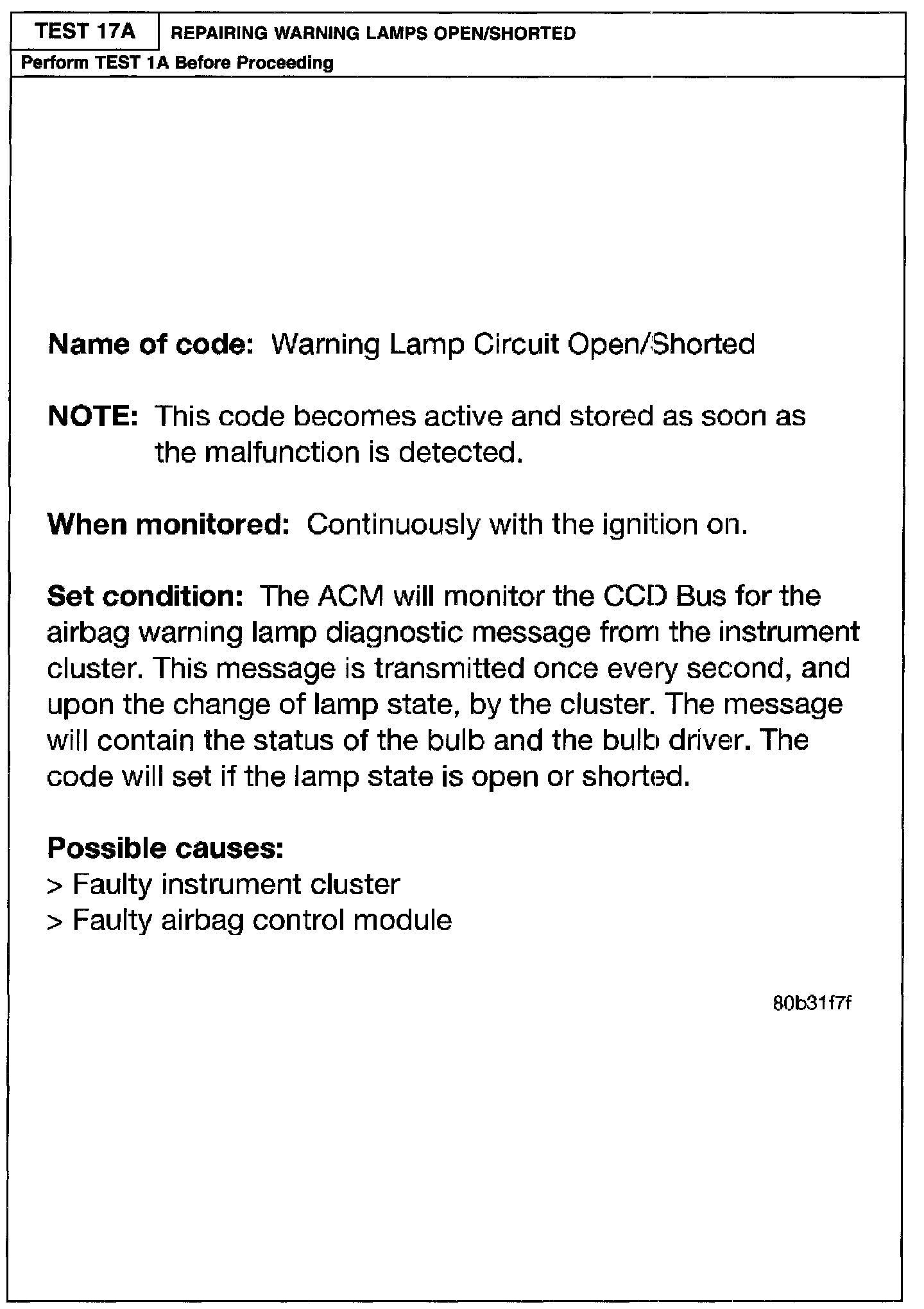

17A Warning Lamps Open/Shorted
17A Warning Lamps Open/Shorted
Related Images:

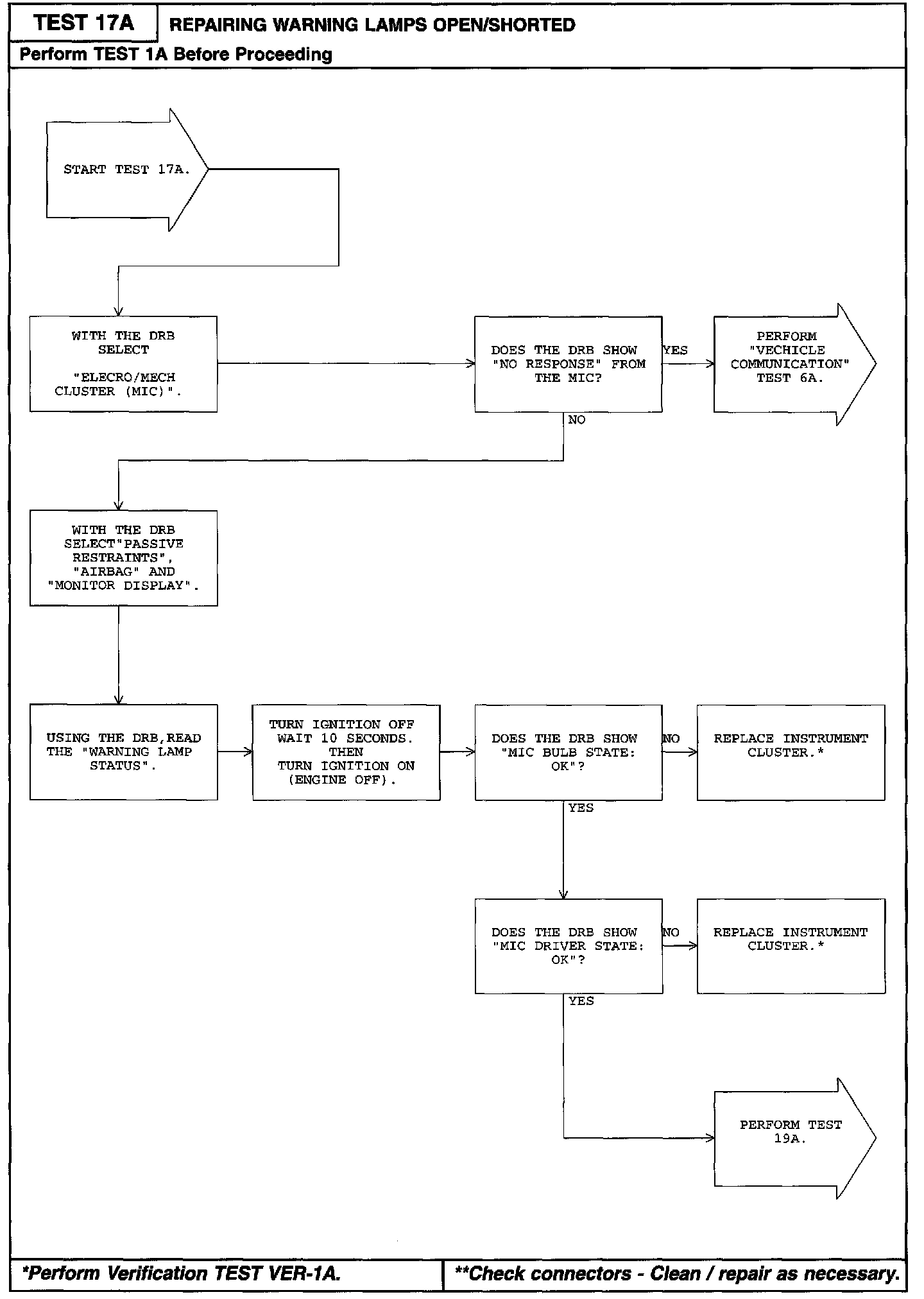

Test 17A:
