A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
13A Passenger Squib Circuit Shorted
13A Passenger Squib Circuit Shorted
Related Images:

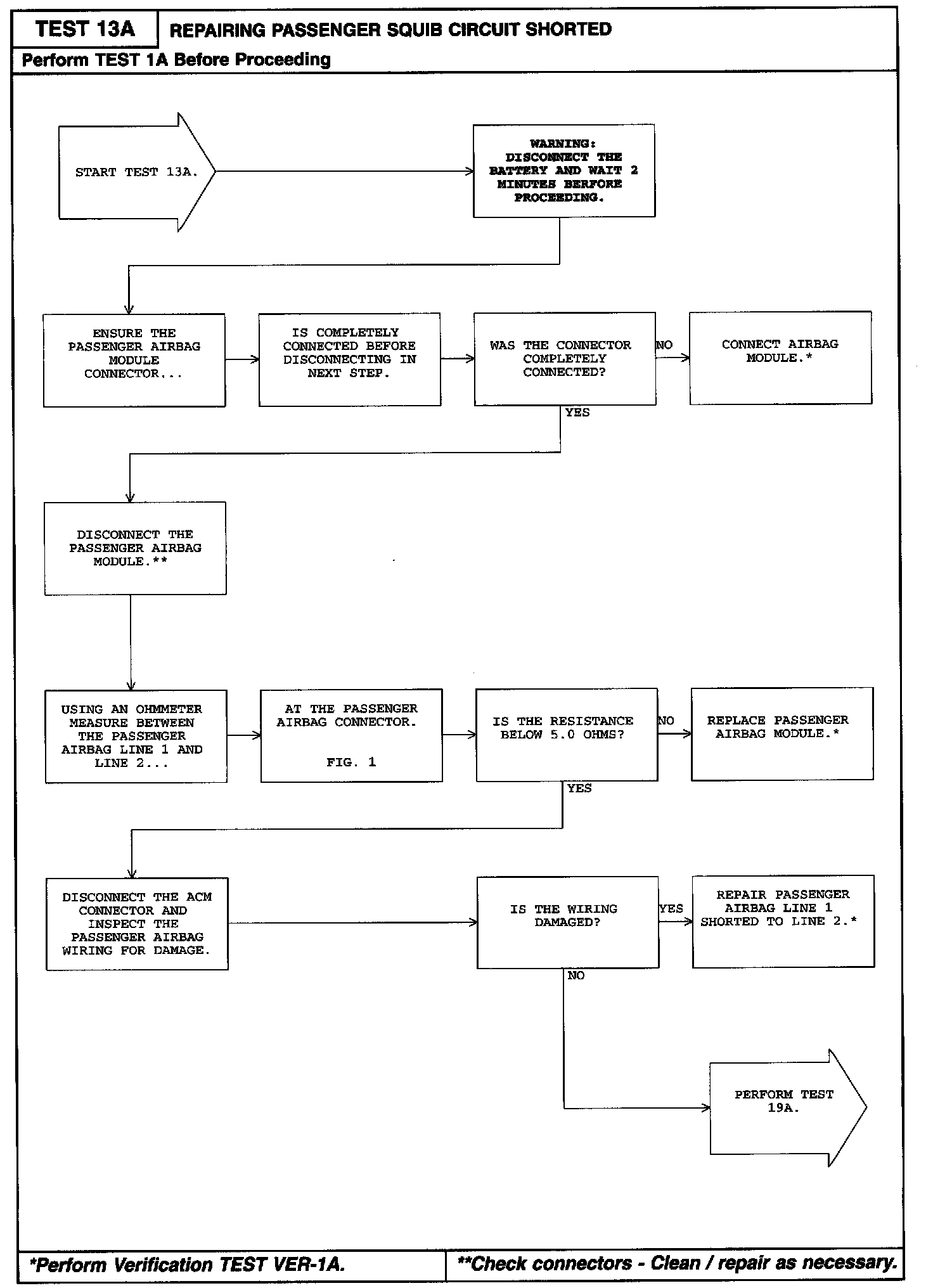

Test 13A:
