Alternator: Service and Repair

REMOVAL

Wiring Connections:

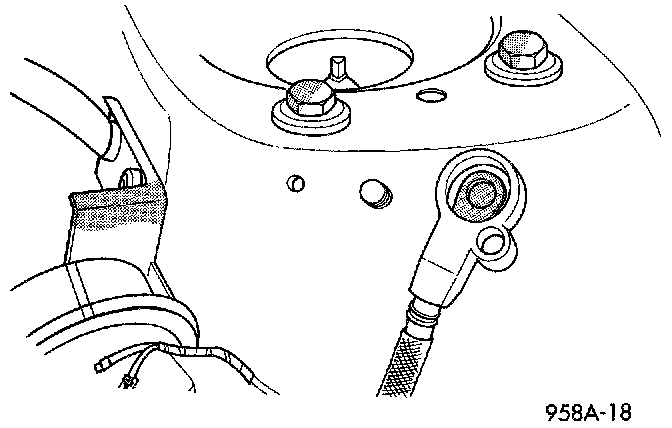

Battery Cable At Shock Tower:

1. Disconnect battery negative cable from remote negative terminal on shock tower.
2. Unplug field circuit from generator.

Generator:

3. Remove B+ terminal cover by spreading the cover with a small flat blade tool.
4. Remove the B+ terminal nut and wire.

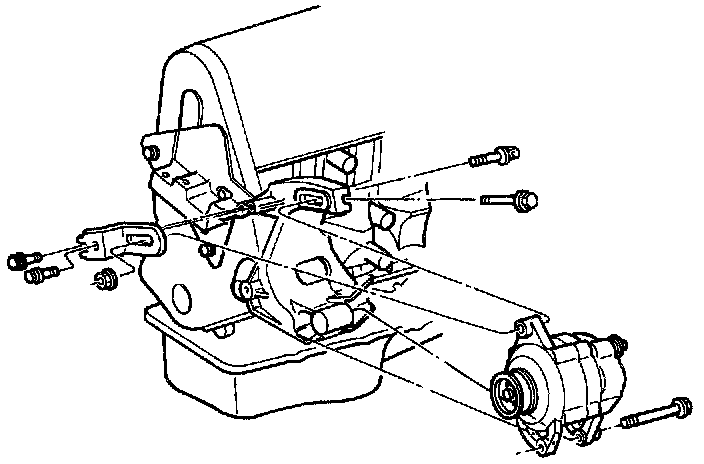

5. Loosen adjusting T-bolt, but do not remove.
6. Loosen pivot bolt, but do not remove.
7. Loosen adjusting bolt to allow removal of the generator drive belt. Refer to the Cooling System.
8. Remove adjusting T-bolt.
9. Remove pivot bolt.
10. Remove ABS braking unit by removing the two lower plate mounting bolts. Refer to the Brake section.
11. Remove Coolant Overflow bottle. Refer to the Cooling System.
12. Remove by sliding alternator under the air conditioning lines towards passenger side of vehicle.
13. Remove generator from vehicle.

INSTALLATION
1. For installation, reverse above procedures. Tighten all fasteners to the proper torque.
