Qualifying A "No Start" Condition

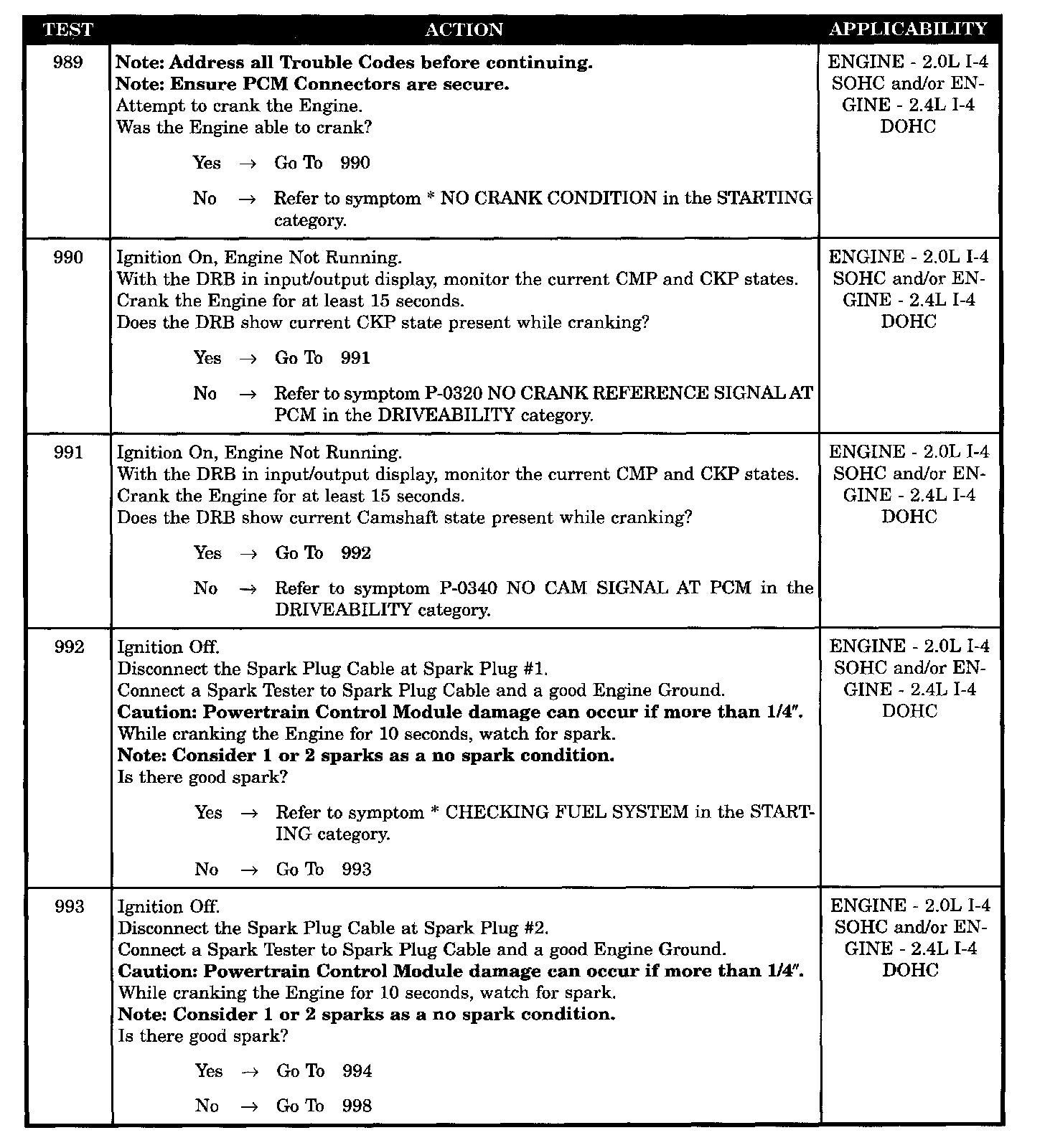

Tests 989 - 993:

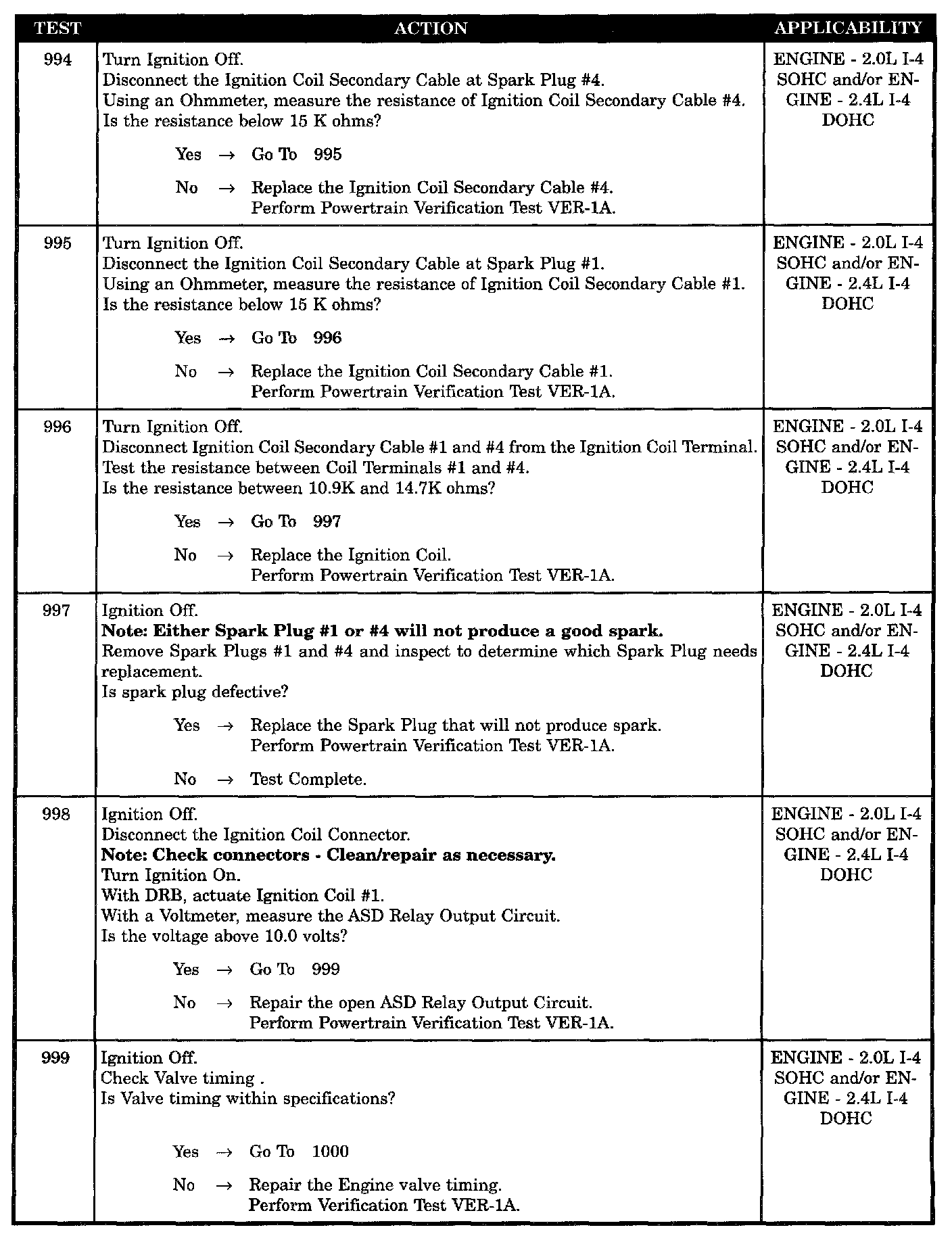

Tests 994 - 999:

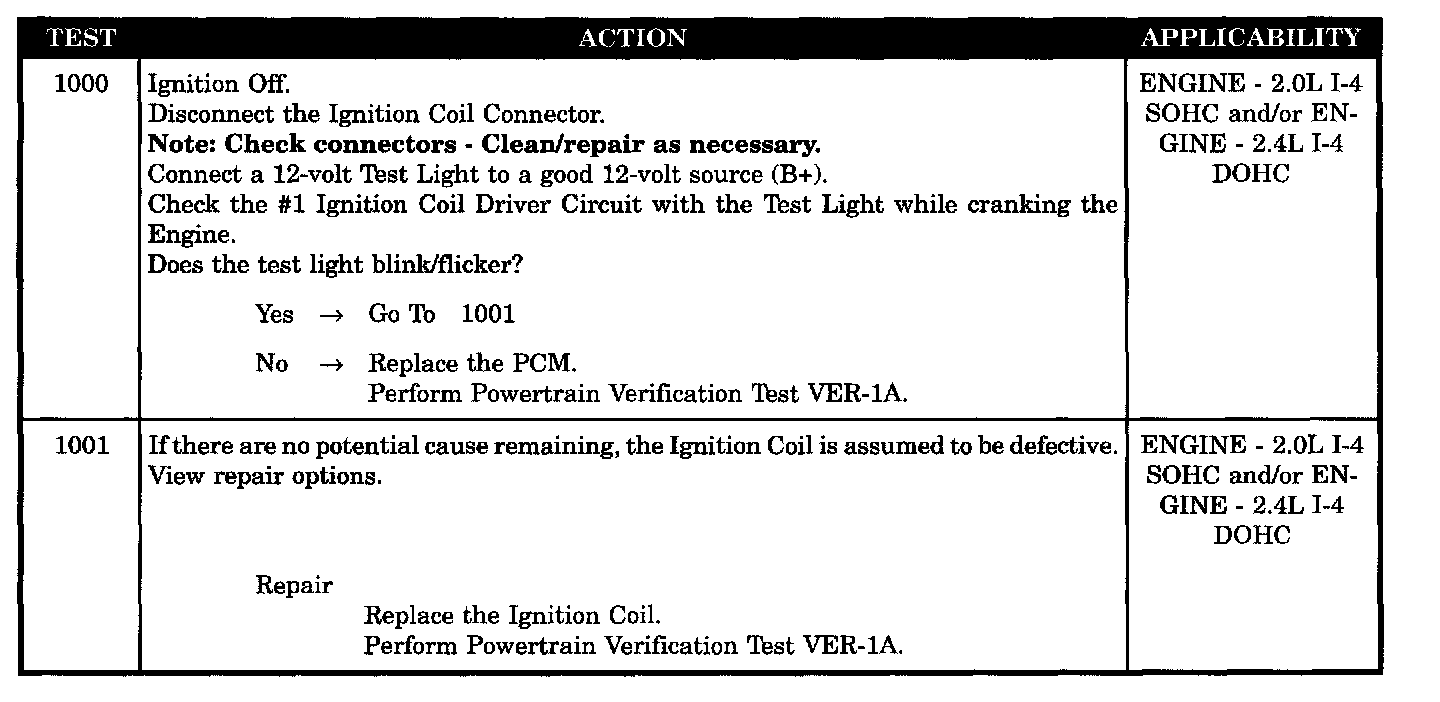

Tests 1000 - 1001:







SYMPTOM: * QUALIFYING A NO START CONDITION

POSSIBLE CAUSES
- ASD relay output circuit open
- Ground circuit open
- Distributor cap and rotor defective
