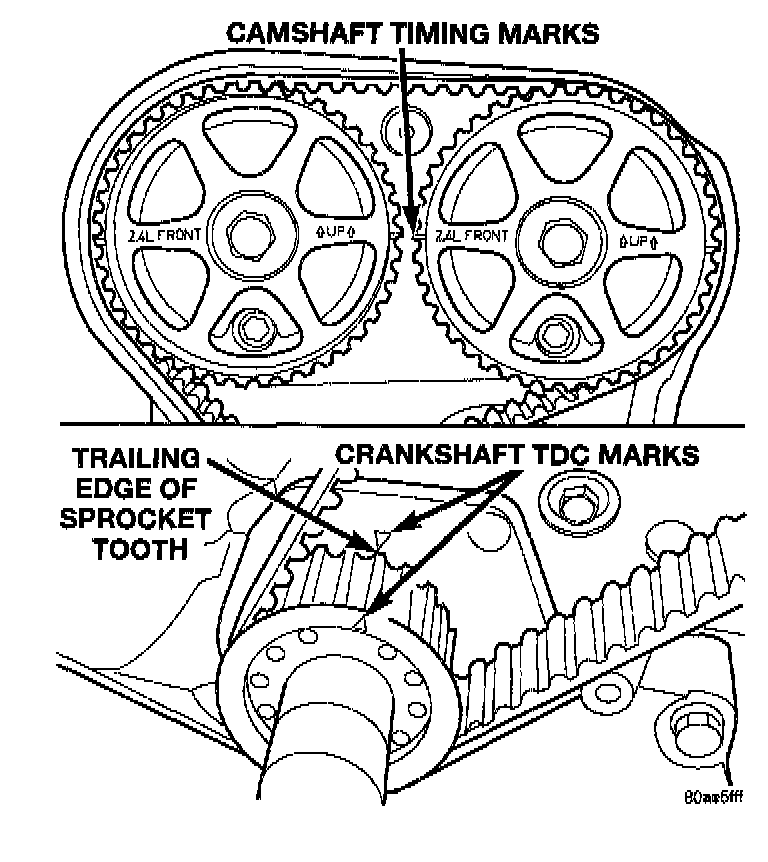

Timing Component Alignment Marks: Locations

Crankshaft And Camshaft Timing:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:Service and Repair
