Rocker Arm Replacement

Removal
1. Remove cylinder head cover.
2. Remove timing belt, sprockets and covers.
3. Remove camshaft.

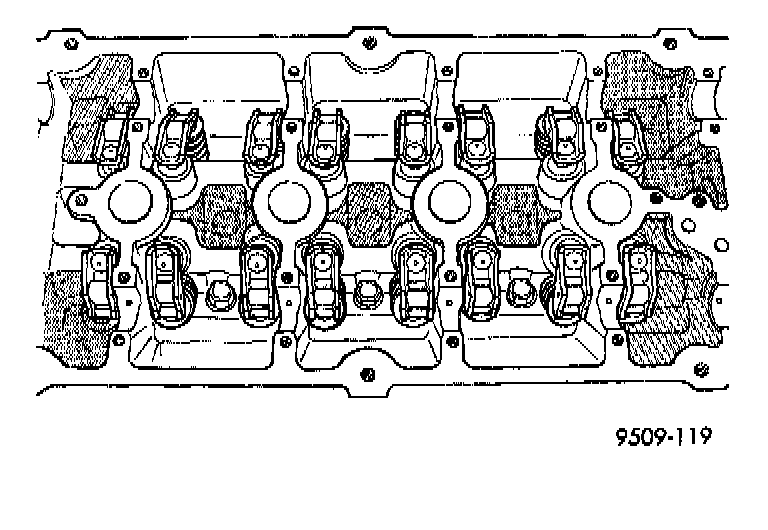

CAUTION: If cam follower assemblies are to be reused, always mark position for reassembly in their original positions.

4. Remove cam follower assemblies from cylinder head.

Inspection

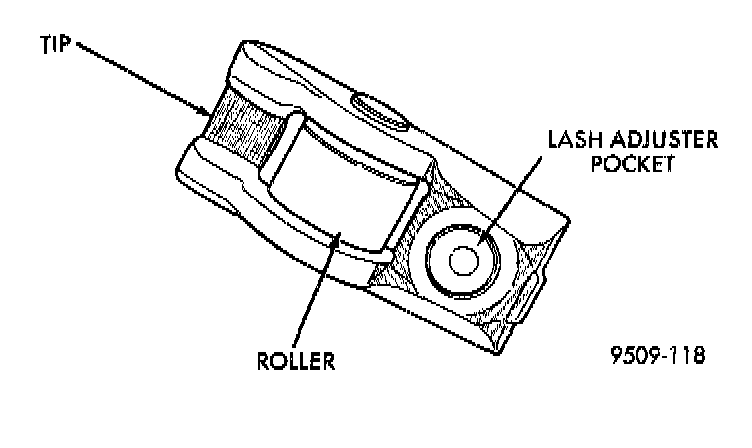

Cam Follower Assembly:

Inspect the cam follower assembly for wear or damage. Replace as necessary.

Installation

Cam Follower Assemblies - Installation:

1. Lubricate with clean oil and install cam follower assemblies in their original position on the hydraulic adjuster and valve stem.
2. Install the camshafts.
3. Install timing belt, sprockets and covers.
4. Install cylinder head cover.
