Fitting Bearings
Fitting Bearings
Refer to Measuring Main Bearing Clearance in Standard Service Information. For
Crankshaft
specifications refer to Crankshaft Specification Chart.

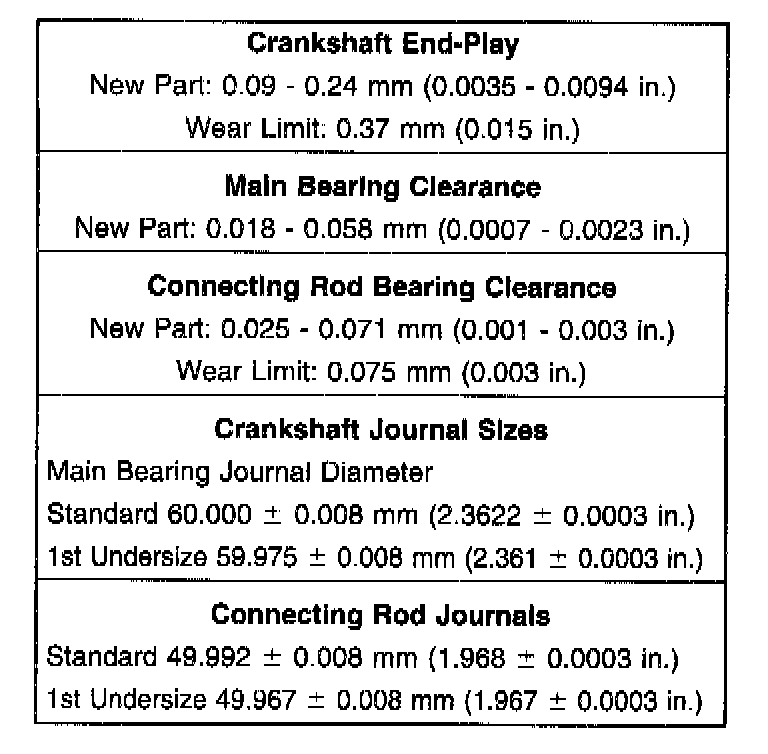

Crankshaft
Specification Chart
