Home >> Chrysler >> 1998 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Spray Nozzle >> Testing and Inspection

Windshield Washer Spray Nozzle: Testing and Inspection

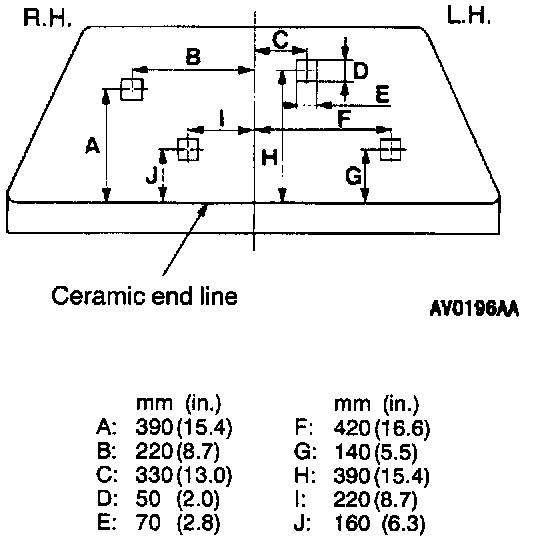

Adjust the ejection angle by moving the balls in the nozzle.
