Transmission Mount: Service and Repair

REMOVAL
1. Remove air cleaner assembly.
2. Remove battery.
3. Remove engine roll stopper. Refer to Engine.
4. Remove engine mount. Refer to Engine.

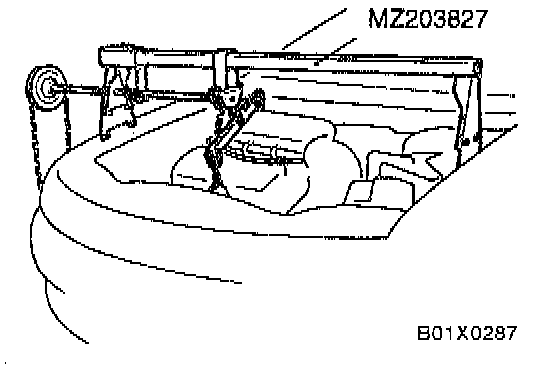

5. Slightly lower the transaxle, and then remove the transaxle mount bracket.

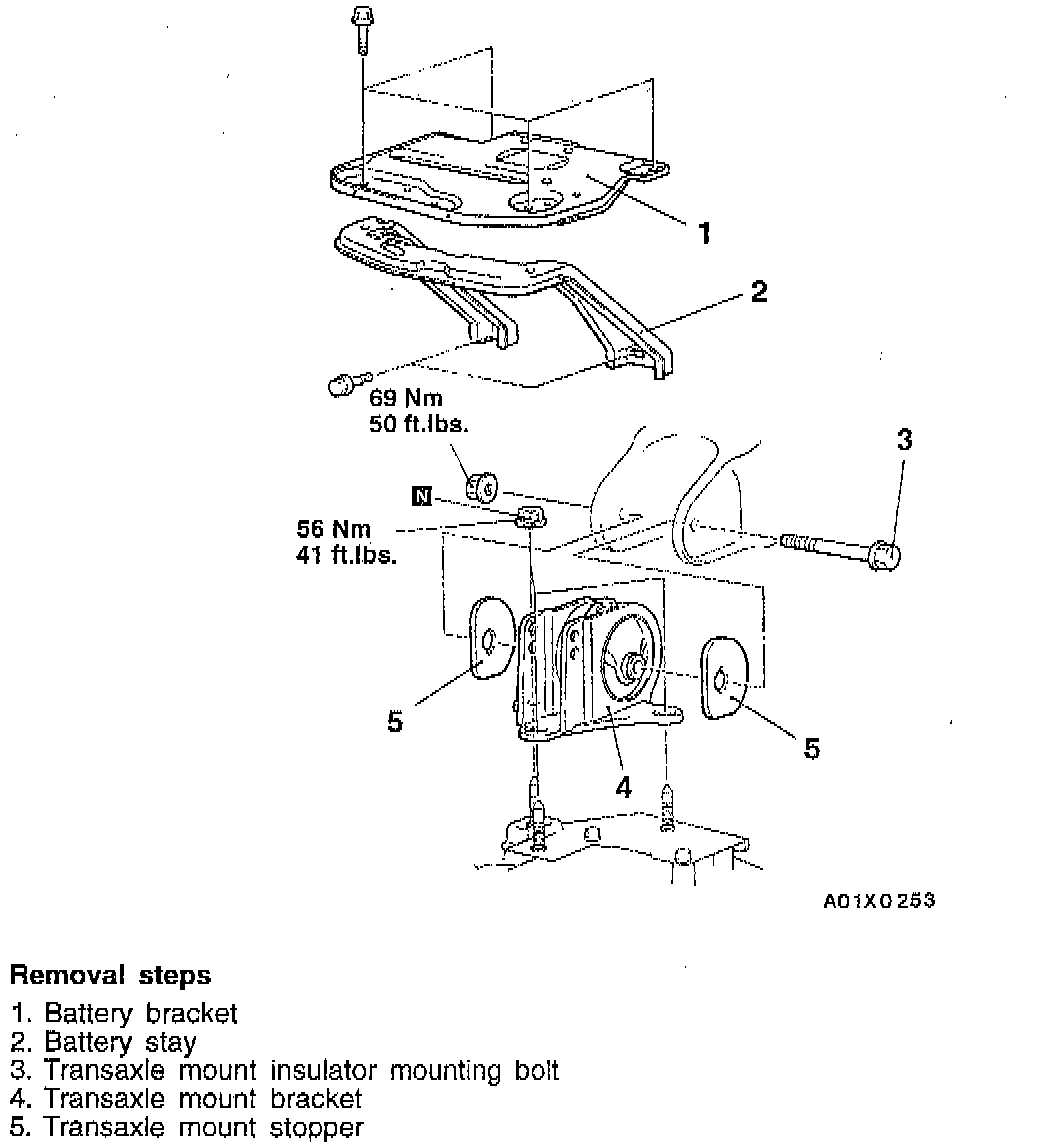

6. Follow removal procedure in illustration.

INSTALLATION
1. Follow removal procedure in reverse order, noting the following.

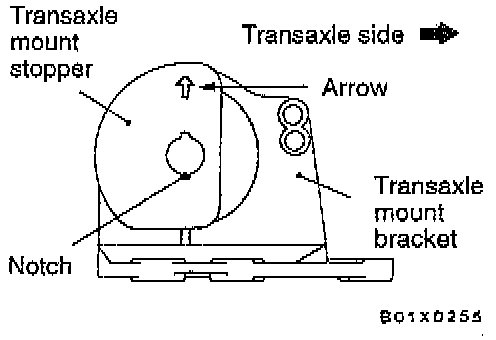

2. Clamp the transaxle mount stopper so that the arrow points in the shown direction.
