Transmission Cooler: Service and Repair

REMOVAL

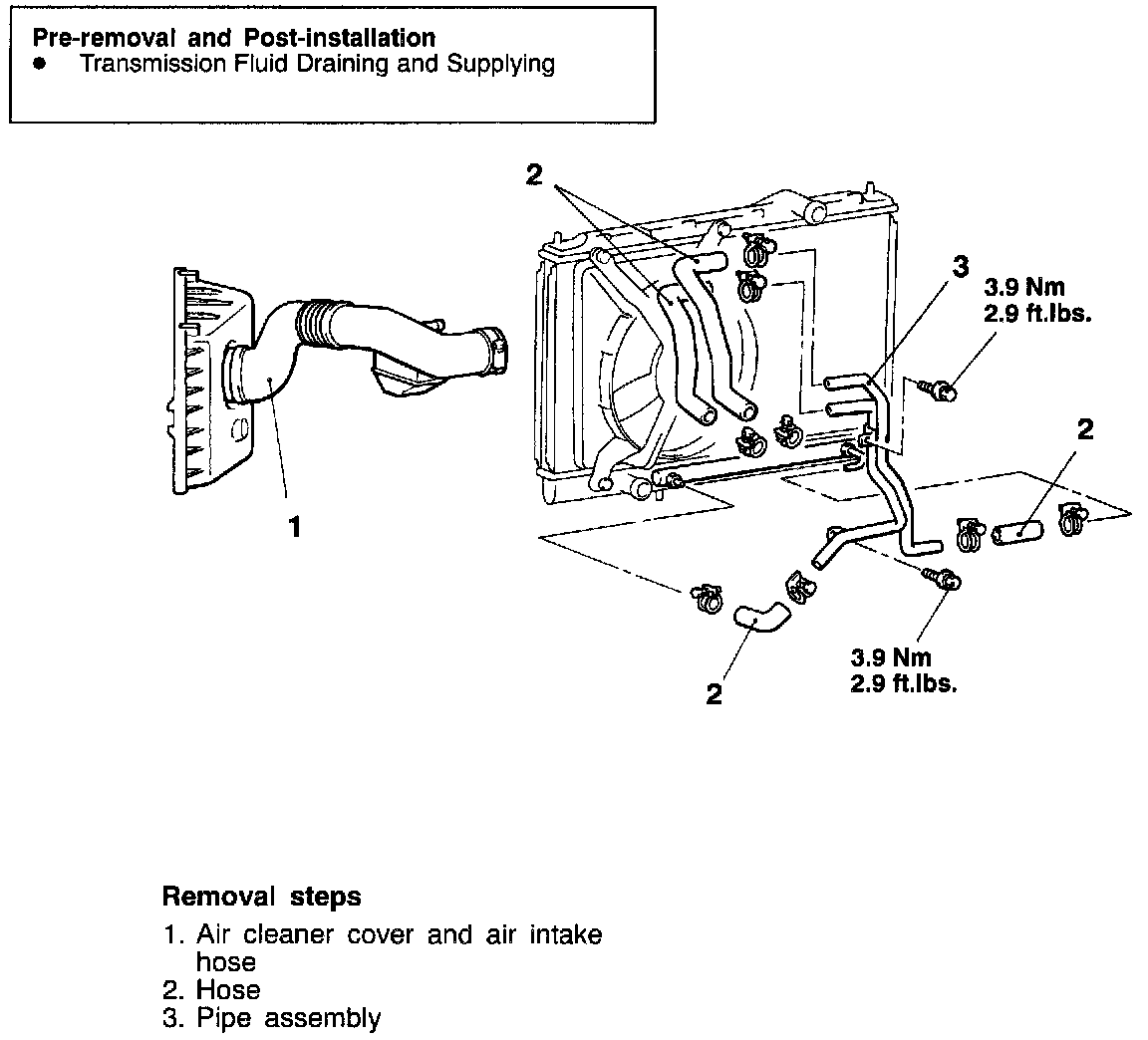

Follow removal steps outlined in illustration.

INSPECTION
- Check the hose for cracks, damage and clogs.
- Check for rusted or clogged radiator oil cooler.
- Check oil cooler fins for bents, damage, and clogged worth foreign matter.

INSTALLATION
Installation in reverse order as removal.
