Replacement

REMOVAL

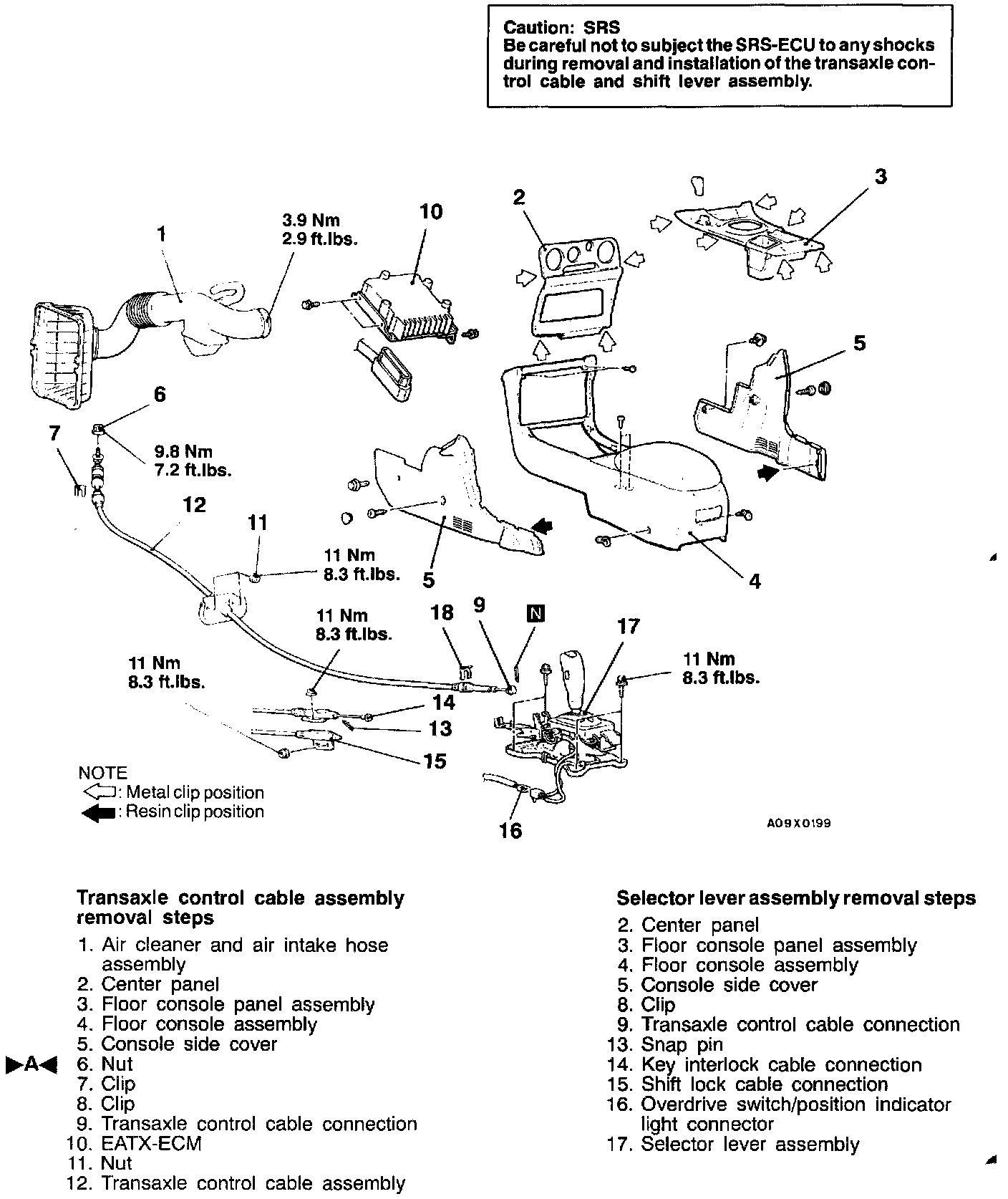

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Installation Service Point





-A-Nut Installation.
1. Put the selector lever in the "N" position.

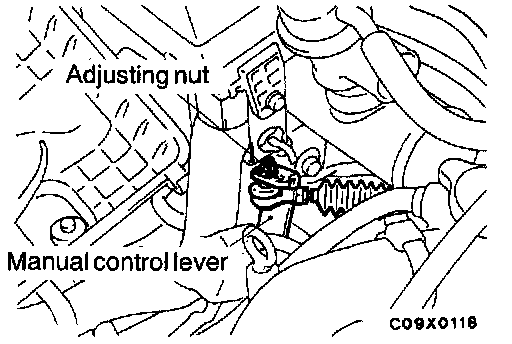

2. Loosen the adjusting nut, gently pull the transaxle control cable in the direction of the arrow and tighten the nut.
