Home >> Chrysler >> 1998 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Linkage >> Shift Cable >> Service and Repair

Shift Cable: Service and Repair

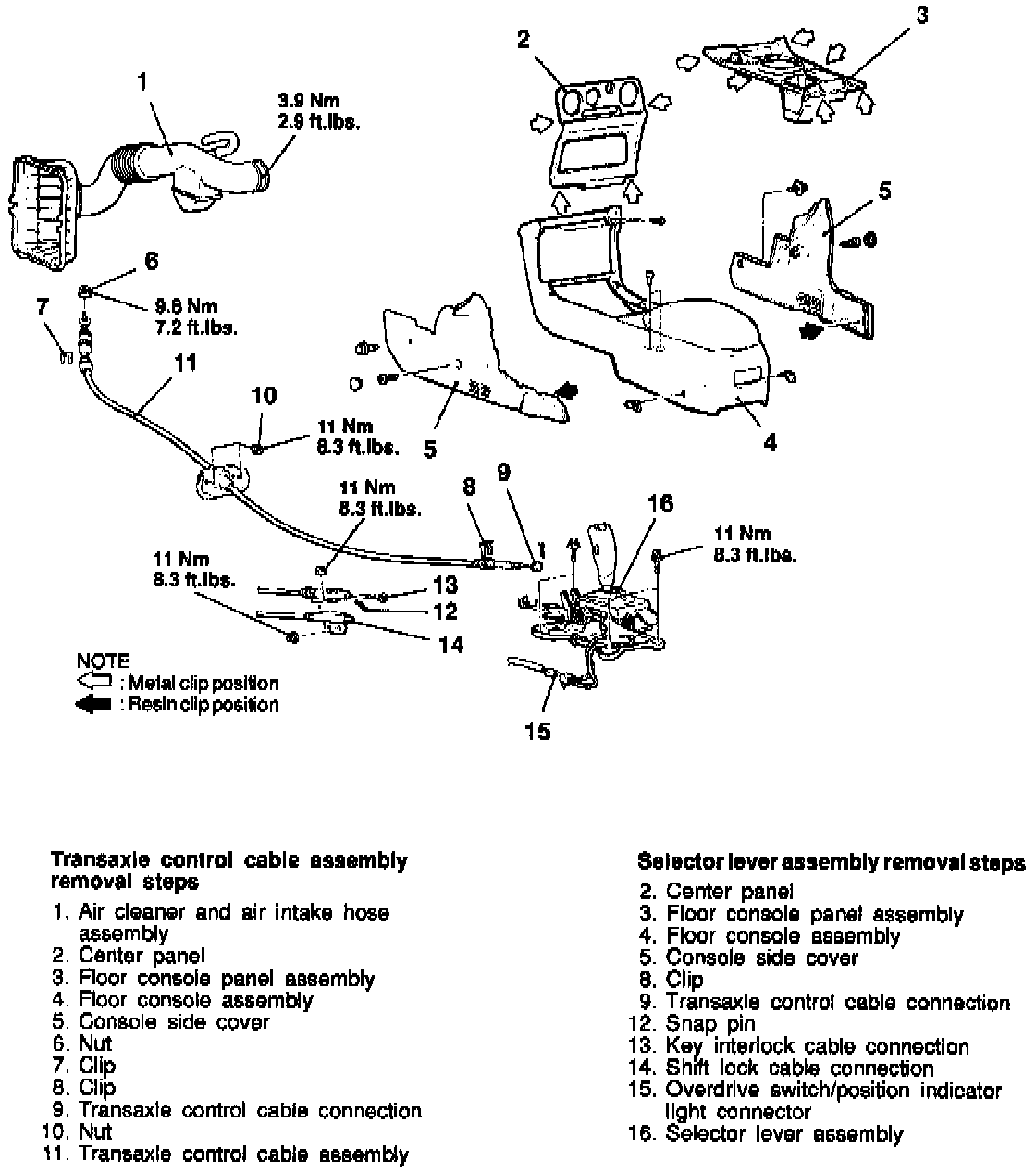

Refer to Fig.4 when replacing transaxle control cable.
