Pump Seal Relacement





DISASSEMBLY

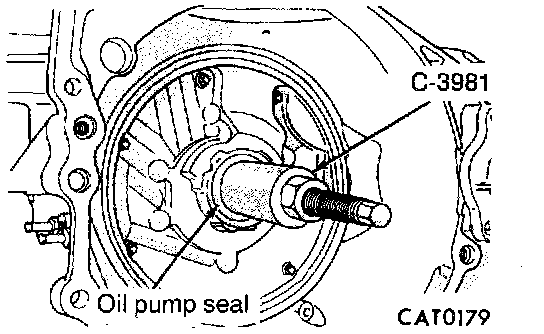

1. Remove oil pump seal with Seal Remover C-3981.





REASSEMBLY

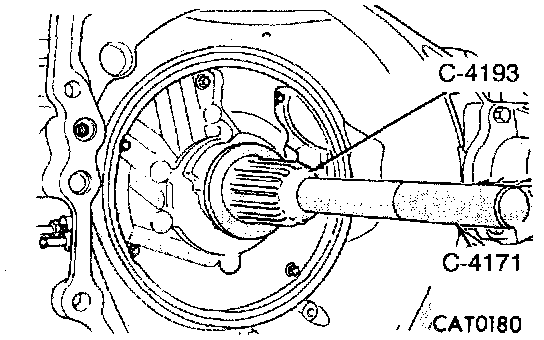

1. Install new oil pump seal with Drive Handle C-4171 and Seal Installer C-4193.
