Front

REMOVAL

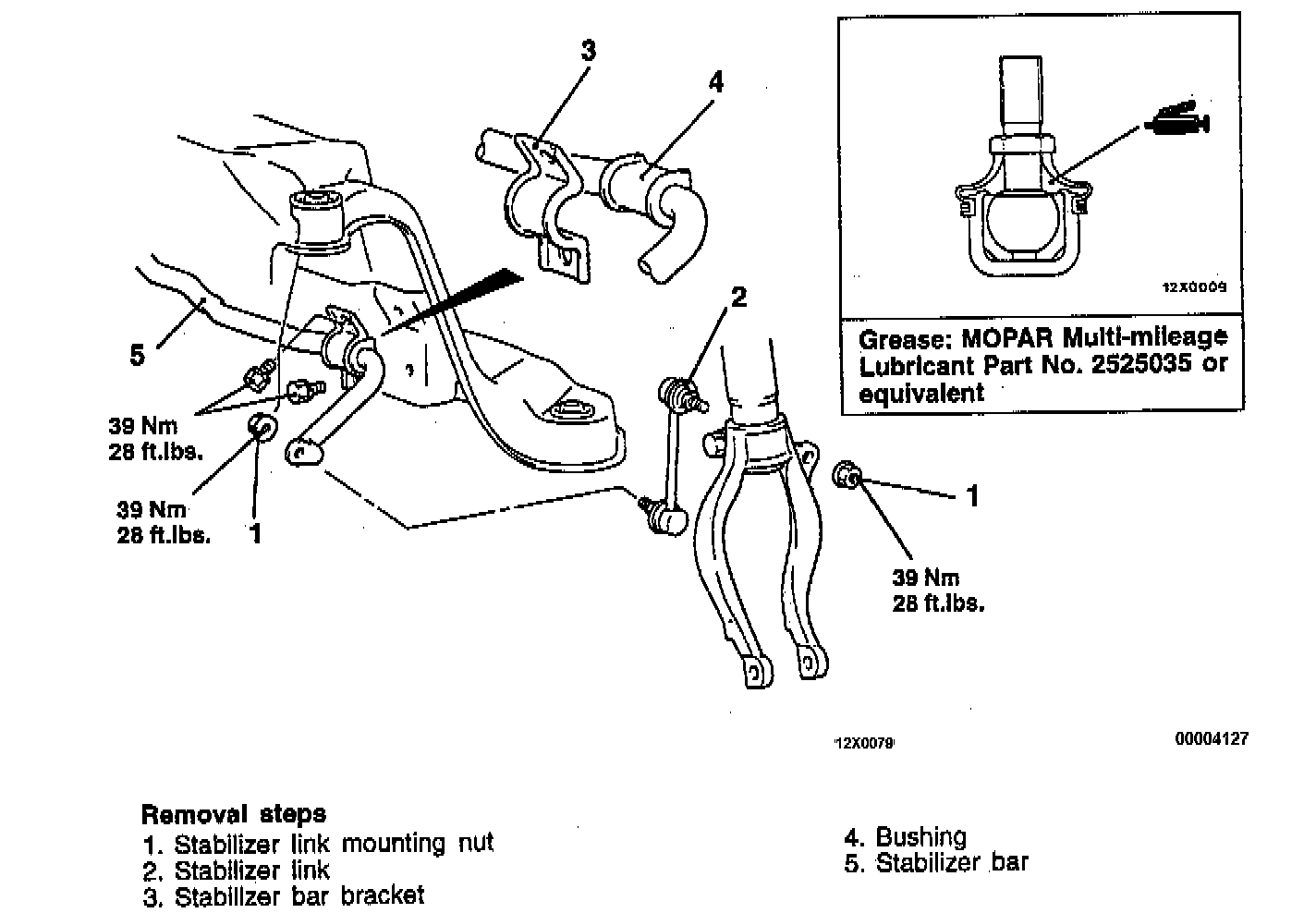

Follow removal steps as outlined in the illustration.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the stabilizer bar for deterioration or damage.
- Check all bolts for condition and straightness.

INSTALLATION
Follow removal steps in reverse order for installation, noting the following.

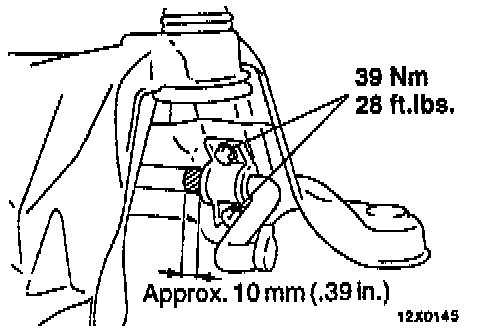

1. Position the stabilizer bar so that the marking on the stabilizer bar and the edge of the bracket becomes the reference value, and then tighten the stabilizer bar bracket mounting bolt.
