Steering: Testing and Inspection

STEERING ANGLE CHECK

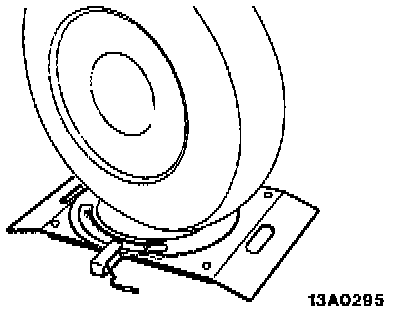

1. Locate front wheels on turning radius gauge and measure steering angle.

High Price Models:
Inner Wheel 32.5° +/-2°
Outer Wheel +27.0°

Premium Price Models:
Inner Wheel 31.5° +/-2°
Outer Wheel +26.5°

2. When the angle is not within the standard value, the toe is probably incorrect. Adjust toe and recheck steering angle.
