Troubleshooting Guide
Troubleshooting Guide

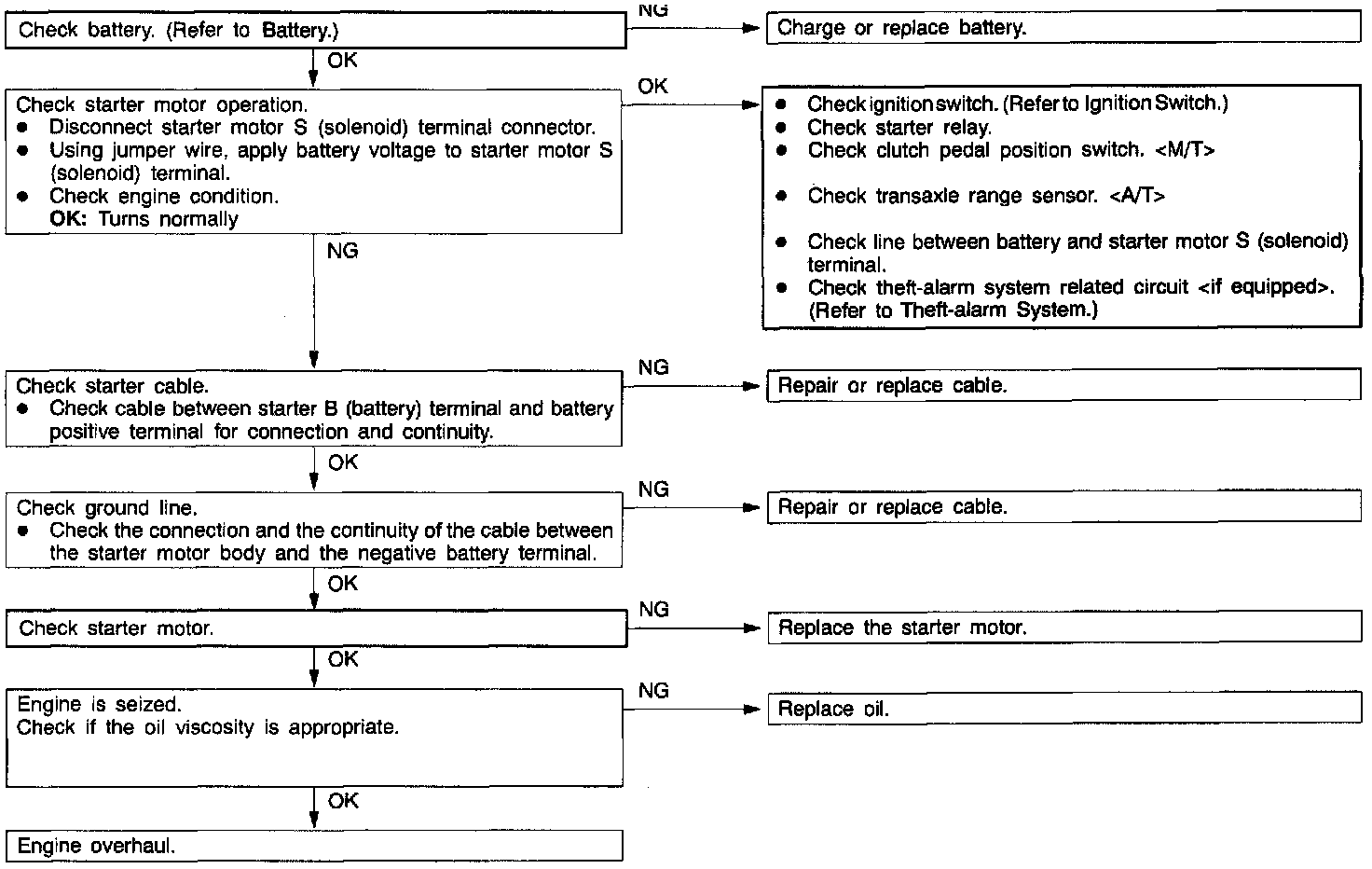

The
Starting System
troubleshooting guide is shown in the chart above.
