Passenger's Side

CAUTION:
1. Never attempt to disassemble or repair the air bag module or clock spring. If faulty, replace it.
2. Do not drop the air bag module or clock spring or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust are detected.
3. The air bag modules should be stored on a flat surface and placed so that the pad surface is facing upward.
Do not place anything on top of the air bag modules.
4. Do not expose the air bag module to temperature over 93° C (200° F).
5. After deployment of an air bag, replace the air bag modules. Check the clock springs and replace them with new ones if any problem is found.
6. Wear gloves and safety glasses when handling an air bag that has deployed.
7. An undeployed air bag module should only be disposed of in accordance with the procedures. Service and Repair.

Pre-Removal Operation
- Set the steering wheel and the front wheels to the straight ahead position, and then remove the ignition key.




REMOVAL SERVICE POINTS
Step 1 --- Negative (-) Battery Cable Disconnection
Disconnect the negative battery cable from the battery and tape the terminal.

CAUTION: Wait at least 60 seconds after disconnecting the battery cable before doing any further work. Vehicle Damage Warnings.

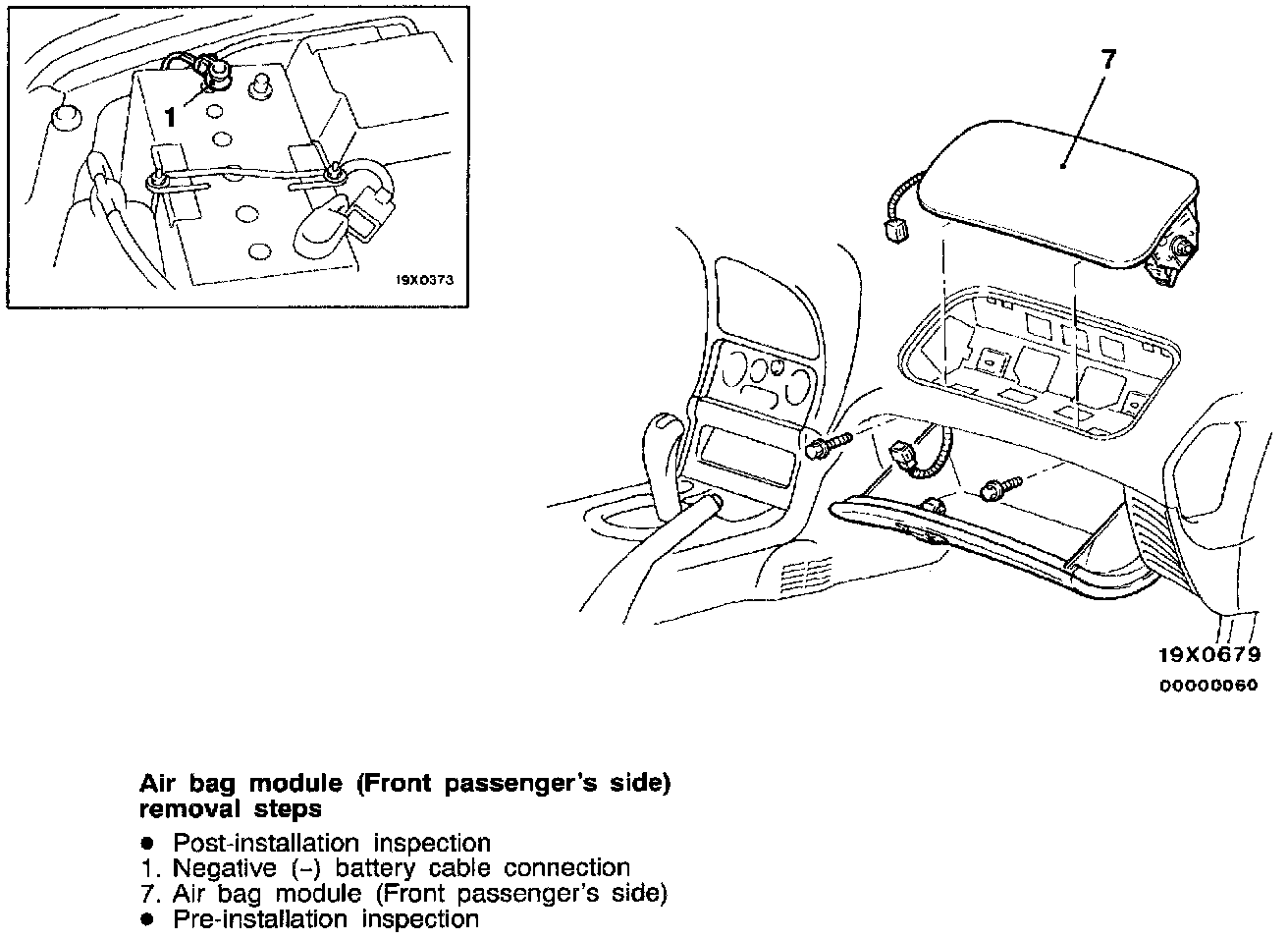

Step 7 --- Air Bag Module (Front Passenger's Side) Removal





CAUTION: The removed air bag module should be stored in a clean, dry place with the pad cover facing up.

INSTALLATION SERVICE POINTS
Pre-installation Inspection
1. When installing the new air bag module and clock spring, refer to "INSPECTION".

CAUTION: Dispose of an air bag module only according to the specified procedure. Service and Repair

2. Connect the battery (-) terminal.




3. Connect the scan tool to the data link connector, then check diagnostic codes.

CAUTION: Turn the ignition switch off before disconnecting or connecting the scan tool.

4. Turn the ignition key to the "ON" position.
5. Conduct diagnostic test using the scan tool to ensure entire SRS operates properly.




6. Turn the ignition key to the "LOCK" position. Disconnect the negative battery cable and tape the terminal to prevent accidental connection and airbags deployment.

CAUTION: Wait at least 60 seconds after disconnecting the battery cable before doing any further work Vehicle Damage Warnings.




Post-installation Inspection
1. After installing the clock spring, the steering wheel, the column covers and the air bag module, check steering wheel for noise, binds or difficult operation.
2. Reconnect the negative battery terminal. Turn the ignition key to the "ON" position. Does the "SRS" warning light illuminate for about 7 seconds, turn OFF and then remain OFF? If yes, SRS system is functioning properly. If no, Testing and Inspection.

INSPECTION
Air Bag Module Check




If any component damage is found during the following inspection, replace the air bag module with a new one. Dispose of the old one according to the specified procedure. Service and Repair

CAUTION: Never attempt to measure the circuit resistance of the air bag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental air bag deployment will result in serious personal injury.

1. Check pad cover for dents, cracks or deformities.
2. Check the air bag module for dents, cracking or deformation.
3. Check hooks and connectors for damage, terminals for deformities, and harness for binds.
4. Check air bag inflator case for dents, cracks or deformities.




5. Install the air bag module to the steering wheel or dash to check fit or alignment.
