44 Throttle Position Sensor Circuit

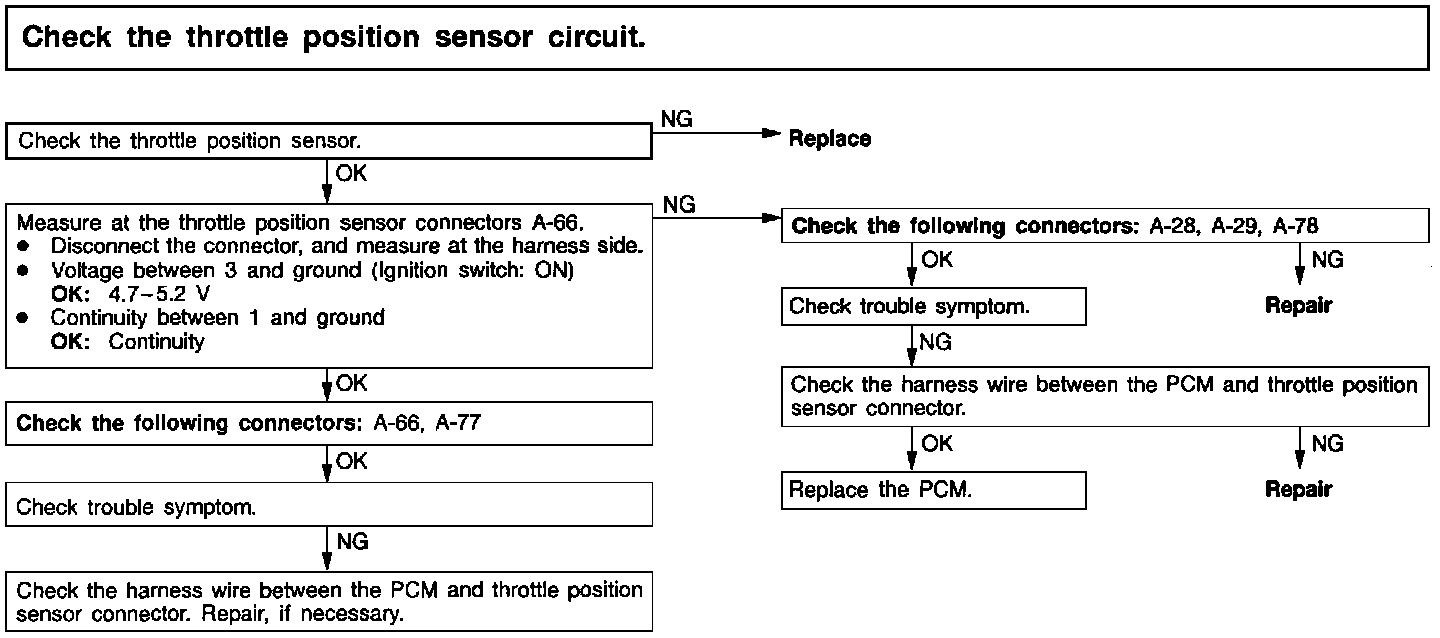

Inspection Procedure 44:






Check the throttle position sensor circuit.
