40 Intake Air Temperature Circuit

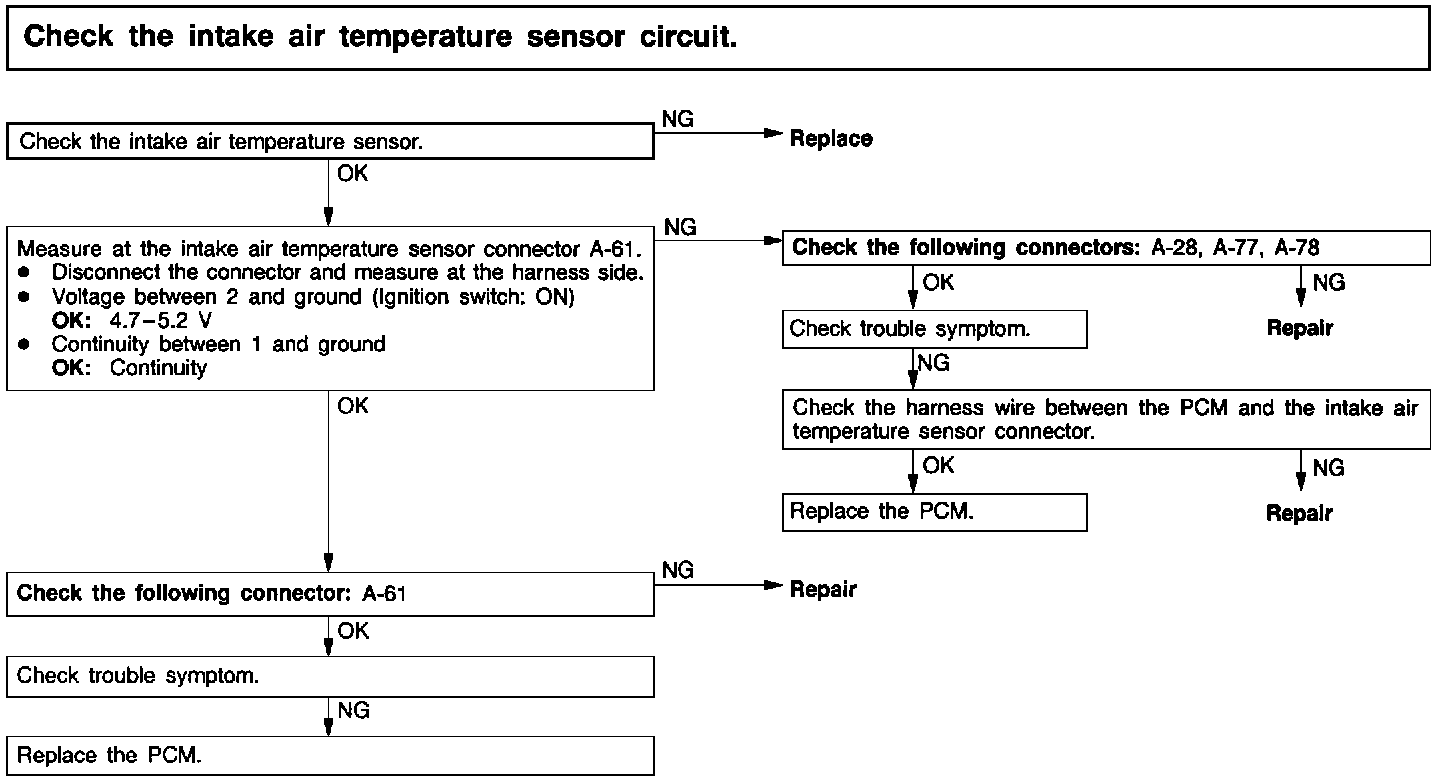

Inspection Procedure 40:






Check the intake air temperature sensor circuit.
