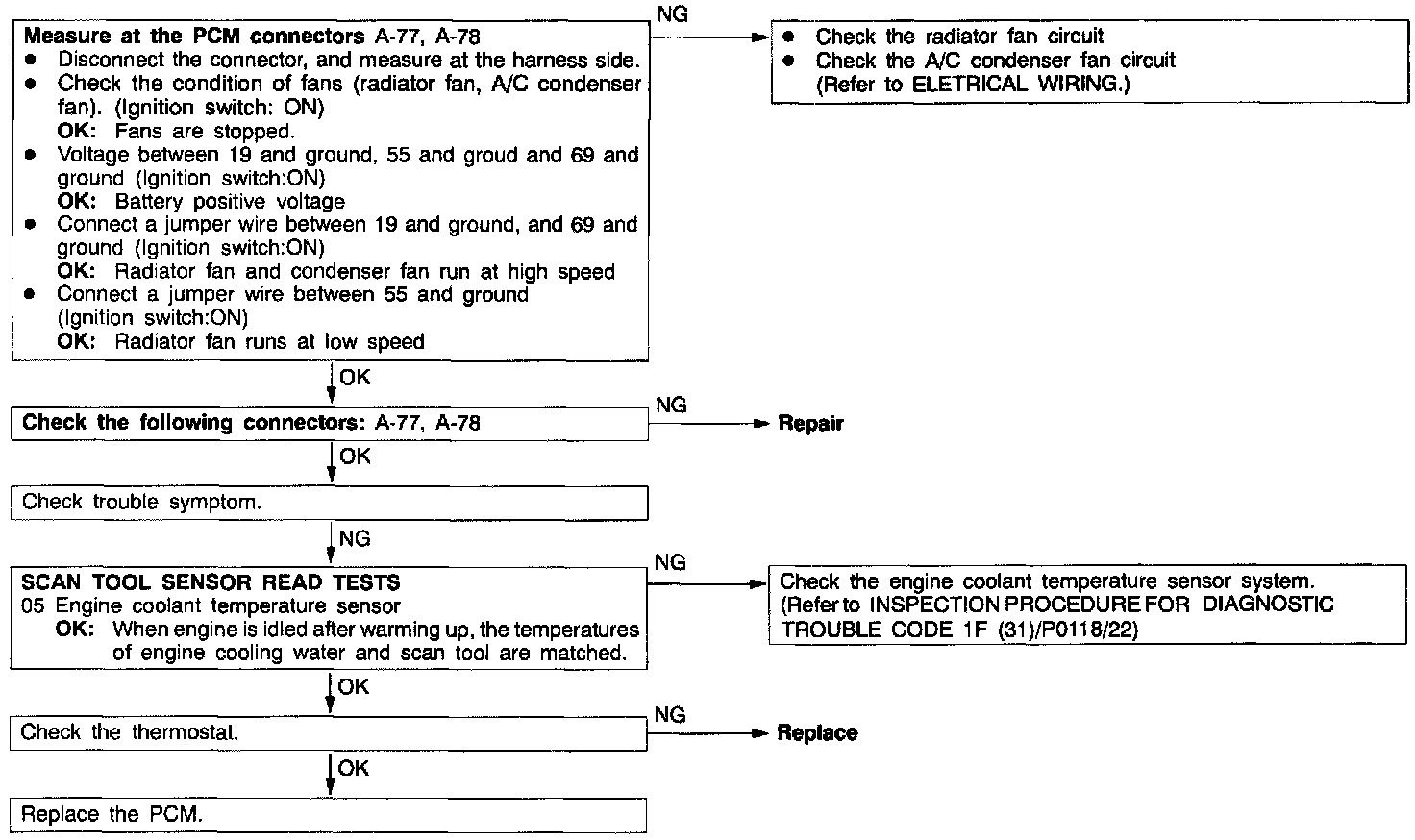

23 Fans (Radiator Fan, A/C Condenser Fan) Are Inoperative

Comment: The fan motor relay is controlled by the power transistor inside the PCM turning ON and OFF.

Probable Cause
- Malfunction of fan motor relay
- Malfunction of fan motor
- Defective thermostat
- Improper connector contact, open circuit or short-circuited harness wire
- Disconnected PCM ground wire
- Malfunction of the PCM
