Inflation Pressure and Wear Check





INFLATION PRESSURE CHECK

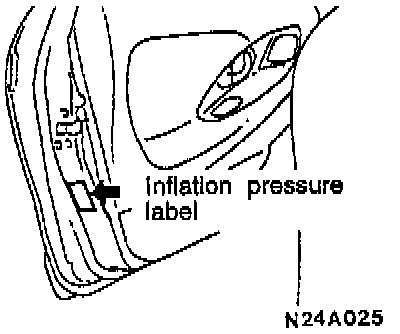

Refer to the inflation pressure label on the driver's side door.





WEAR CHECK
Measure the tread depth of tires. The wear limit is 1.6 mm (0.06 inch). If the remaining tread depth is less than the limit, replace the tire.

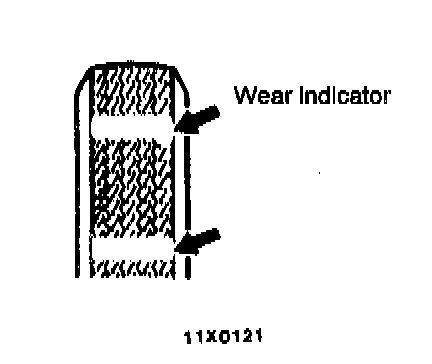

NOTE: When the tread depth of tires is reduced to 1.6 mm (0.06 inch) or less, wear indicators will appear.
