Headlight Aiming
>>
Vertical Adjusting
Vertical Adjusting

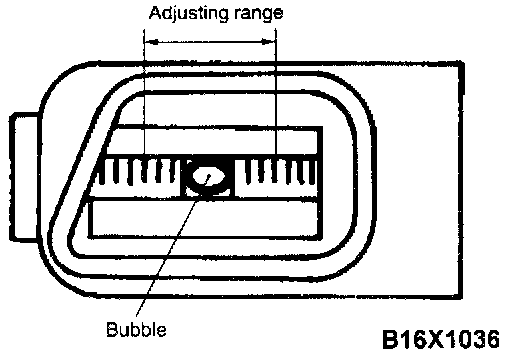

Insert a screwdriver in the vertical adjusting hole. Rotate the gear to set the bubble in the vertical adjusting gauge to the position inside the adjusting range.
