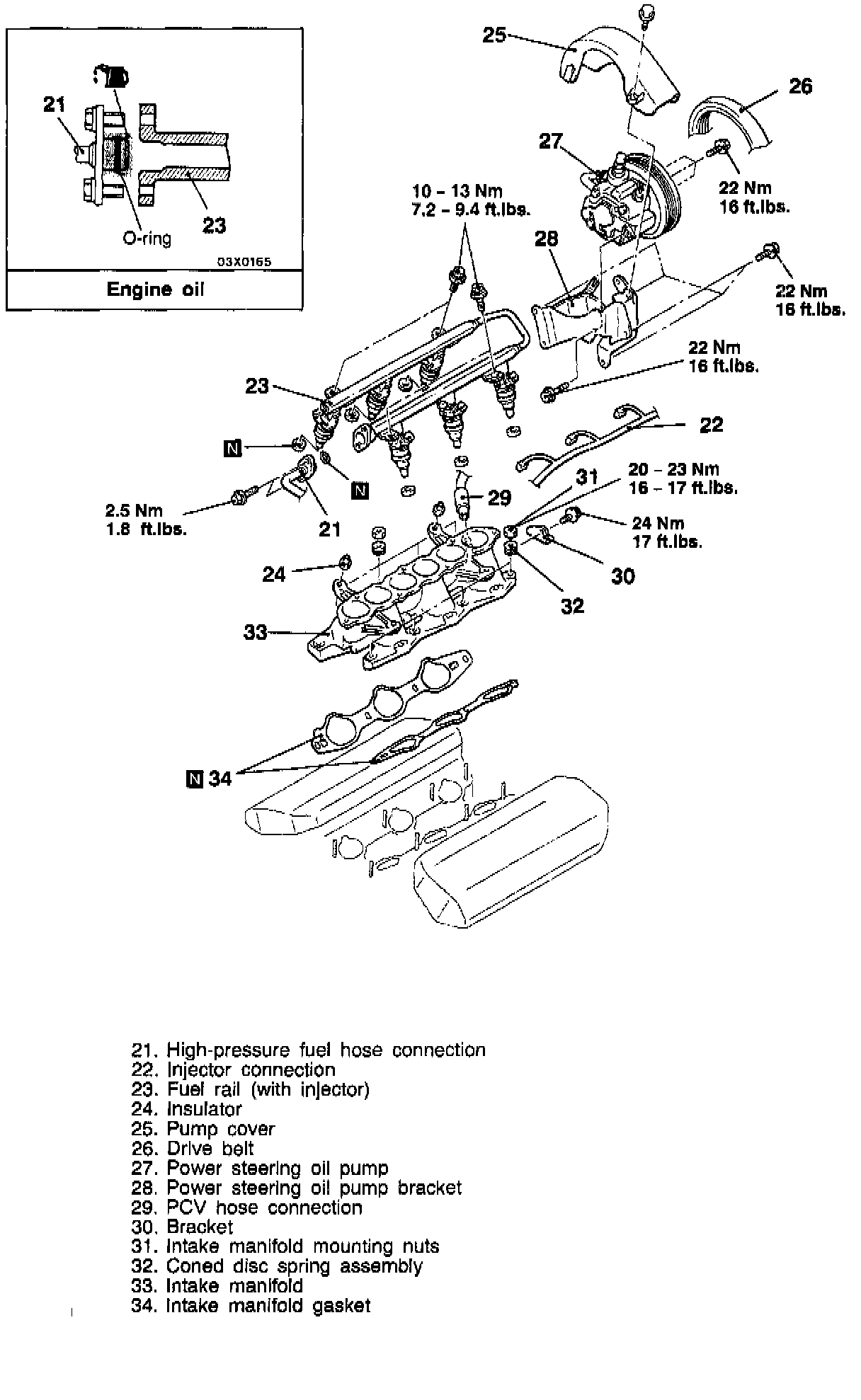

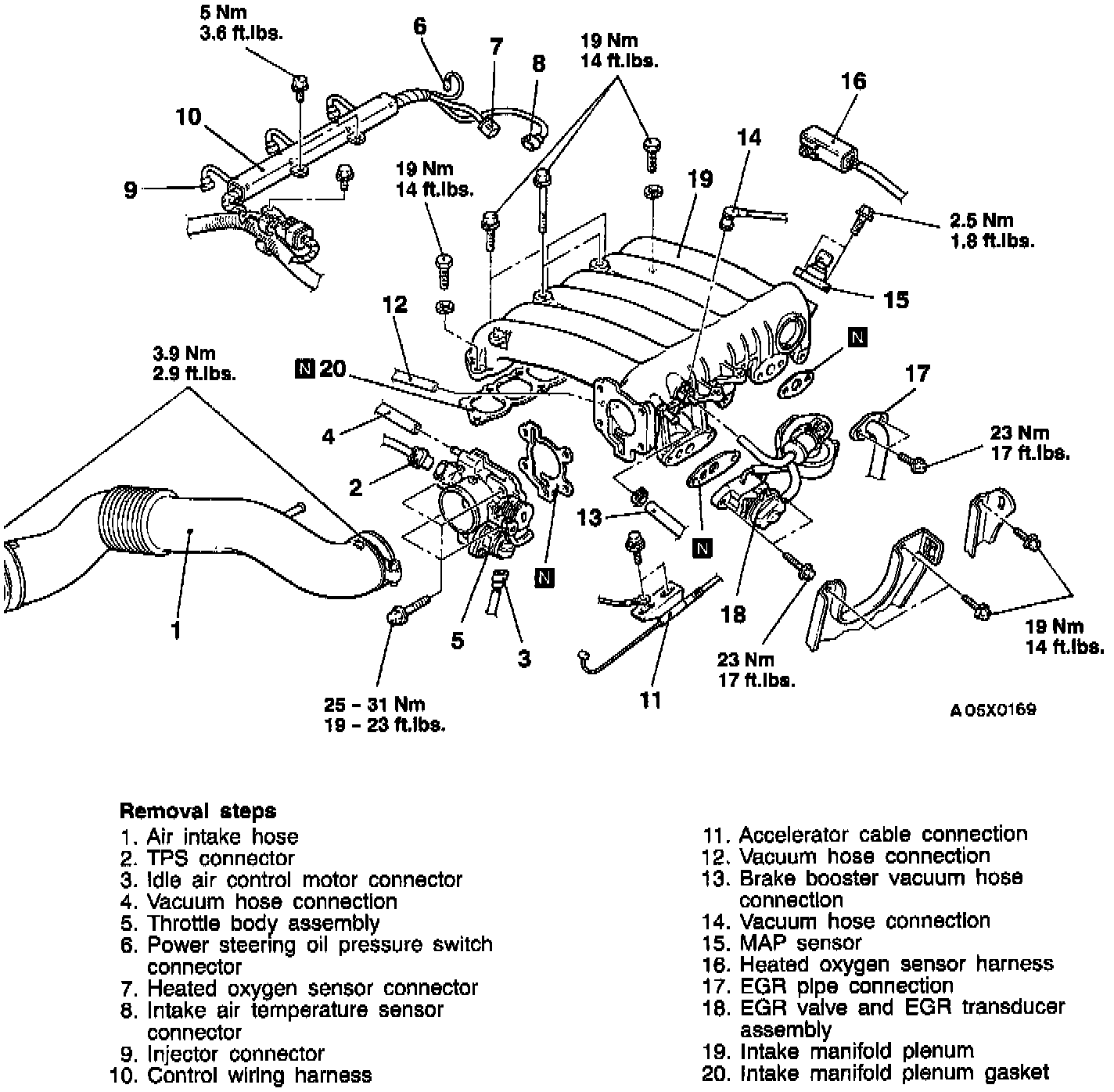

Intake Manifold: Service and Repair

REMOVAL AND INSTALLATION

Pre-removal Operation
- Under Cover Side Panel Removal
- Fuel Discharge Prevention

Post-installation Operation
- Accelerator Cable Adjustment
- Fuel Leakage Checking
- Drive belt Tension Adjustment
- Under Cover Side Panel Installation

REMOVAL SERVICE POINT

Power Steering Oil Pump
Remove the power steering oil pump with the hose attached.

NOTE Suspend the removed power steering oil pump (by using wire or similar material) at a place where no damage will be caused during removal/installation of the intake manifold.

INSTALLATION SERVICE POINTS

Intake Manifold Gasket Installation

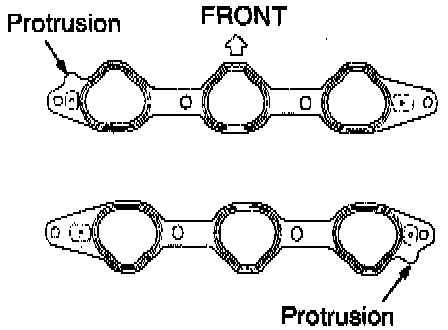

Install the gasket with the protrusions in the position illustrated.

Intake Manifold Mounting Nuts Installation

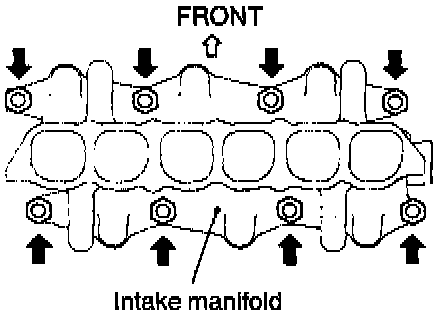

Tighten the intake manifold mounting nuts one bank after the other by the following procedure.
(1) Tighten the nuts in the front bank to 7 Nm (5.1 ft. lbs.)
(2) Tighten the nuts in the rear bank to 20 to 23 Nm (14 to 17 ft. lbs.)
(3) Tighten the nuts in the front bank to 20 to 23 Nm (14 to 17 ft. lbs.)
(4) Repeat steps (2) and (3) again in the same order.

Intake Manifold Plenum Gasket Installation

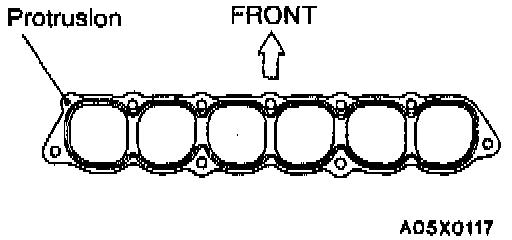

Install the gasket with the protrusions in the position illustrated.

INSPECTION
Check the following points. Replace apart if a problem is found.

Intake Manifold Plenum, Intake Manifold
1. Check for damage or cracking of any part.
2. Clogging of the negative pressure (vacuum) outlet port, or clogging of the gas passages.
3. Check direction of installation surface with straight edge and feeler gauge.

Standard value: 0.15 mm (0.006 inch) or less
Limit: 0.2 mm (0.008 inch)
