Radiator: Service and Repair

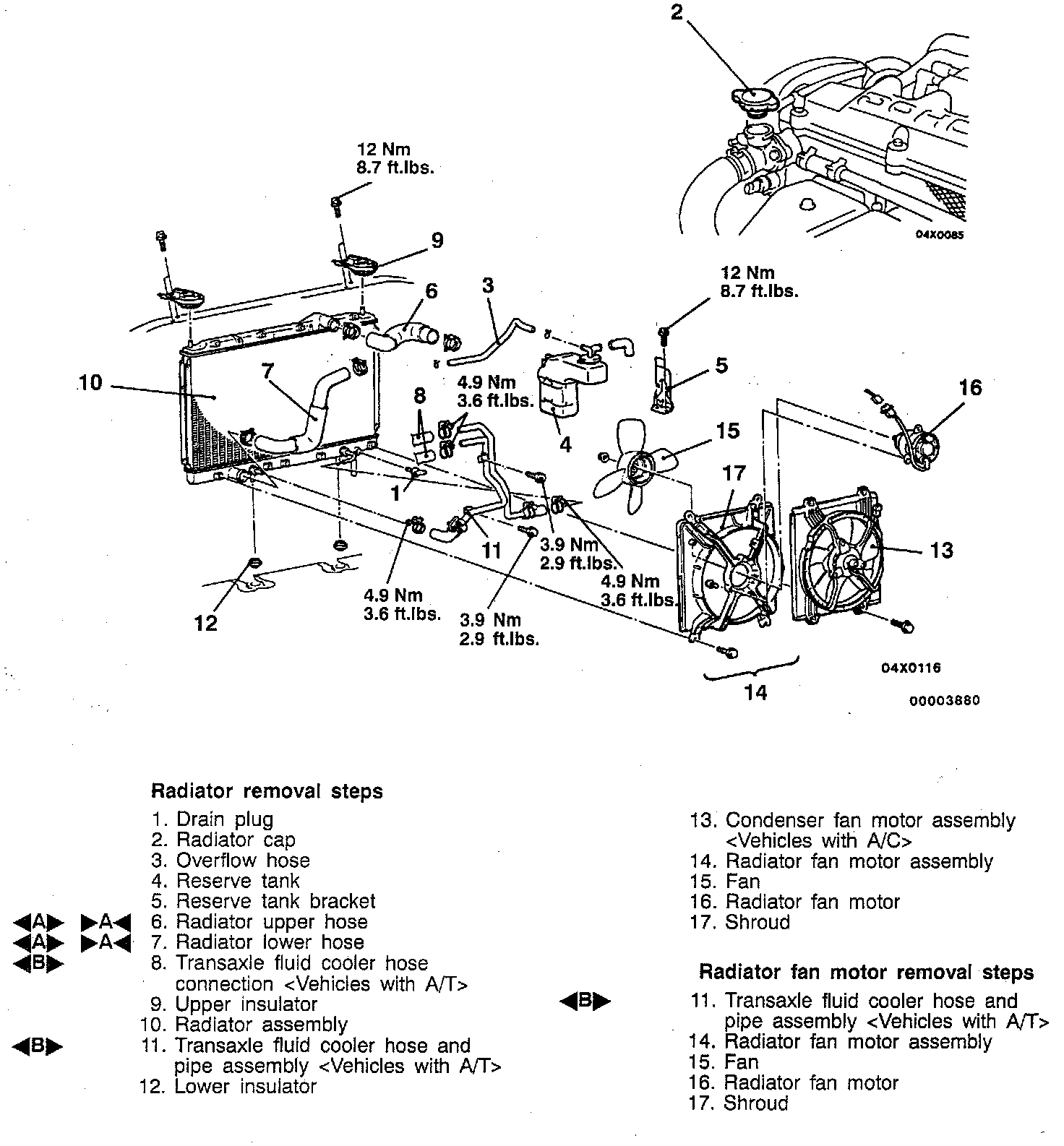

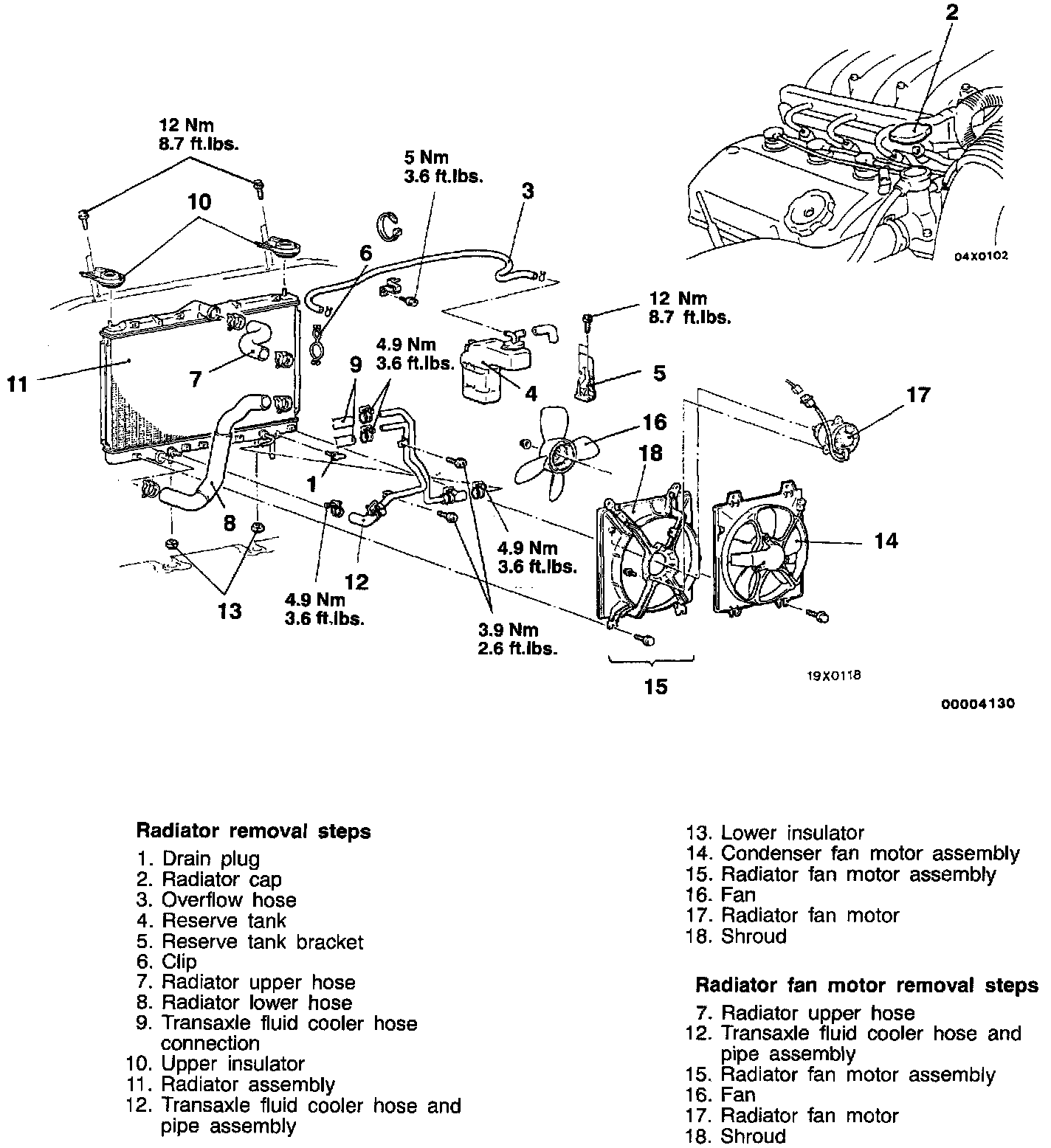

REMOVAL AND INSTALLATION

Pre-removal Operation
- Engine Coolant Draining

Post-installation Operation
- Engine Coolant supplying and checking
- A/T Fluid Checking and Refilling if Necessary

Removal Service Points





Radiator Upper Hose/radiator Lower Hose Disconnection

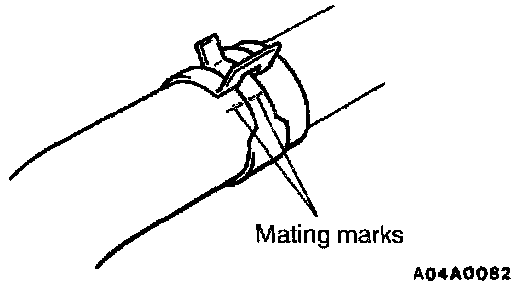

- After making mating marks on the radiator hose and the hose clamp, disconnect the radiator hose.

Transaxle Fluid Cooler Hose/transaxle Fluid Cooler Hose And Pipe Assembly Removal
- After removing the hose from the radiator, plug the hose and the radiator nipple to prevent dust or foreign particles from getting in.

Installation Service Point





Radiator Lower Hose/radiator Upper Hose Connection

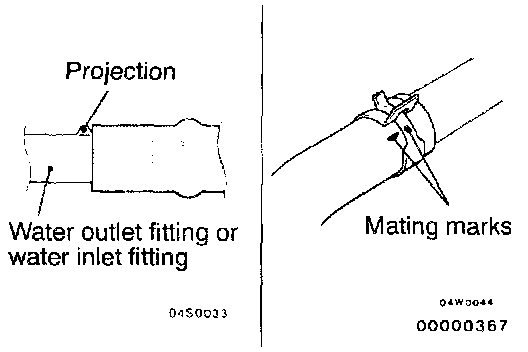

(1) Insert each hose as far as the projection of the water outlet fitting or water inlet fitting.
(2) Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
