A Connectors - Engine Compartment Harness

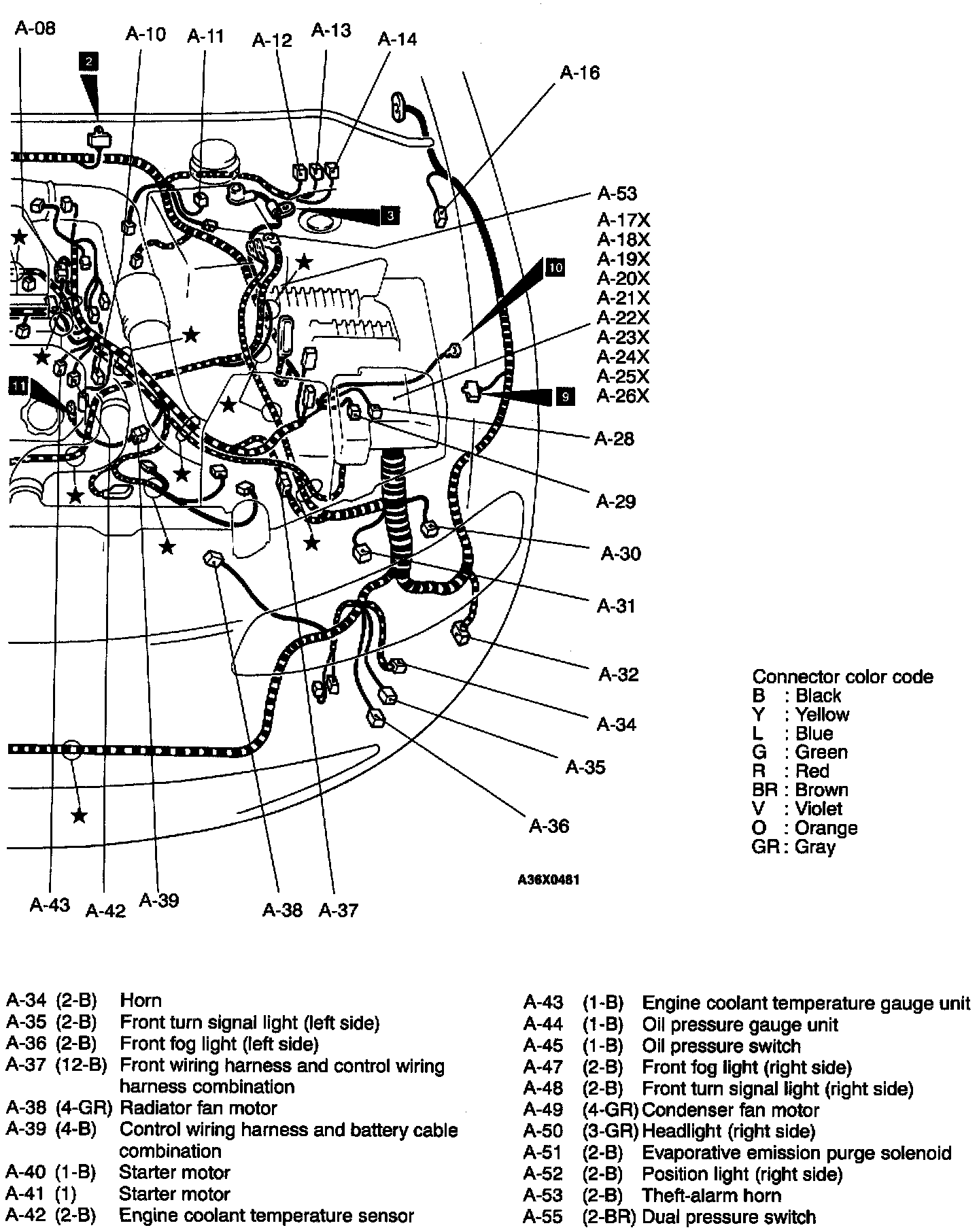

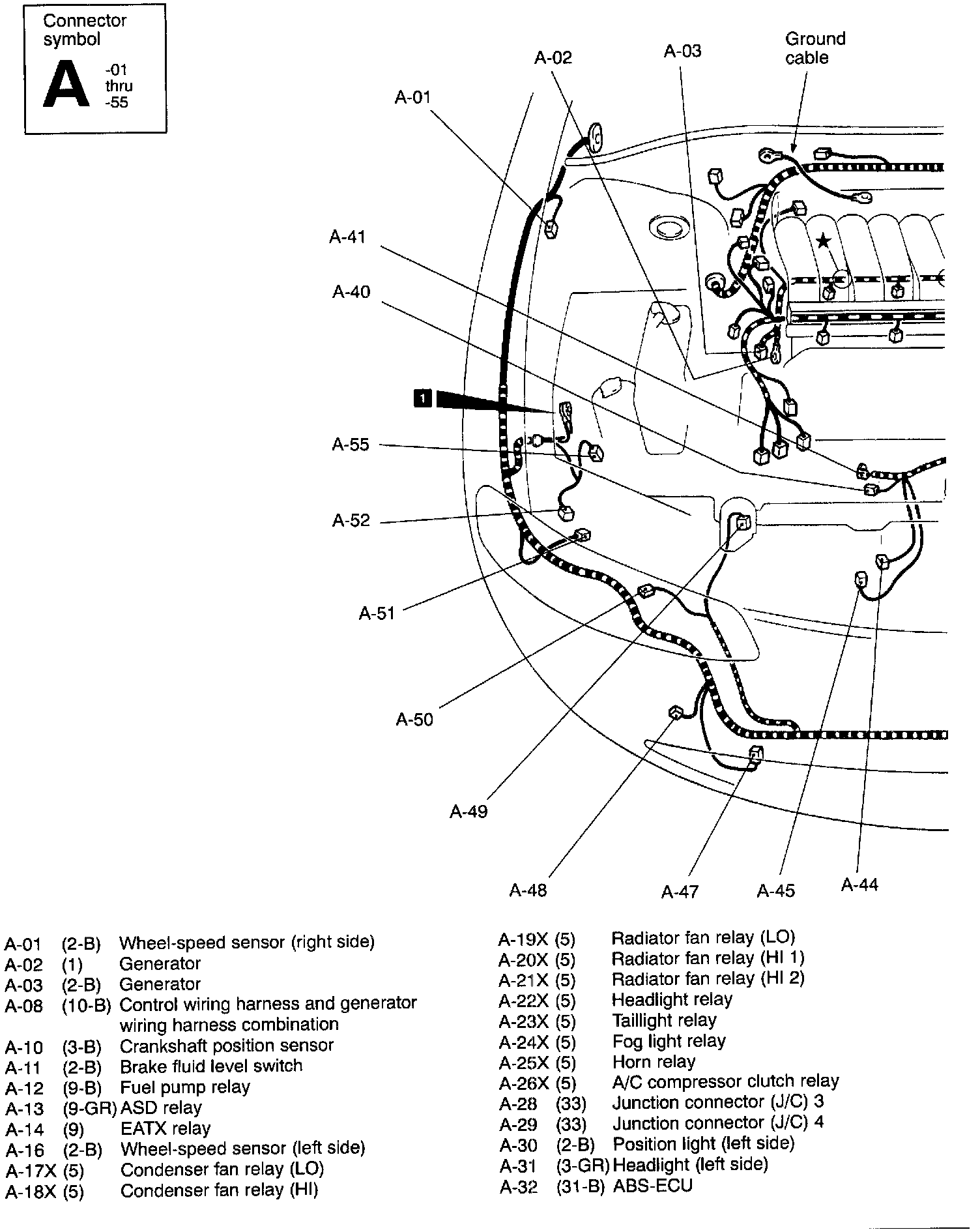

A Connectors - 01 Thru 55:




A Connectors - 01 Thru 55:

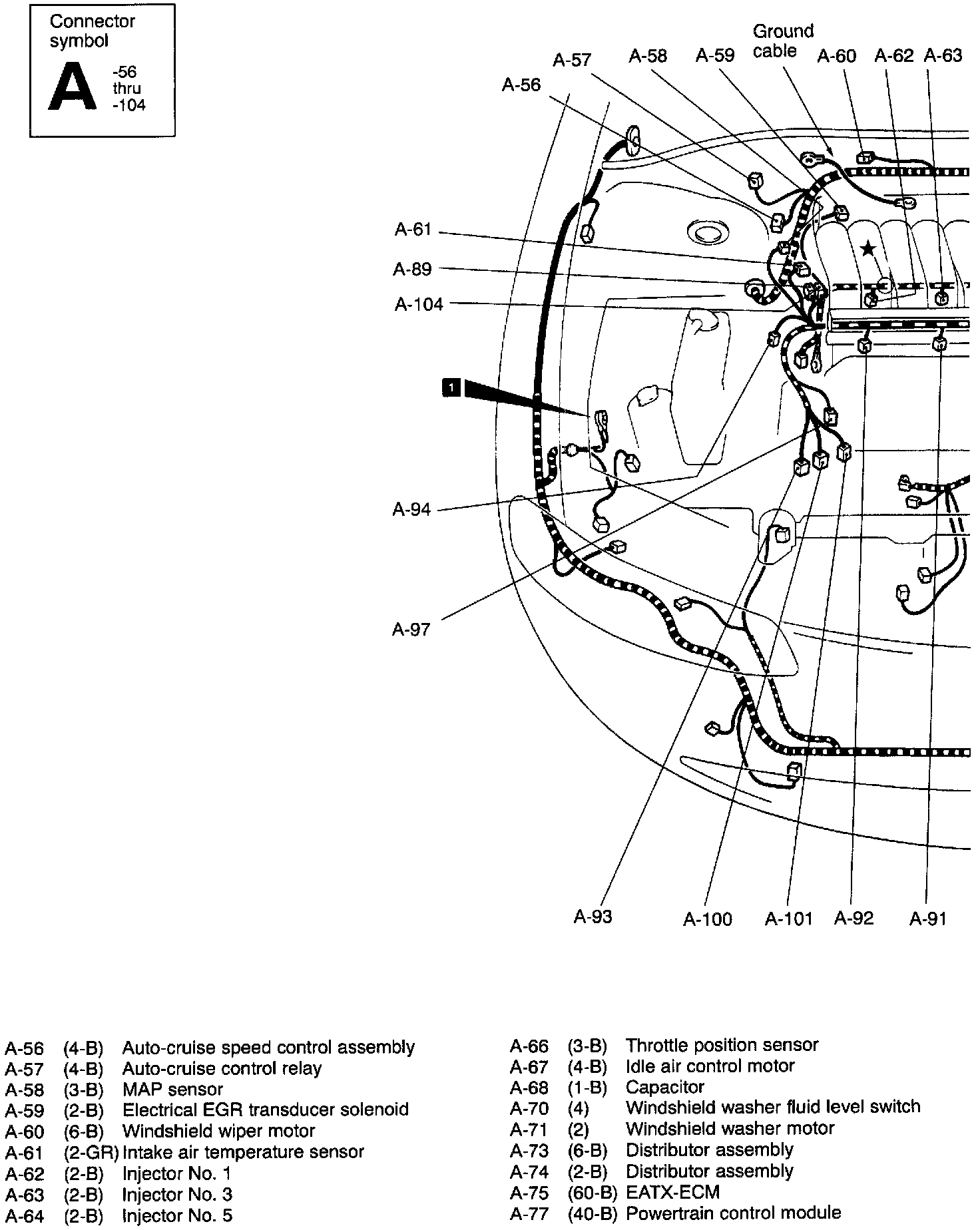

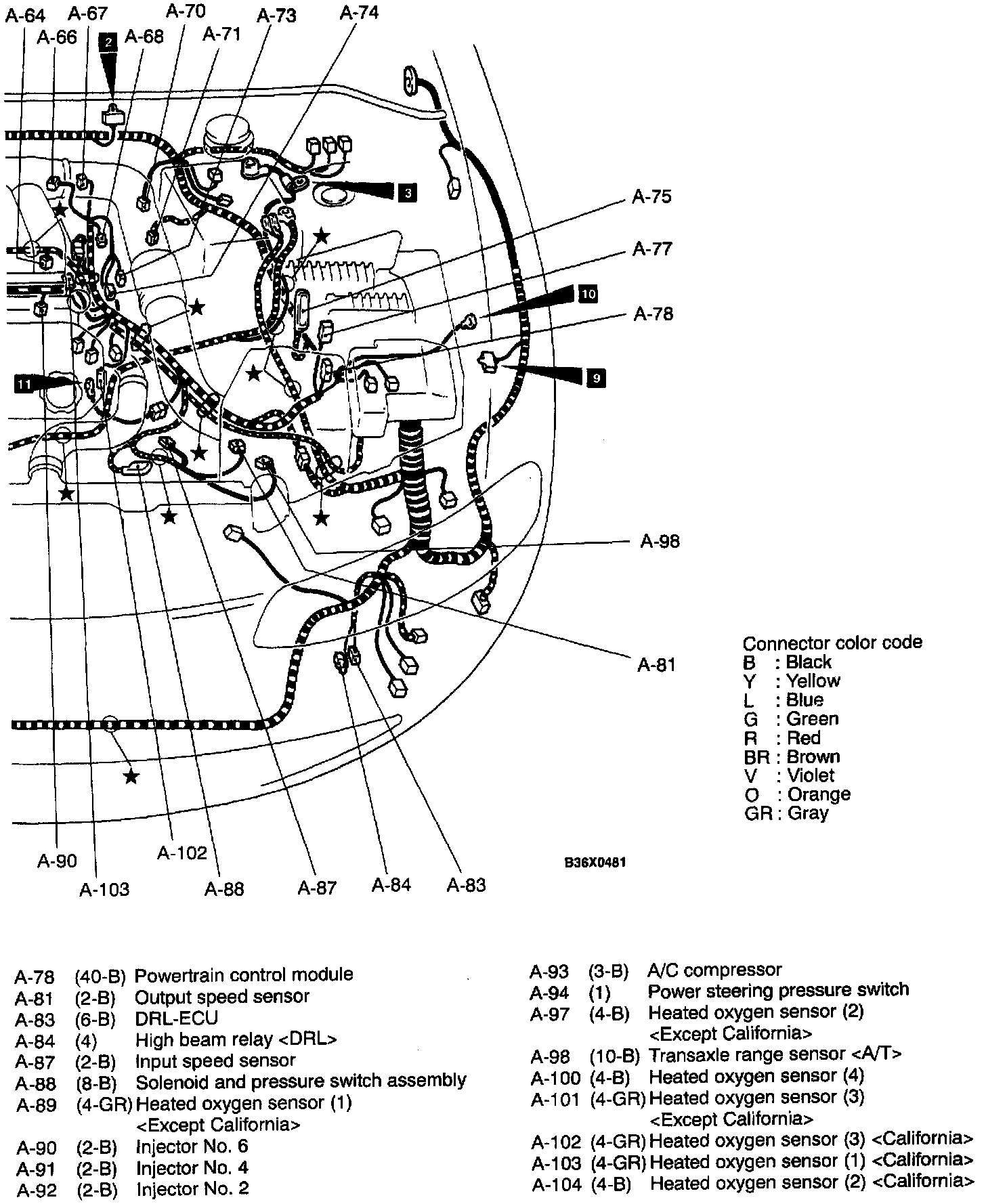

A Connectors - 56 Thru 104:




A Connectors - 56 Thru 104:
