Home >> Chrysler >> 1998 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control System Relay, A/T

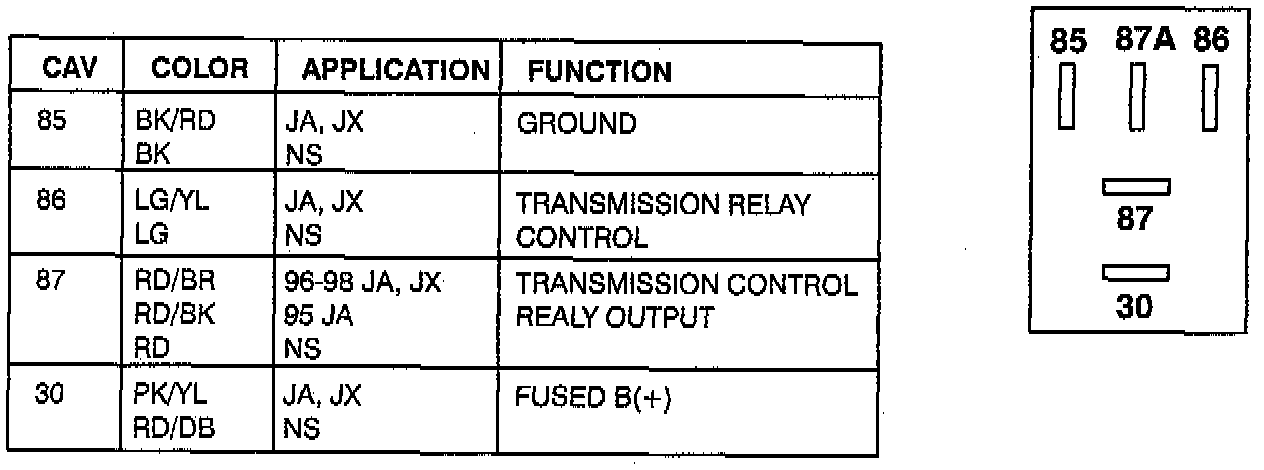

Transmission Control System Relay, A/T

A604 (41TE) 4 Speed Transaxle:
