Cruise Control Switch
Cruise Control Switch

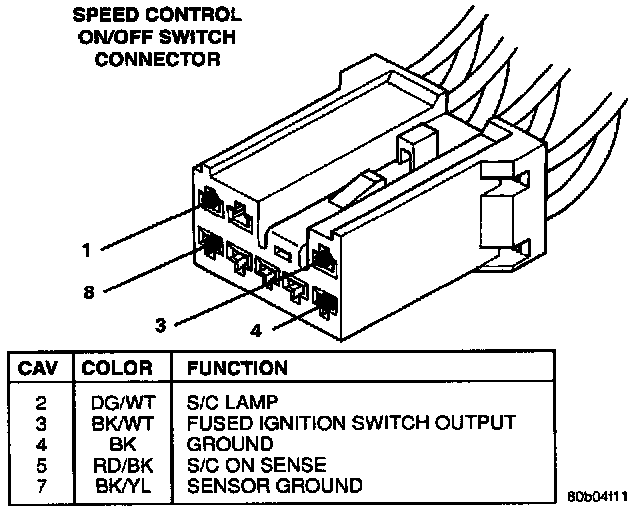

Speed Control On/Off Switch Connector:

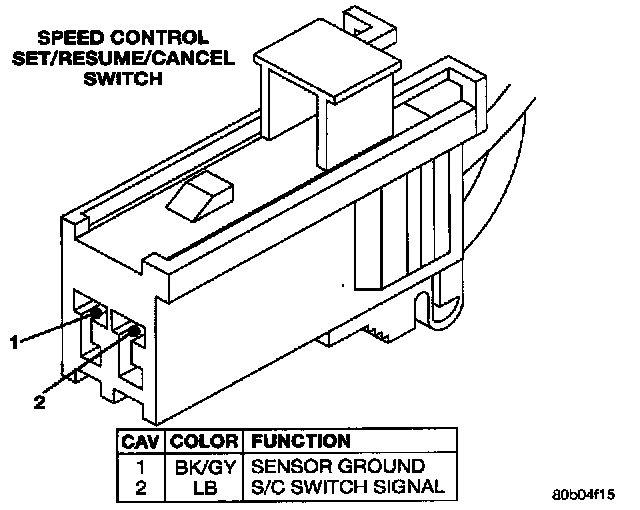

Speed Control Set/Resume/Cancel Switch:
