Solenoid Locations

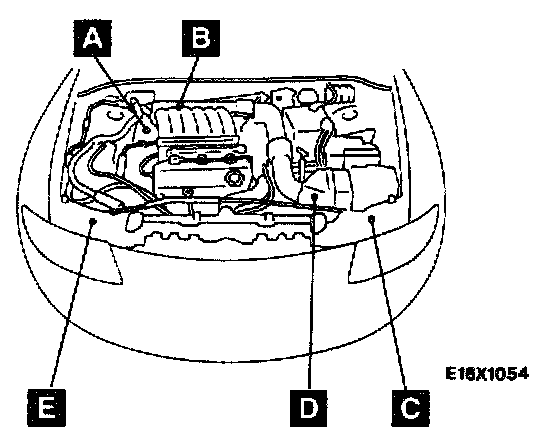

Solenoid And Solenoid Valves - Overall View:
Sensor Location Overviews:
Solenoid And Solenoid Valve Views A - E:
Name Symbol
Auto-cruise Speed Control Assembly A
Electrical EGR Transducer Solenoid B
Evaporative Emission Purge Solenoid E

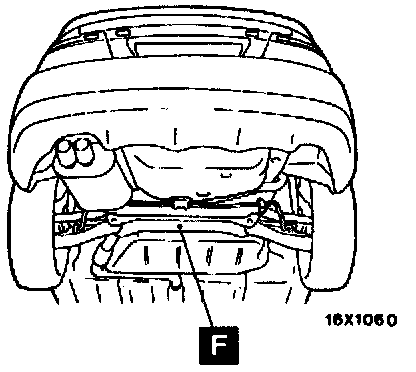

Evaporative Emission Ventilation
Solenoid F
Hydraulic Unit (With built-in
Solenoid Valve)
Solenoid And Pressure Switch
Assembly D
