Cruise Control
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
Component Tests
1.

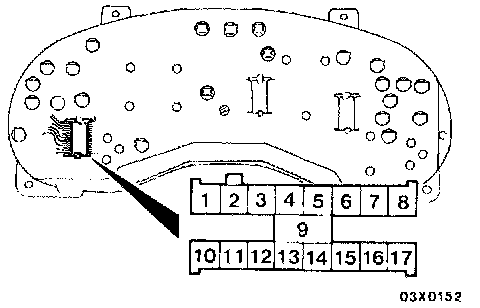

Remove the combination meter.
2.
Check the continuity between terminals (10) and (16).
-
If there is no continuity, replace the auto-cruise control indicator.
